• : Uses unleaded solder.
• See page 34 for Circuit Boards Location.

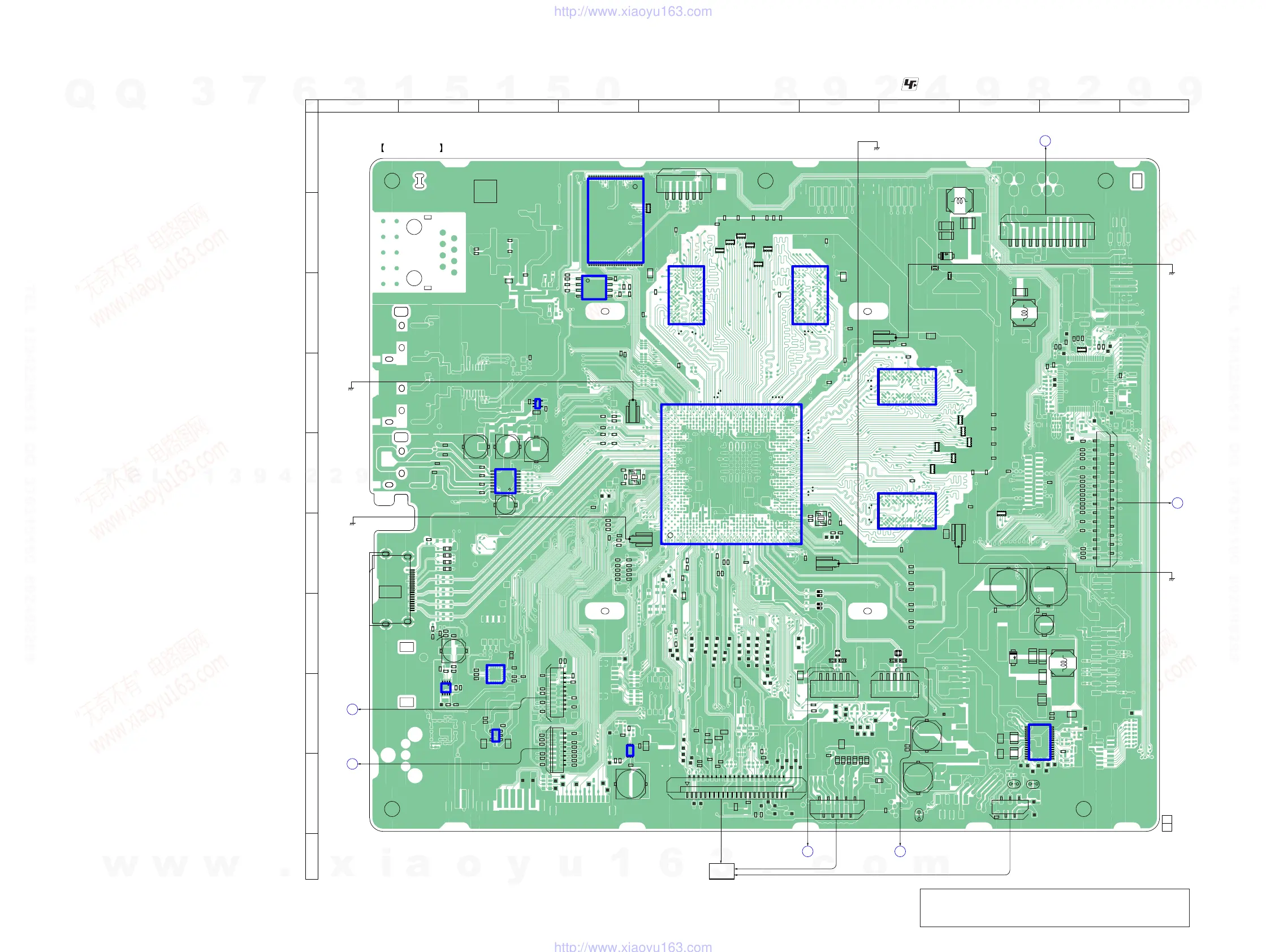

5-20. PRINTED WIRING BOARD - MB-134 Board (Component Side)-
Note: IC101, IC104, IC105, IC204, IC205, IC307, IC501 and IC502
on the MB-134 board cannot exchange with single. When these
parts are damaged, exchange the entire mounted board.
