HBD-E370/E470/E570/E870/T57

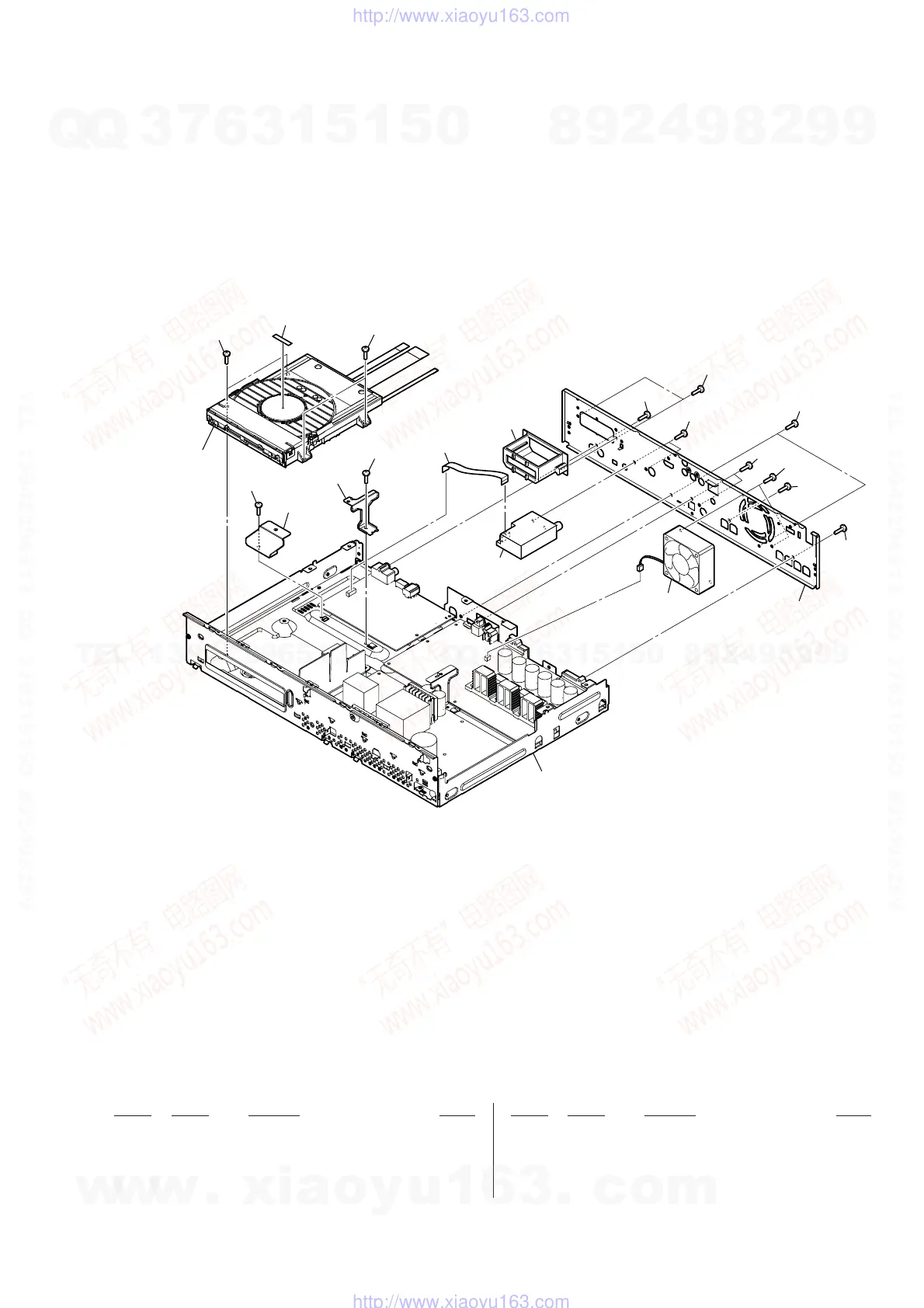

6-3. BACK PANEL SECTION
101 3-077-331-21 +BV3 (3-CR)
102 1-828-954-51 WIRE (FLAT TYPE) (9 CORE) (US, CND)
102 1-828-964-51 WIRE (FLAT TYPE) (11 CORE) (AEP, UK)
103 4-161-658-01 CARD SLOT (S-AIR UME)
104 3-077-331-11 +BV3 (3-CR)
105 3-077-331-01 +BV3 (3-CR)
M3001 1-787-931-11 DC FAN
TU1 1-693-781-11 TUNER (FM) (US, CND)
TU1 1-693-787-11 TUNER (FM) (AEP, UK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
TU1
M3001
101
101
101
101
102
103
104
104
105
101
101
not supplied
not supplied
not supplied
MAIN board section
BD drive section
(BPX-5)
105
105
105
