HCD-EC68P/EC78P
14

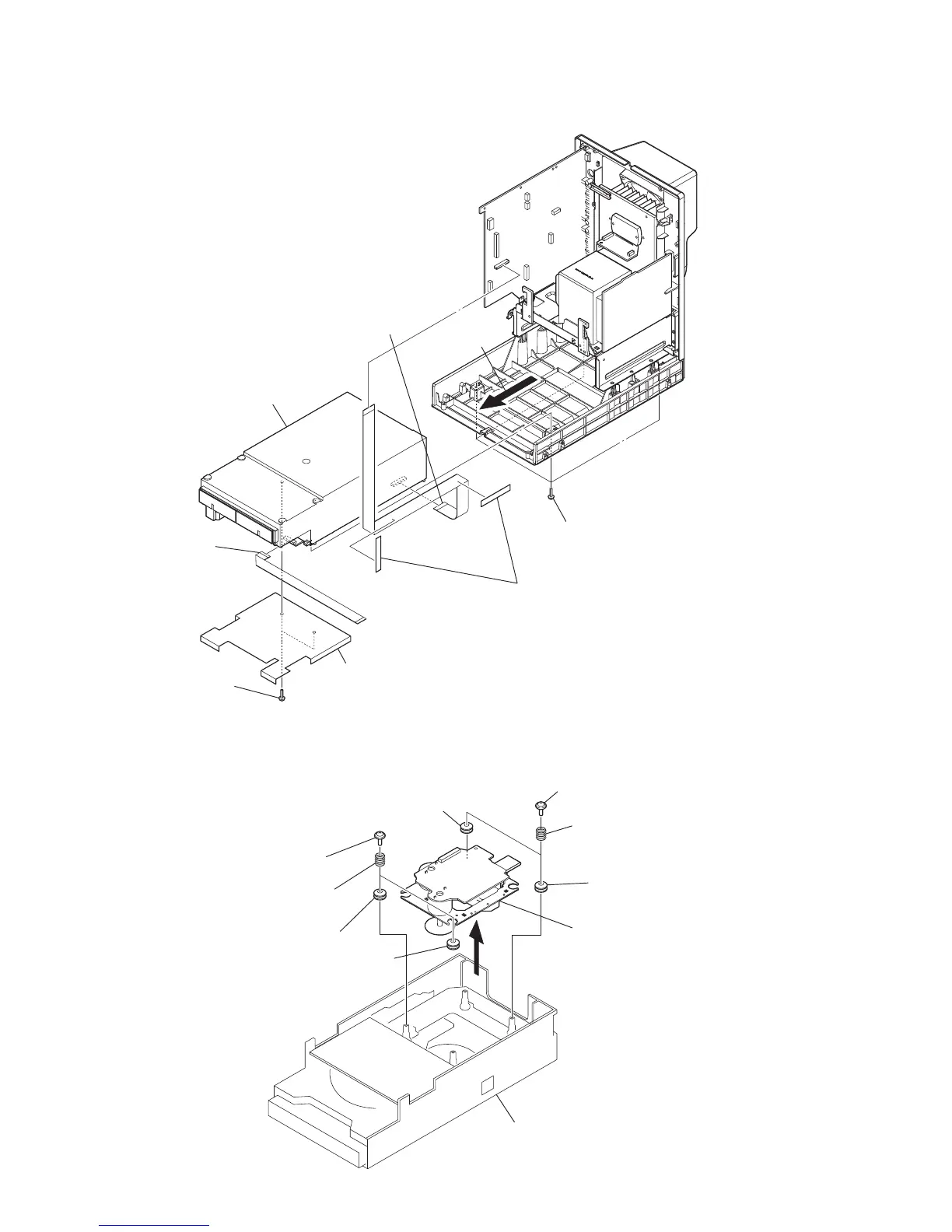

3-8.
3 CD MECHANISM BLOCK (EC78P: UK)
3-9.
BASE UNIT (EC78P: UK)
four
screws
(BVTP3
×
10)
two
tapes
flexible flat cable
(21
core)
(MAIN board: CN608/
CD board: CN201)
flexible flat cable
(13
core)
3 CD mechanism block
cover
(DLM3)
two screws (BVWH)
Note:
When installing the CD mechanism section,
install two tapes for prevention of noise.
insulator
insulator
base
unit
insulator
insulator
two
springs
(insulator)
two screws (PTPWHM2.6)
two screws (PTPWHM2.6)
– Bottom view –
two springs (insulator)
3 CD mechanism block
13
15
