Sony HCD-ED1A Service Manual

– 46 –

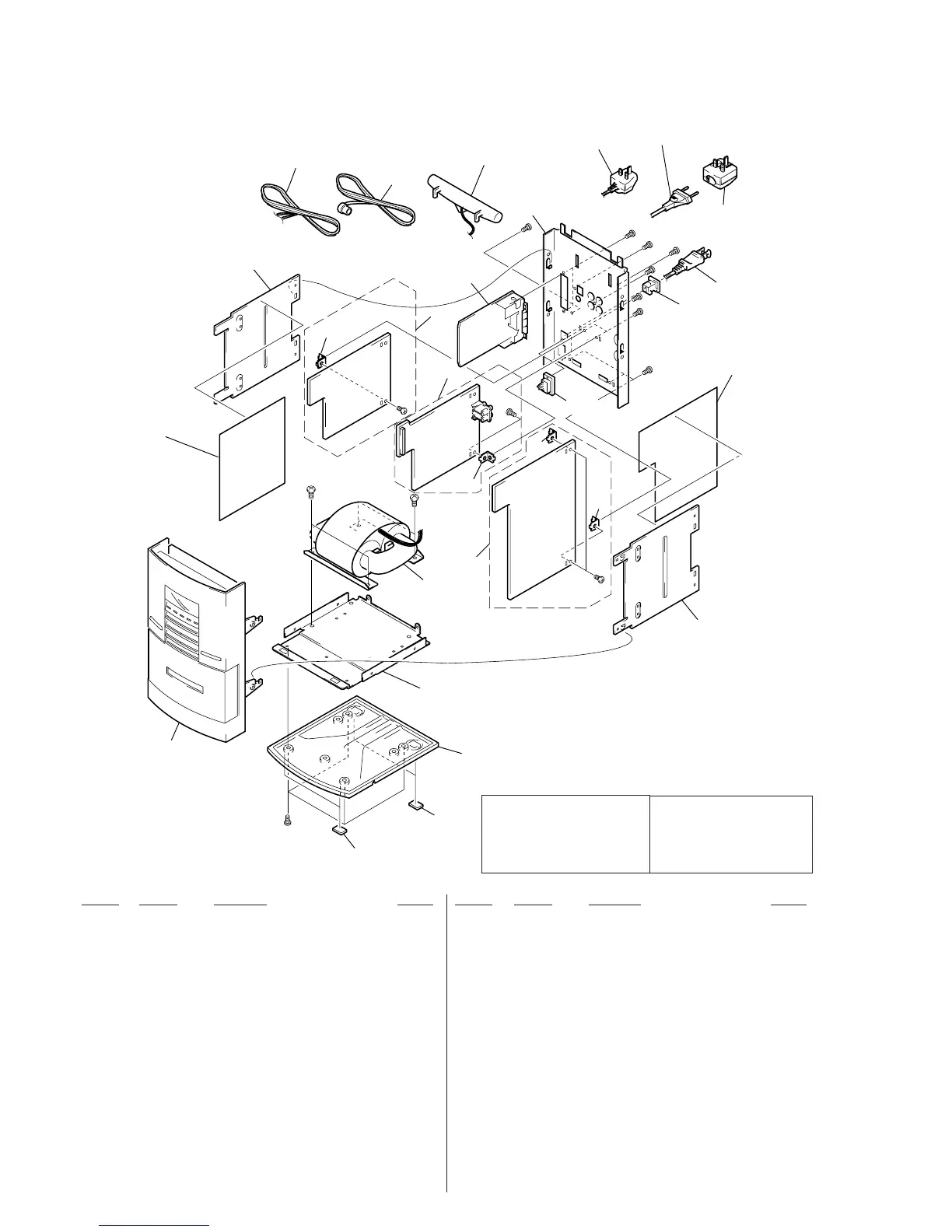

6-2. REAR PANEL SECTION
54 (US,CND)
54 (UK)
63 (HK)
54 (EXCEPT
US,CND,UK)
51
52
53
64
66
65
55
62
62
62
62
56
57
58
59
60
61
61
51
not supplie
d
not supplied
#6
#7
#6
#6
#7
#7
#7
#7
#8
#7
#7
#7
#8
T501
S501 (MY,
SP,HK)
FRONT PANEL
#13
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 58 A-4407-239-A VOL/POWER BOARD, COMPLETE
(AEP,UK,EE,CIS)
* 58 A-4407-240-A VOL/POWER BOARD, COMPLETE (US,CND)
* 58 A-4407-241-A VOL/POWER BOARD, COMPLETE (MY,SP,HK)
* 59 4-997-364-01 BOTTOM BOARD
60 4-997-352-01 BOTTOM COVER
61 4-997-366-01 RUBBER FOOT
* 62 4-997-378-01 PC BOARD BRACKET
! 63 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
64 X-4949-451-1 AM ANT SUB ASSY
65 1-501-659-11 ANTENNA (FM) (US,CND,MY,SP,HK)
66 1-501-985-11 LEAD, ANTENNA (AEP,UK,EE,CIS)
! S501 1-771-308-11 SELECTOR, POWER (MY,SP,HK)
! T501 1-431-697-21 TRANSFORMER, POWER (AEP,UK,EE,CIS)
! T501 1-431-697-31 TRANSFORMER, POWER (US,CND)
! T501 1-431-697-41 TRANSFORMER, POWER (MY,SP,HK)
* 51 4-997-363-01 SIDE BRACKET
52 1-693-400-21 FM/AM TUNER (AEP,UK,EE,CIS)
52 1-693-400-31 FM/AM TUNER (US,CND)
52 1-693-400-41 FM/AM TUNER (MY,SP,HK)
* 53 4-997-368-11 REAR PANEL (AEP)
* 53 4-997-368-21 REAR PANEL (UK)
* 53 4-997-368-31 REAR PANEL (EE,CIS)
* 53 4-997-368-41 REAR PANEL (US,CND)
* 53 4-997-368-51 REAR PANEL (MY,SP)
* 53 4-997-368-61 REAR PANEL (HK)
! 54 1-551-478-00 CORD, POWER (POLAR.SPT-2)(US,CND)
! 54 1-555-750-00 CORD, POWER (AEP,EE,CIS,MY,SP,HK)
! 54 1-751-535-11 CORD, POWER (UK)
55 4-997-358-01 AC CORD BUSHING
* 56 A-4407-243-A TAPE PREAMP BOARD, COMPLETE
* 57 A-4407-242-A FUN/SURROUND BOARD, COMPLETE
Les composants identifiés par
une marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
