– 1 –
US Model
Canadian Model
AEP Model
UK Model
E Model
SERVICE MANUAL
HCD-ED1
SUPPLEMENT-1
File this supplement with the service manual.

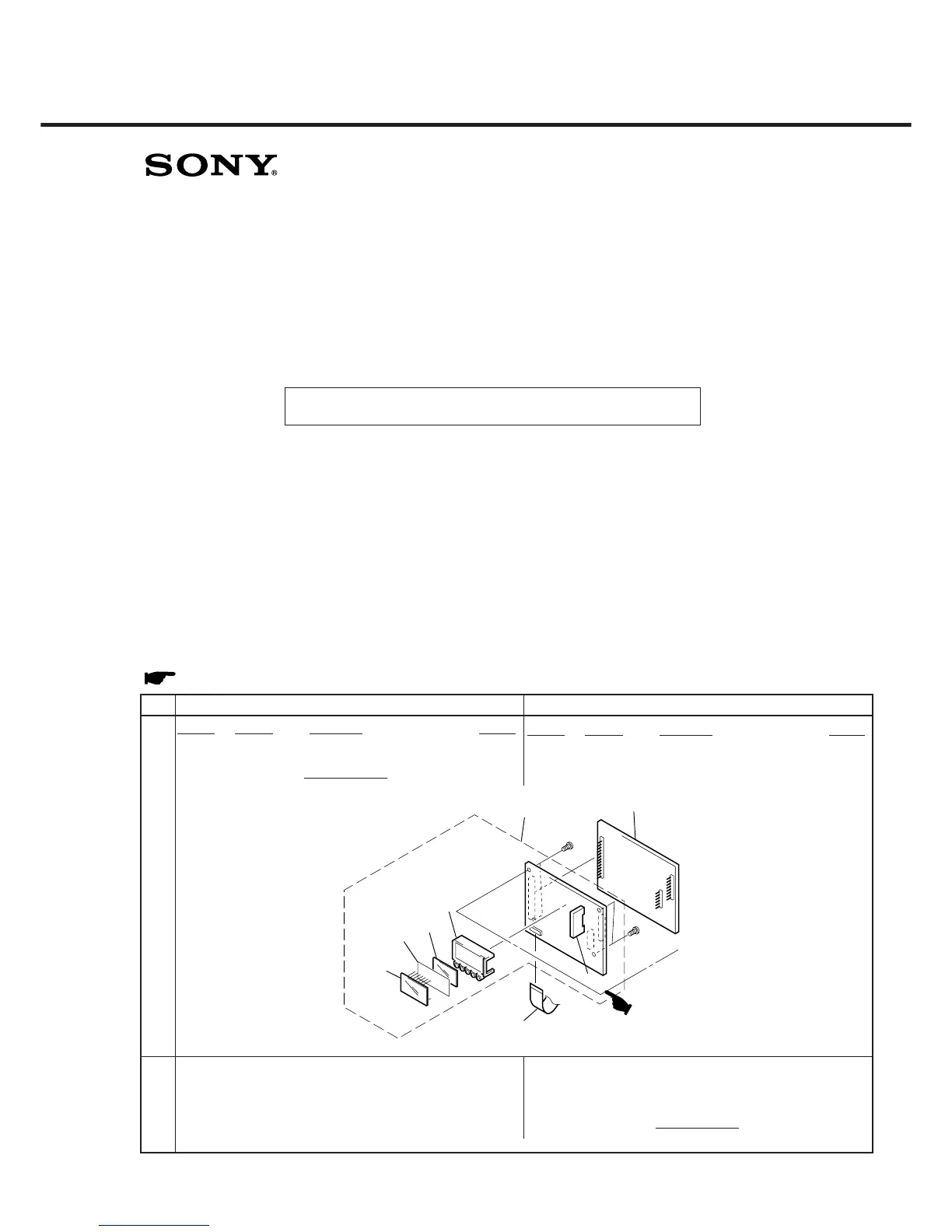

• CHANGES OF LAMP
(ENG-98003)
DIFFERENCE TABLE
: Indicates changed portion.
Ref. No. Part No. Description Remark
*** EXPLODED VIEWS ***
FORMER TYPE (use lamp)
Page
47
Ref. No. Part No. Description Remark
*** EXPLODED VIEWS ***
*116 1-670-517-11 LED BOARD
NEW TYPE (use LED)
52
*** ELECTRICAL PARTS LIST ***
*** DISPLAY BOARD ***
PL201 1-517-743-11 LAMP
*** ELECTRICAL PARTS LIST ***
*** DISPLAY BOARD ***
• The lamp on the DISPLAY board was changed to a type which use LED from following
serial numbers.
MODEL : Serial numbers
US, CND Model : 8107801 onward
AEP Model : 5155844 onward
: 4107801 onward
UK Model : 6107951 onward
EE, CIS Model : 7104797 onward
MY, SP Model : 3153682 onward
HK Model : 3105301 onward
• Abbreviation
CND : Canadian model
EE : East European model
MY : Malaysia model
SP : Singapore model
HK : Hong Kong model
Sony Corporation
Home A&V Products Company9-922-706-81
(SP)
98D091686-1
Printed in Japan © 1998. 4
Published by General Engineering Dept.
(Shibaura)
104
105
112
116
113
114
106
#7
Z201
#7
1998. 04
To Next Page
