HCD-FX200/FX205
4
CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, the electrical discharge is necessary for
the electric shock prevention.

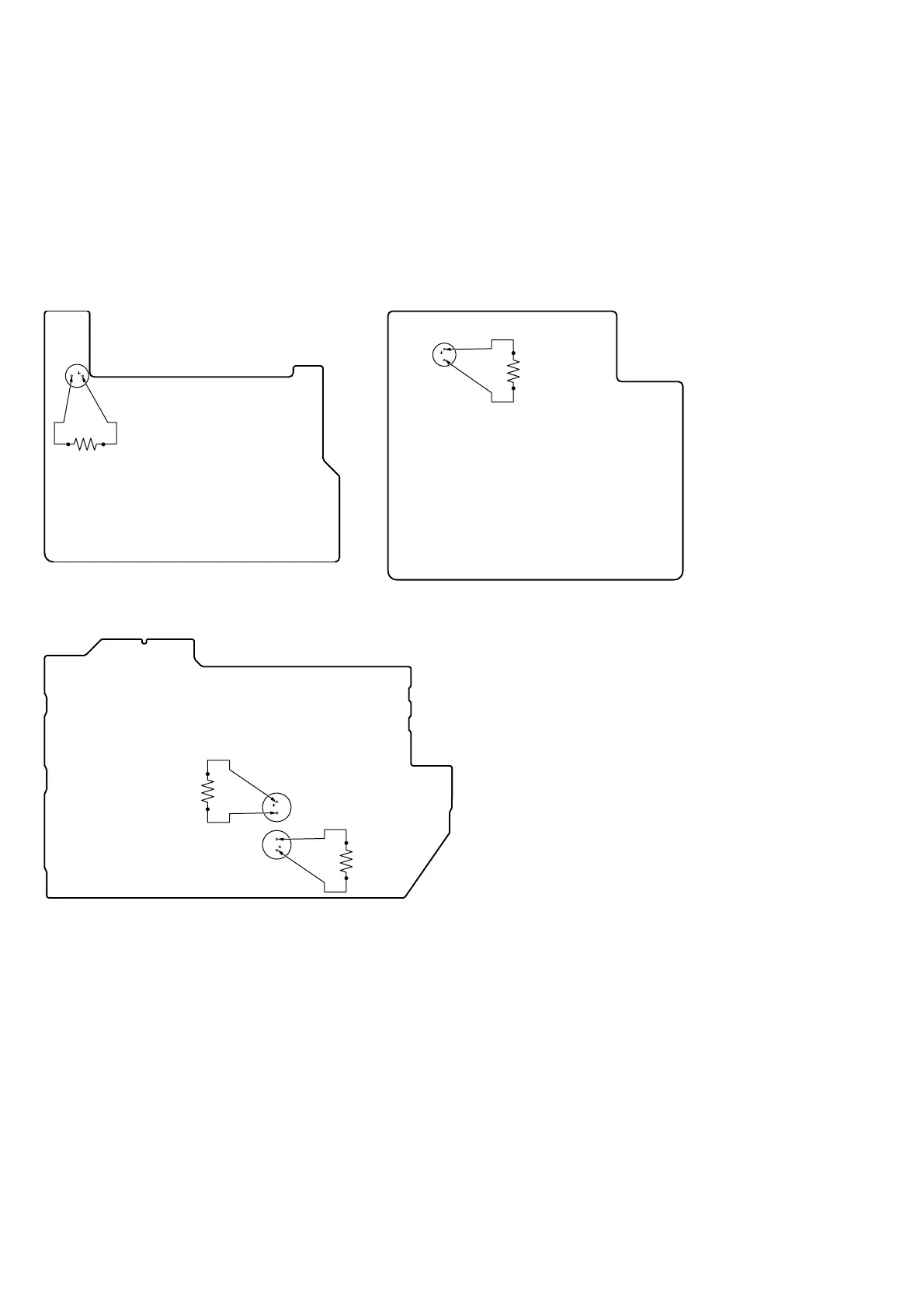

Connect the resistors referring to the fi gure below.
• PT board (C905) (Except 120V AC area in E, Saudi Arabia,
Chilean and Peruvian models only)
• PT-SW board (C905) (120V AC area in E, Saudi Arabia, Chil-
ean and Peruvian models only)
• MAIN board (C903, C904) (All models)
Both ends of respective capacitors.
– PT Board (Conductor Side) – – PT-SW Board (Conductor Side) –
– MAIN Board (Conductor Side) –
800 :/2 W
800 :/2 W
800 :/2 W
800 :/2 W
C905
C905
C903
C904
Ver. 1.1
