HCD-LX7/LX8
29
29

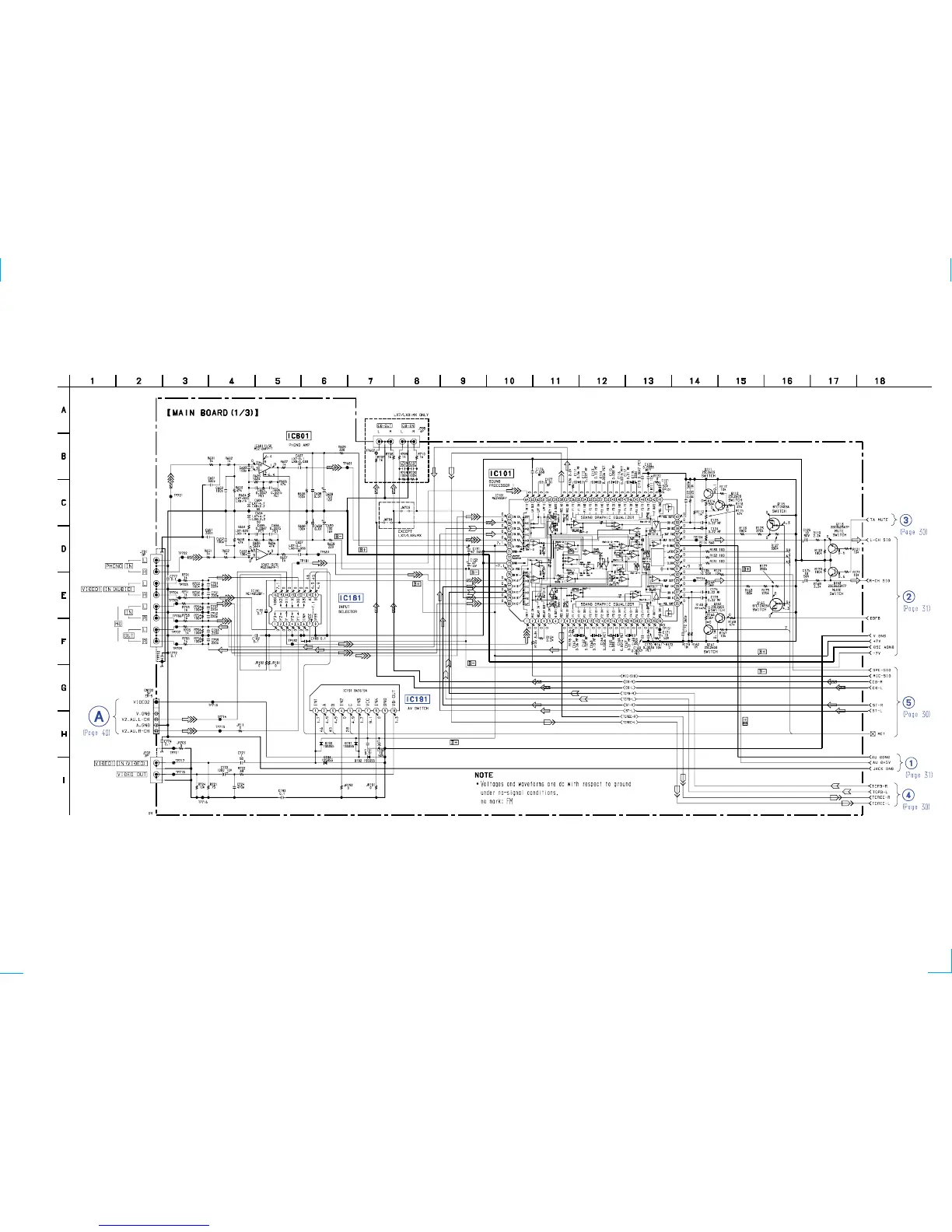

6-6. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –
• See page 50 for IC Block Diagrams.
MICON,
INTERFACE
