58

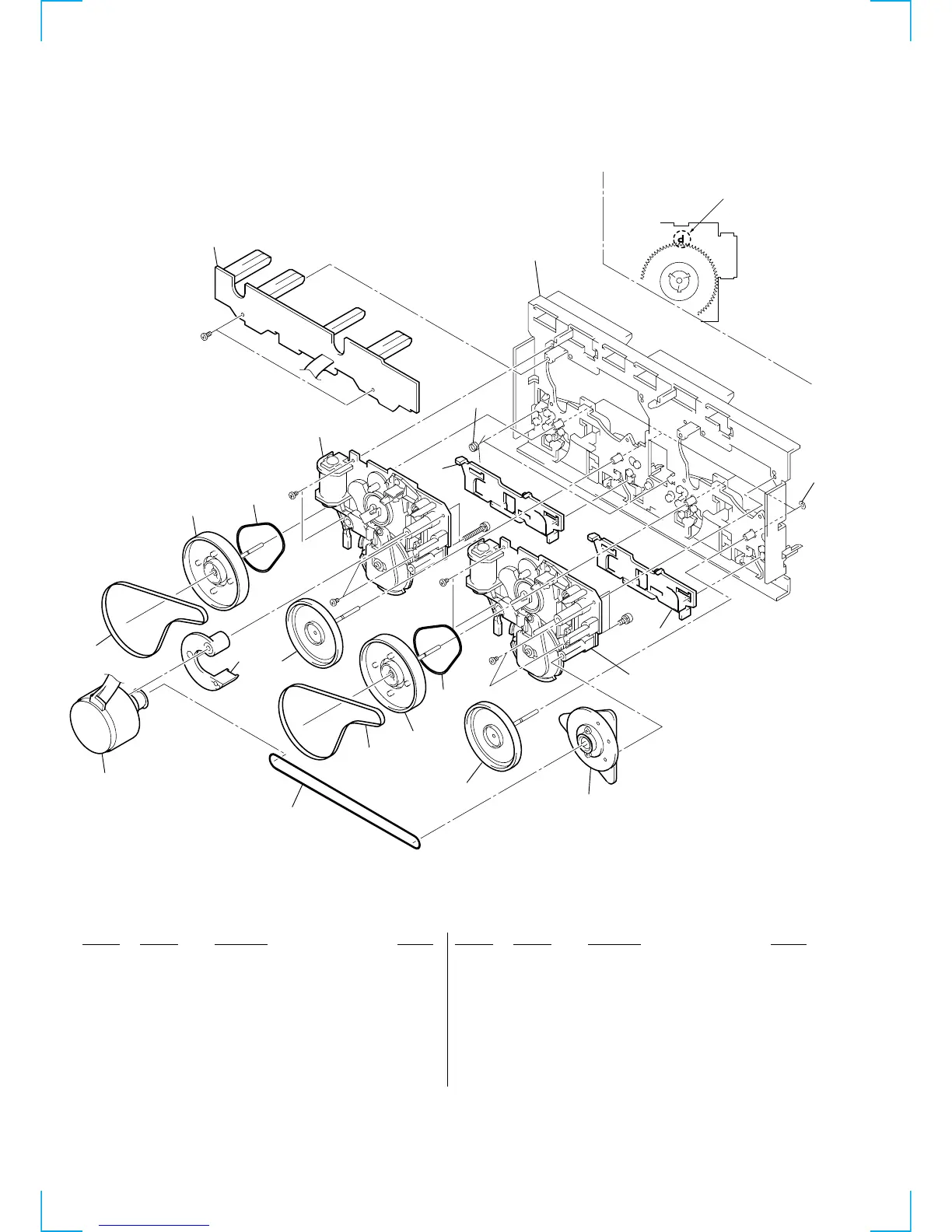

7-6. TC MECHANISM SECTION 2 (TCM230PWR1)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 451 X-3374-214-1 CASSIS ASSY, MAIN
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-016-568-01 BRACKET (MOTOR)
455 X-3374-075-5 FLYWHEEL (FWD) ASSY
456 X-3374-076-1 FLYWHEEL (REV) ASSY
457 X-3374-157-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR)
459 A-2004-630-A MECHANICAL BLOCK ASSY (230PWR1)
460 3-016-566-01 SLIDER, REVERSE
* 461 A-2007-800-A LEAF SW BOARD, COMPLETE
462 3-016-575-01 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER
M1 A-2004-628-A MOTOR ASSY, CAPSTAN
451
452
452
453
454
455
455
456
456
457
458
458
459
459
460
460
461
462
463
M1
#10
#5
#11
#10
#10
#10
#10
Parts with “P” mark: 230PWR1
