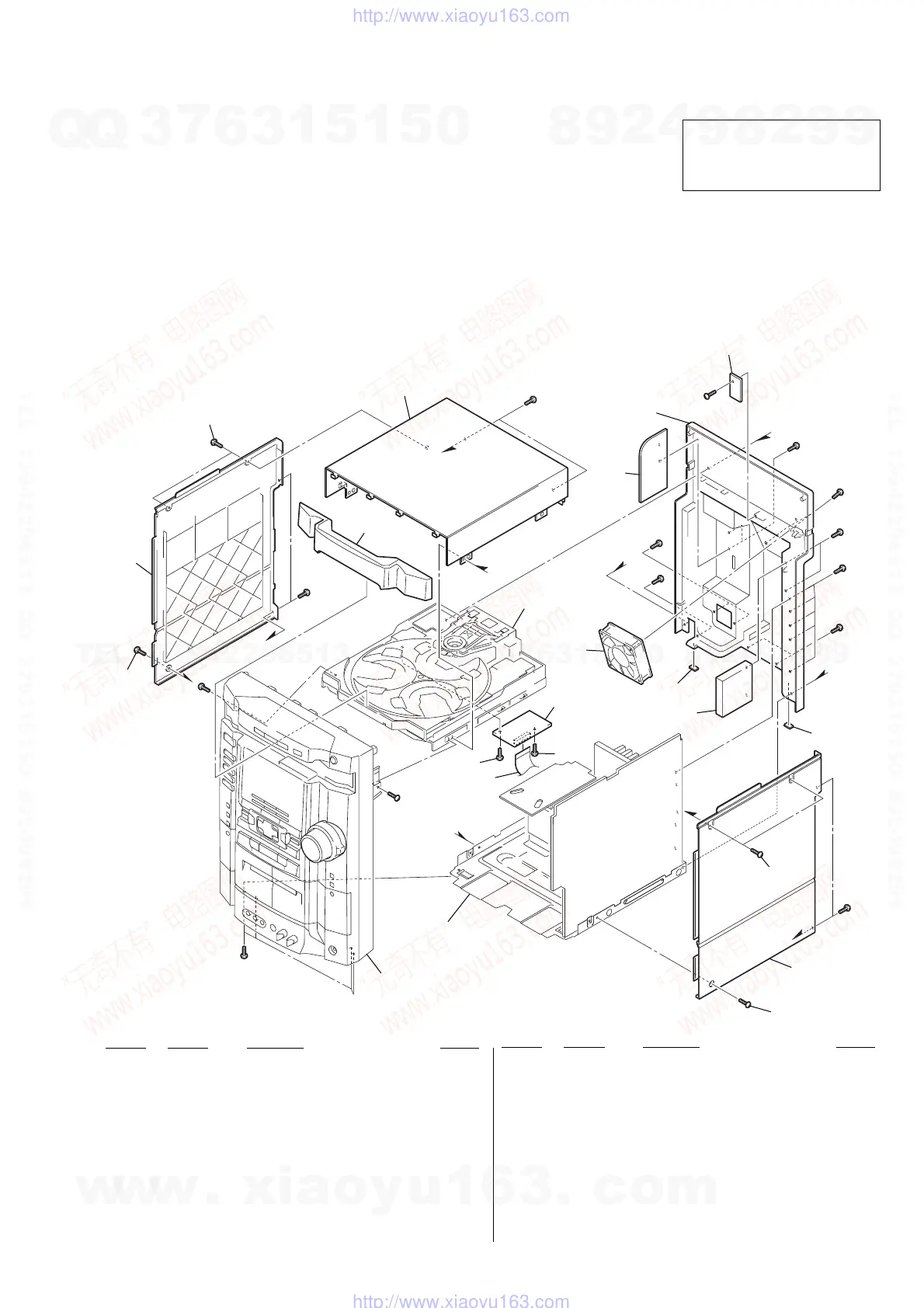

8-1. PANEL SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-363-099-41 SCREW (CASE 3 TP2)
2 4-239-740-01 SIDE PANEL (L)
3 4-237-760-31 LOADING PANEL (HCD-RV7)
3 4-237-760-41 LOADING PANEL (HCD-RV8)
4 4-239-777-01 TOP CASE
5 A-4727-568-A SUB-TRANS BOARD, COMPLETE
(HCD-RV7: E, SP, MY/HCD-RV8: E, SP, MY)
5 A-4728-130-A SUB-TRANS BOARD, COMPLETE
(HCD-RV7: TH)
5 A-4729-924-A SUB-TRANS BOARD, COMPLETE
(HCD-RV7: EA/HCD-RV8: EA)
6 1-683-542-11 SENSOR BOARD
7 4-225-252-01 CUSHION (FOOT)
8 1-693-572-71 TUNER PACK (FM/AM)
9 4-239-735-21 SIDE PANEL (R)
10 4-951-620-01 SCREW (2.6X8), +BVTP
11 A-4728-373-A VIDEO BOARD, COMPLETE (VMP40)
12 1-823-899-11 WIRE (FLAT TYPE) (28 CORE)
M891 1-763-072-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S
