69
HCD-SBT100/SBT100B/SBT300W/SBT300WB

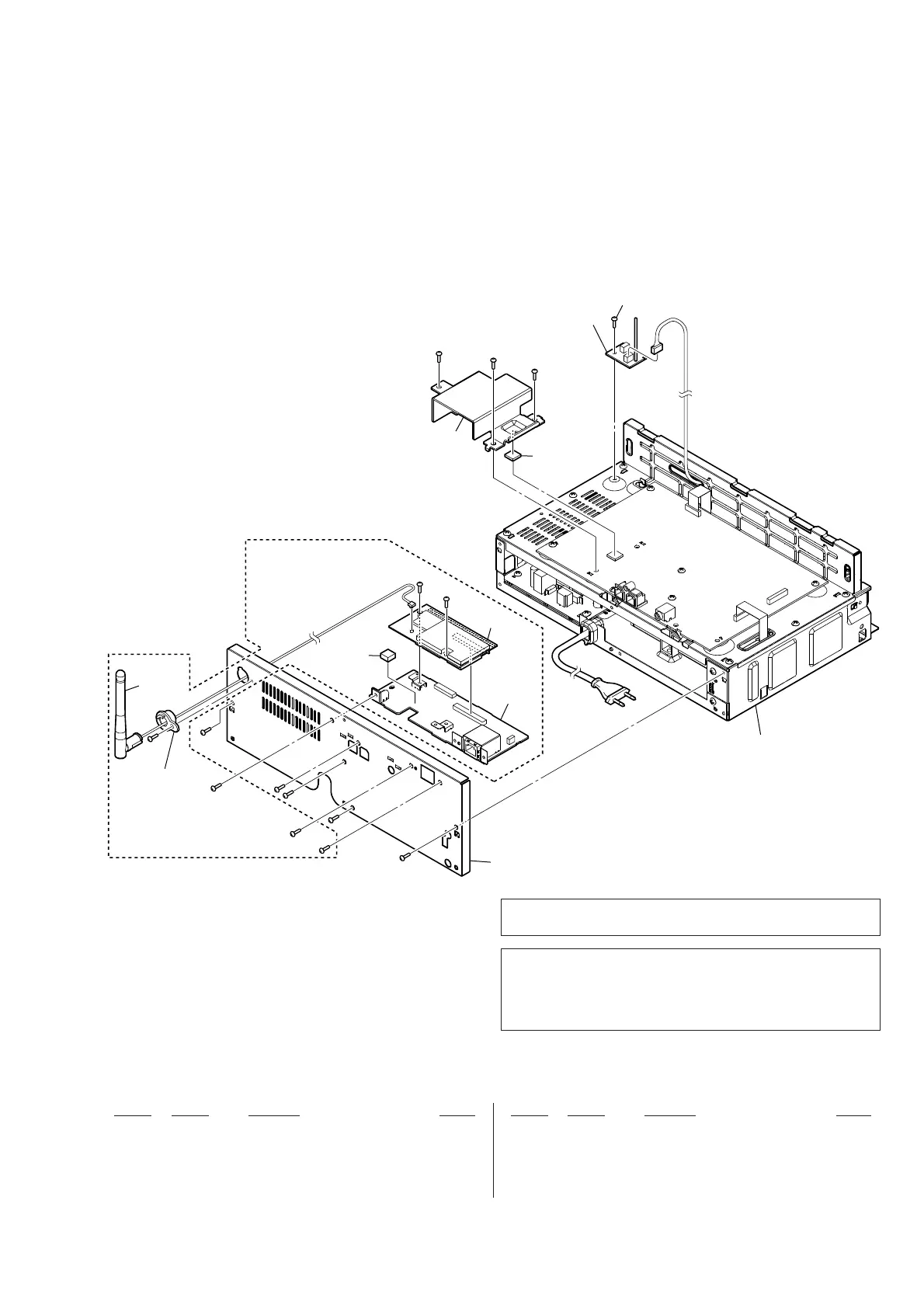

6-5. PANEL (BACK) SECTION
• Rear view
201 A-1937-839-A NET BOARD, COMPLETE (SBT300W/SBT300WB)
202 4-423-630-01 CUSHION (PORON T5_5) (SBT300W/SBT300WB)
203 3-077-331-21 +BV3 (3-CR)
204 4-231-099-11 SHEET, RADIATION
ANT1 1-754-878-11 ANTENNA, 2.4 GHz (SBT300W/SBT300WB)
WIFI1 X-2587-908-1 PWB BCO SVX (WiFi MODULE)
(SBT300W/SBT300WB)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 +BVTT 3X6 (SBT300W/SBT300WB)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
WIFI1
not supplied
not supplied
(RELAY board)
#1
#2
#2
#1
#1
#1
#2
#2
#1
#1
#1
ANT1
not supplied
202
201
204
203
MAIN board section
(SBT300W/SBT300WB)
#1
#1
#1
Note 1: When the complete NET board is replaced, refer to “CHECK-
ING METHOD OF NETWORK CONNECTION” on page 5.
Note 2: When the WiFi module (Ref. No. WIFI1) is replaced, refer to
“PROCESSING OF REPLACING THE WiFi MODULE (Ref.
No. WIFI1)”, “NOTE OF REPLACING THE WiFi MODULE
(Ref. No. WIFI1)” and “CHECKING METHOD OF NET-
WORK CONNECTION” on page 5.
To Next Page
