13
HCD-SPZ50/SPZ70
SECTION 6
ELECTRICAL ADJUSTMENTS
0 dB=0.775 VDECK SECTION
1. Demagnetize the record/playback head with a head
demagnetizer.
2. Do not use a magnetized screwdriver for the adjustments.
3. After the adjustments, apply suitable locking compound to the
parts adjust.
TEST TAPE

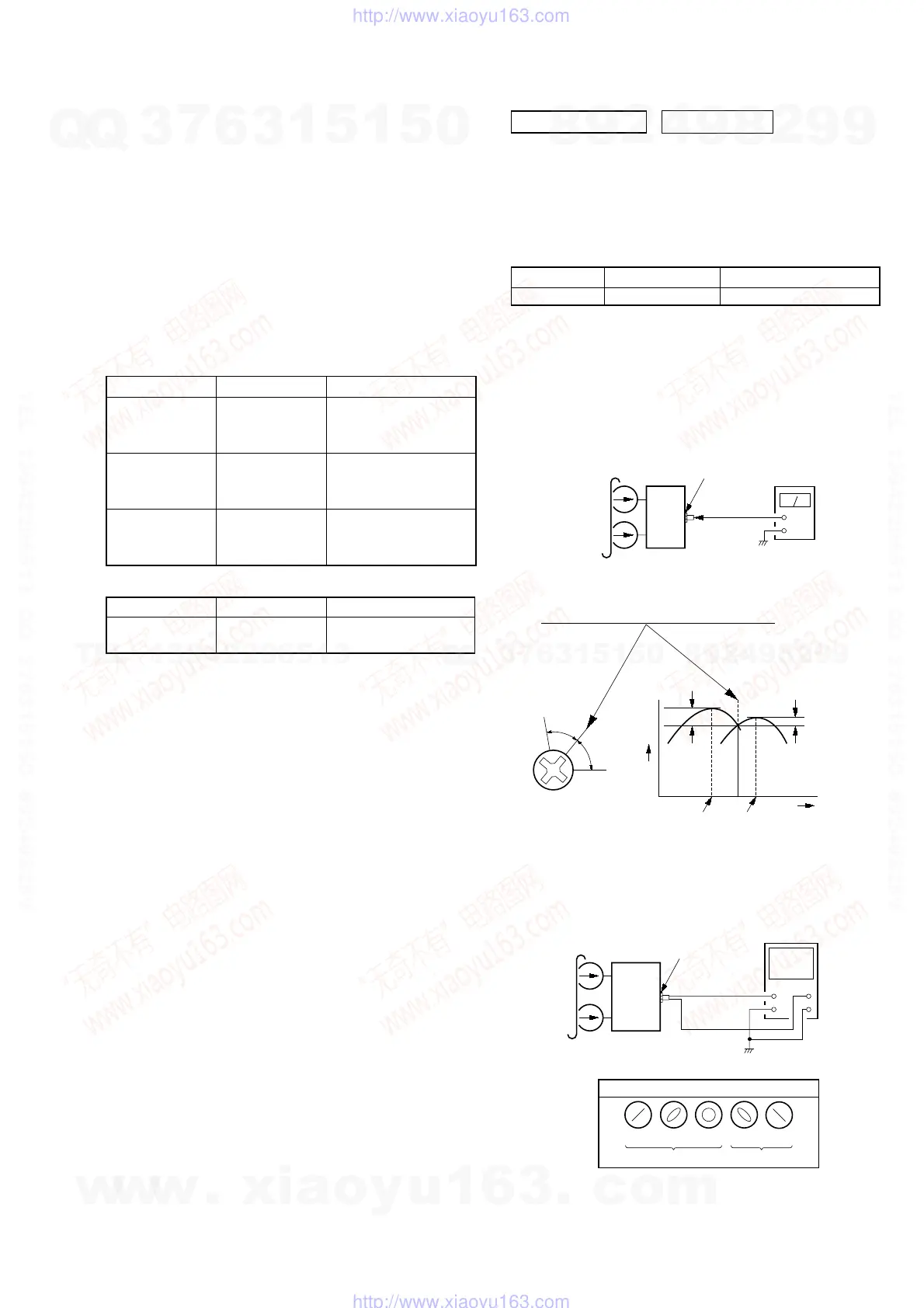

RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT
Note: Remove the mechanical deck before the adjust. (Refer to Section 3.
DISASSEMBLY (See page 7))
Procedure:
1. Mode: Playback
2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.
3. Mode: Playback
4. After the adjustments, apply suitable locking compound to the
pats adjusted.
Tape Signal Used for
P-4-A063 6.3 kHz, –10 dB Azimuth Adjustment
set
test tape
P-4-A063
(6.3 kHz,
−
10 dB)
oscilloscope
V
H
waveform of oscilloscope
in phase 45
°
90
°
135
°
180
°
good
wrong
HP A-IN board
PHONES jack
(J982)
SECTION 5
MECHANICAL ADJUSTMENTS
PRECAUTION
1. Clean the following parts with a denatured-alcohol-moistened
swab :
record/playback head pinch roller
erase head rubber belts
capstan idlers
2. Demagnetize the record/playback head with a head
demagnetizer. (Do not bring the head magnetizer close to the
erase head.)
3. Do not use a magnetized screwdriver for the adjustments.
4. After the adjustments, appiy suitable locking compound to
the parts adjusted.
5. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
TORQUE MEASUREMENT
Mode Torque Meter Meter Reading
2.9 – 7.4 mN⋅m
FWD CQ-102C (30 – 75 g⋅cm)
(0.42 – 1.04 oz⋅inch)
FWD
0.14 – 0.59 mN⋅m
Back Tension
CQ-102C (1.5 – 6.0 g⋅cm)
(0.021 – 0.083 oz⋅inch)
more than 5.4 mN⋅m
FF/REW CQ-201B (more than 55 g⋅cm)
(more than 0.76 oz⋅inch)
TAPE TENSION MEASUREMENT
Mode Tension Meter Meter Reading
FWD CQ-403A
more than 90 g
(more than 3.17 oz)
set
HP A-IN
PHONES jack
(J982)
+
–
level mete
test tape
P-4-A063
(6.3 kHz,
−
10 dB)
Screw
position
L-CH
peak
within
1dB
Output
level
L-CH
peak
R-CH
peak
within
1dB
Screw
position
R-CH
peak
