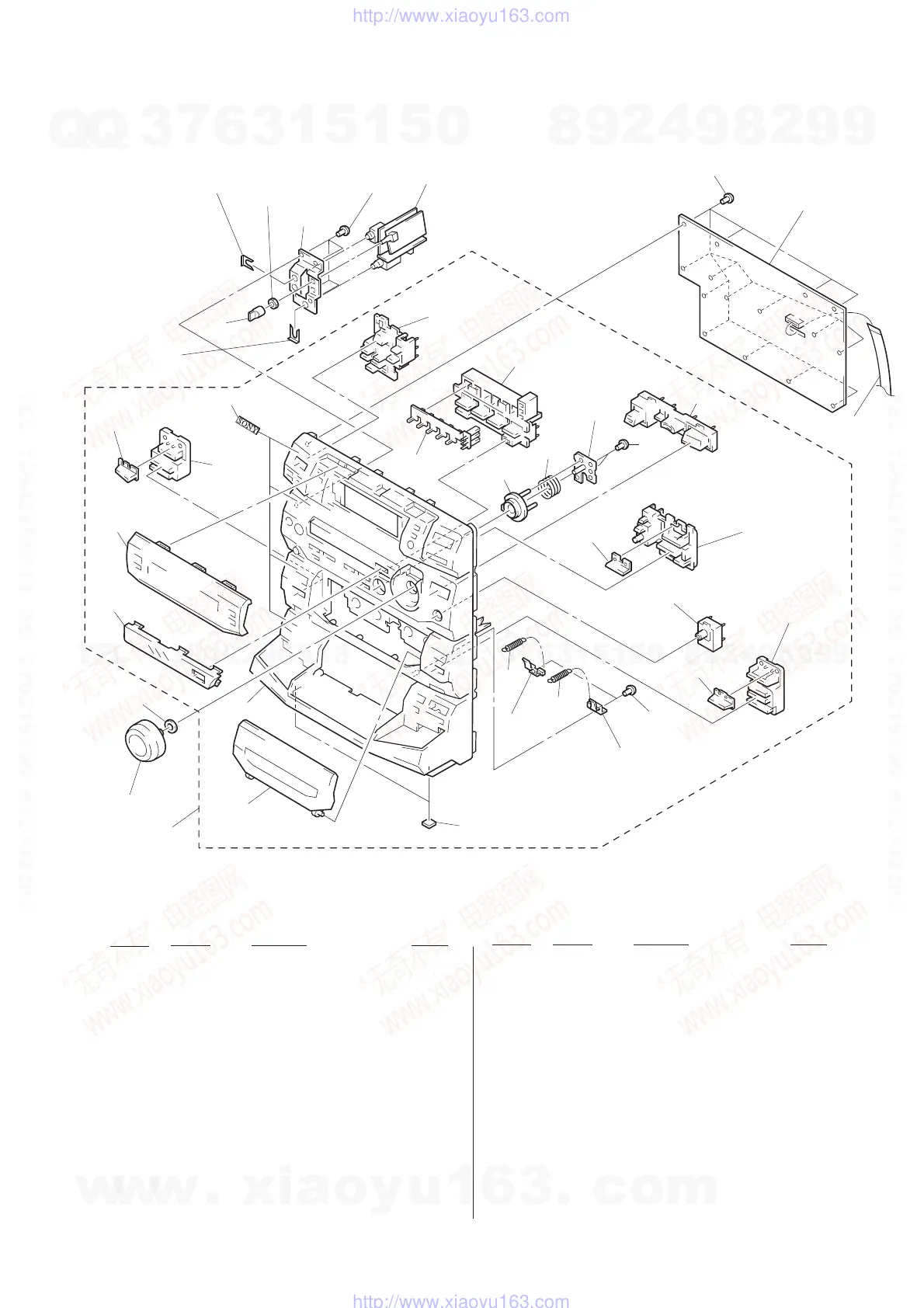

(3) FRONT PANEL SECTION-2
109
Supplied with
J761
Supplied with
RV760
not
supplied
110
111
112
114
113
115
116
117
118
110
122
121
123
124
125
not supplied
126
not
supplied
126
110
127
103
102
101
supplied
with S701
104
105
106
107
108
not supplied
110
119
120
supplied with
J760
Ref. No. Part No. Description Remark
101 A-4384-401-A PANEL ASSY, FRONT
102 4-987-036-01 KNOB (VOL)
103 X-4947-961-1 LID ASSY, CASSETTE
104 4-987-032-01 DISPLAY (TA)
105 4-987-028-01 DISPLAY (ST)
106 4-987-021-01 INDICATOR (TC A)
107 4-986-997-01 BUTTON (DECK.A)
108 4-963-404-21 EMBLEM (5-A), SONY
109 4-973-644-01 KNOB (MIC)
110 4-951-620-01 SCREW (2.6X8), +BVTP
* 111 A-4392-452-A HEADPHONE-MIC BOARD, COMPLETE
112 4-986-986-01 BUTTON (POWER)
113 4-987-012-01 INDICATOR (TA)
114 X-4947-964-1 BUTTON (SOUND) ASSY
Ref. No. Part No. Description Remark
115 4-986-990-01 BUTTON (CURSOR)
116 4-978-683-01 SPRING, COMPRESSION
* 117 4-987-041-01 COVER, CURSOR
118 X-4947-963-1 BUTTON (FUNCTION) ASSY
* 119 A-4392-427-A PANEL BOARD, COMPLETE
120 1-773-051-11 WIRE (FLAT TYPE) (17 CORE)
121 X-4947-962-1 BUTTON (TUNER) ASSY
122 4-987-013-01 INDICATOR (TUNER)
123 4-986-992-01 BUTTON (DBFB)
124 X-4947-967-1 BUTTON (DECK B) ASSY
125 4-987-022-01 INDICATOR (TC B)
126 4-987-996-01 SPRING (TC LID), TENSION
127 4-948-236-01 CUSHION (107)
