Locations and Functions of Parts
a VBS 1, 2 (composite video output 1, 2) connectors
(BNC-type)
The signal from the video camera may be output as two
analog composite signals.
b PIX OUT (picture monitor output) connector (BNC-
type)
Outputs the video signal for a picture monitor selected with the
PICTURE MONITOR button of an RCP-1000 series Remote
Control Panel or MSU-1000 series Master Setup Unit.
Character signals or marker signals can be superimposed on
the video signal output through this connector.
For details on these operations, refer to the Master Setup Unit
or Remote Control Panel manuals.
c WF OUT (waveform monitor output) connector (BNC-
type)
Outputs the video signal for a waveform monitor selected with
the WF MONITOR button of an RCP-1000 series Remote
Control Panel or MSU-1000 series Master Setup Unit.
For details on these operations, refer to the Master Setup Unit
or Remote Control Panel manuals.
HKCU1003 Multi Interface Unit
(optional)
Note
To reduce the risk of electric shock, fire or injury, do not open
the cabinet. To adjust the internal settings, refer to qualified
service personnel.
The HKCU1003 consists of an EN-B front board and three
VDA rear boards (A/B/C).
When the EN-B board and one of the VDA rear boards are
installed in the front and rear expansion slots of the unit, the
unit inputs or outputs the following signals.
• Outputs SD composite signals, waveform monitor output
signals, and picture monitor output signals through a VDA-
A board.
• Inputs/outputs the frame sequence signal when operating a
24P system through a VDA-B board.
• Outputs analog component signals or analog composite
signals through a VDA-C board.
When you use either the VDA-A board or the VDA-B board,
insert the EN-B board in the corresponding expansion slot on
the front of the HDCU2000/2500. When either the VDA-A
board or the VDA-B board is installed, you can insert the VDA-
C board in an expansion slot on the rear panel of the
HDCU2000/2500. Don’t insert any board in the corresponding
expansion slot on the front of the HDCU2000/2500.
For details on installation, contact a Sony service or sales
representative.

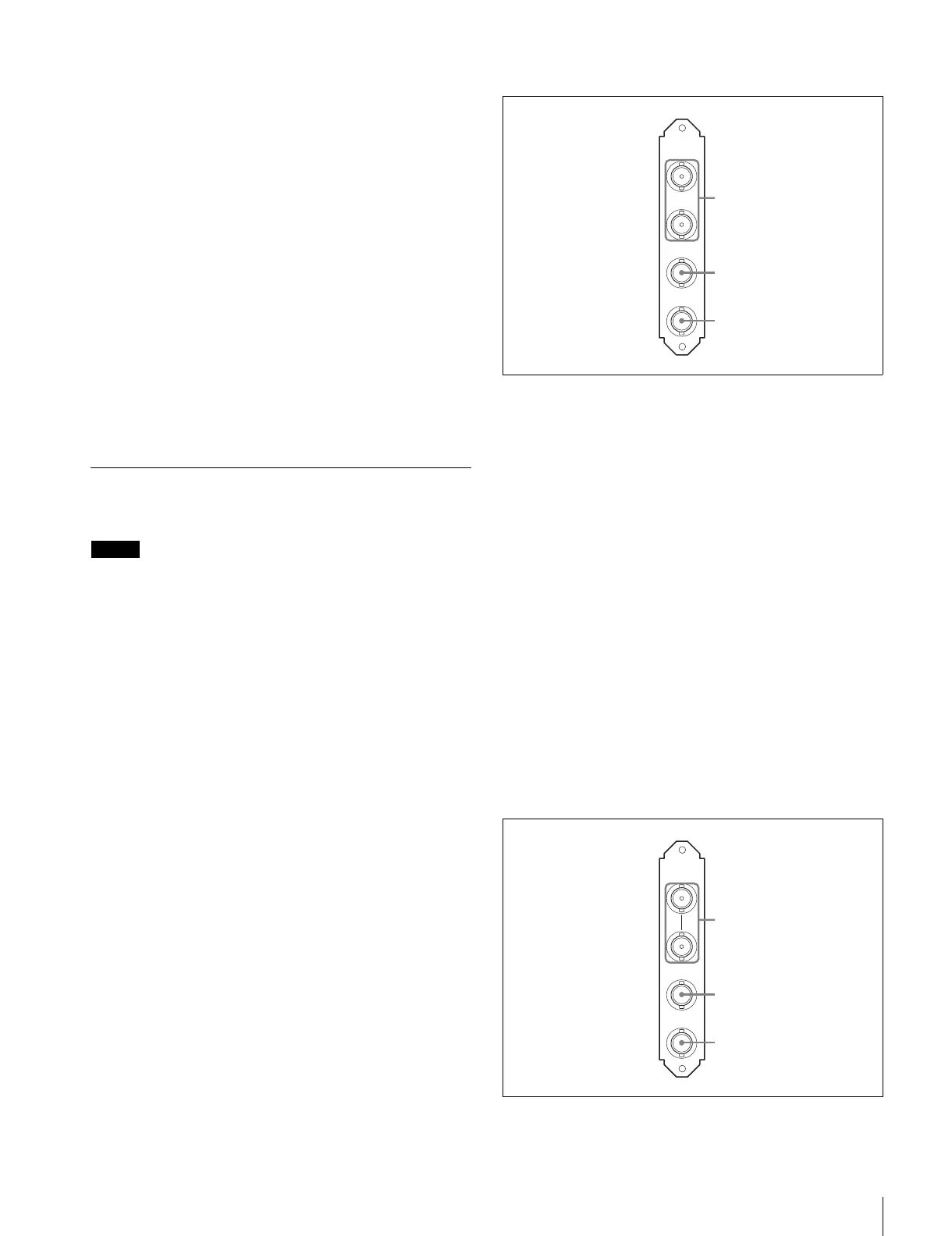

VDA-A Board
a VBS 1, 2 (composite video output 1, 2) connectors
(BNC-type)
The signal from the video camera may be output as two
analog composite signals.
b PIX OUT (picture monitor output) connector (BNC-
type)
Outputs the video signal for a picture monitor selected with the
PICTURE MONITOR button of an RCP-1000 series Remote
Control Panel or MSU-1000 series Master Setup Unit.
Character signals or marker signals can be superimposed on
the video signal output through this connector.
For details on these operations, refer to the Master Setup Unit
or Remote Control Panel manuals.
c WF OUT (waveform monitor output) connector (BNC-
type)
Outputs the video signal for a waveform monitor selected with
the WF MONITOR button of an RCP-1000 series Remote
Control Panel or MSU-1000 series Master Setup Unit.
For details on these operations, refer to the Master Setup Unit
or Remote Control Panel manuals.
VDA-B Board
a FRAME REF IN, OUT (frame reference input/output)
connectors (BNC-type)
VDA-A
1
2
PIX
OUT
WF
OUT
VBS
1
2
3
FRAME
REF IN
PIX
OUT
WF
OUT
OUT
VDA-B
1
2
3
