ICF-C212
12

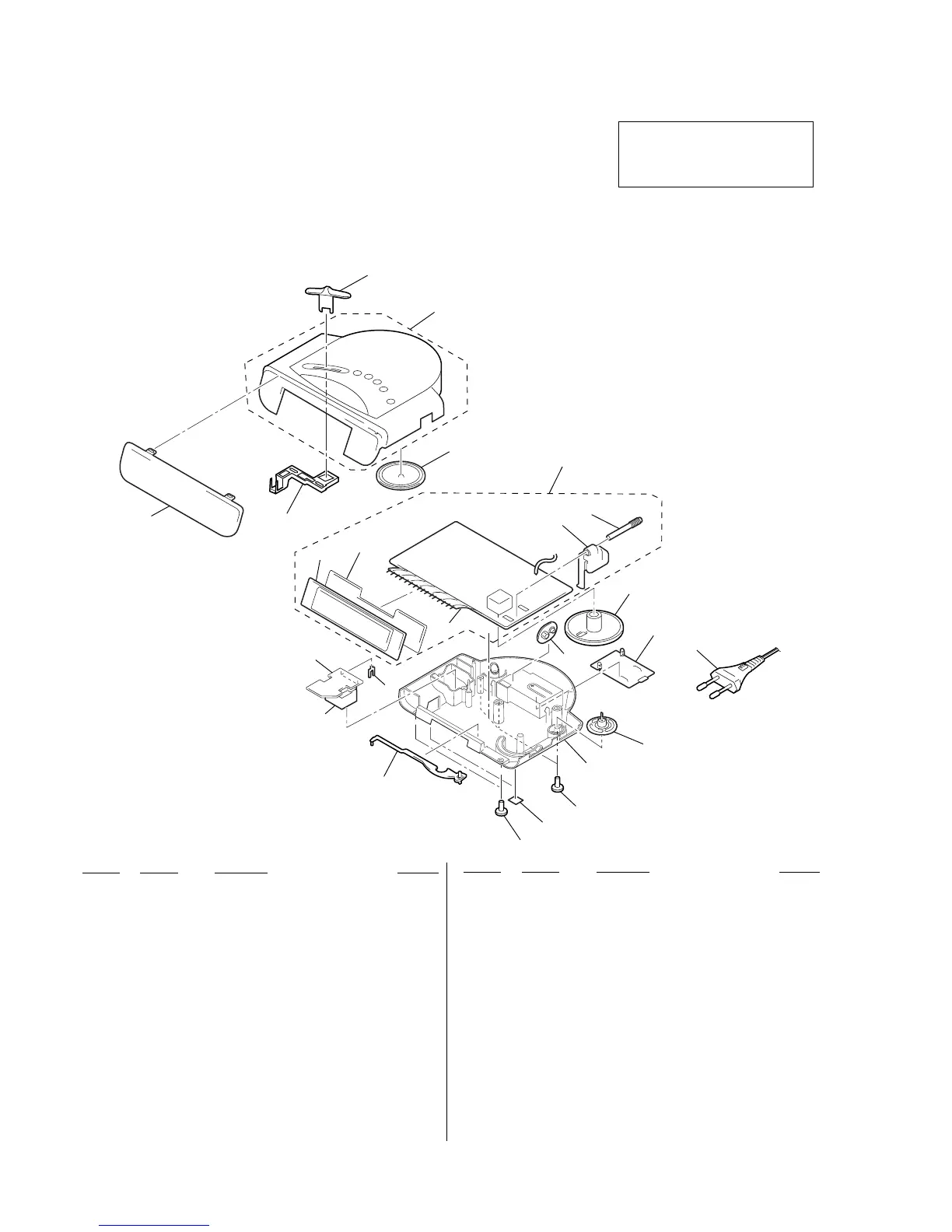

SECTION 5
EXPLODED VIEW
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Accessories and packing materials are given
in the last of this parts list.
• Abbreviation
AUS : Australian
SP : Singapore
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
SP1
L1
D7
W2
W1
1
15
2
3
4
5
8
7
12
10
13
16
14
not supplied
not supplied
11
T2
6
4
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
1 3-369-135-21 LID, BATTERY CASE
2 3-919-268-01 KNOB (VOL)
3 3-247-710-21 CABINET (LOWER) (BLACK)
3 3-247-710-31 CABINET (LOWER) (WHITE)
4 7-685-649-79 SCREW +P 3X14 TYPE2 NON-SLIT
5 3-247-703-01 POINTER
6 3-246-344-11 FOOT, RUBBER
7 1-535-771-31 TERMINAL
8 3-247-709-01 PANEL (FRONT) (AUS)
8 3-247-709-11 PANEL (FRONT) (SP)
10 3-247-706-01 KNOB (FUNCTION) (BLACK)
10 3-247-706-11 KNOB (FUNCTION) (WHITE)
11 3-247-707-01 INDICATOR
12 X-3383-740-1 CABINET (UPPER) ASSY (BLACK)
12 X-3383-741-1 CABINET (UPPER) ASSY (WHITE)
* 13 A-3347-801-A MAIN BOARD, COMPLETE (SP)
* 13 A-3663-943-A MAIN BOARD, COMPLETE (AUS)
0 14 1-555-795-00 CORD, POWER (SP)
0 14 1-790-431-12 CORD, POWER (AUS)
15 3-044-228-01 KNOB (TUNE)
16 3-044-220-01 HOLDER (ANT)
D7 6-500-077-01 DIODE COG309T0A1 (AUS)
D7 6-500-078-01 DIODE COG309T0E1 (SP)
L1 1-419-532-41 COIL, FERRITE-ROD ANTENNA (MW)
SP1 1-529-456-13 SPEAKER (6.6cm)
0 T2 1-433-574-31 TRANSFORMER, POWER
W1 1-535-804-71 SNAP, BATTERY
* W2 1-769-137-11 CORD, CONNECTION (16 CORE)
To Next Page
