– 15 – – 16 –
ICF-SW35

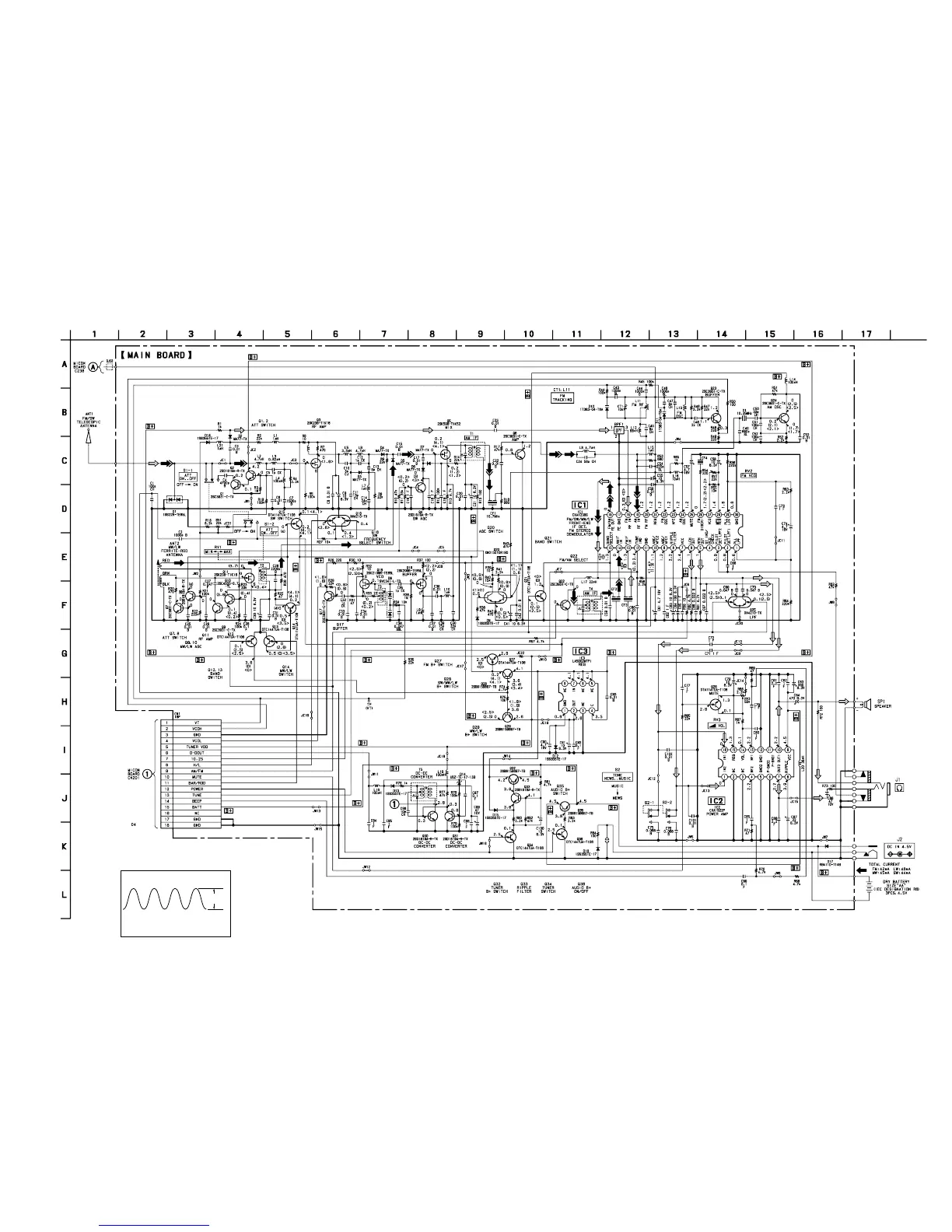

4-4. SCHEMATIC DIAGRAM — MAIN SECTION — • Refer to page 21 for IC Block Diagrams.
(Page 20)
(Page 19)
Q30
C
• Waveform
1
0.2µsec/div
0.1V/div
1.78MHz
4.4Vp-p
