HCD-LX7/LX8
39
39

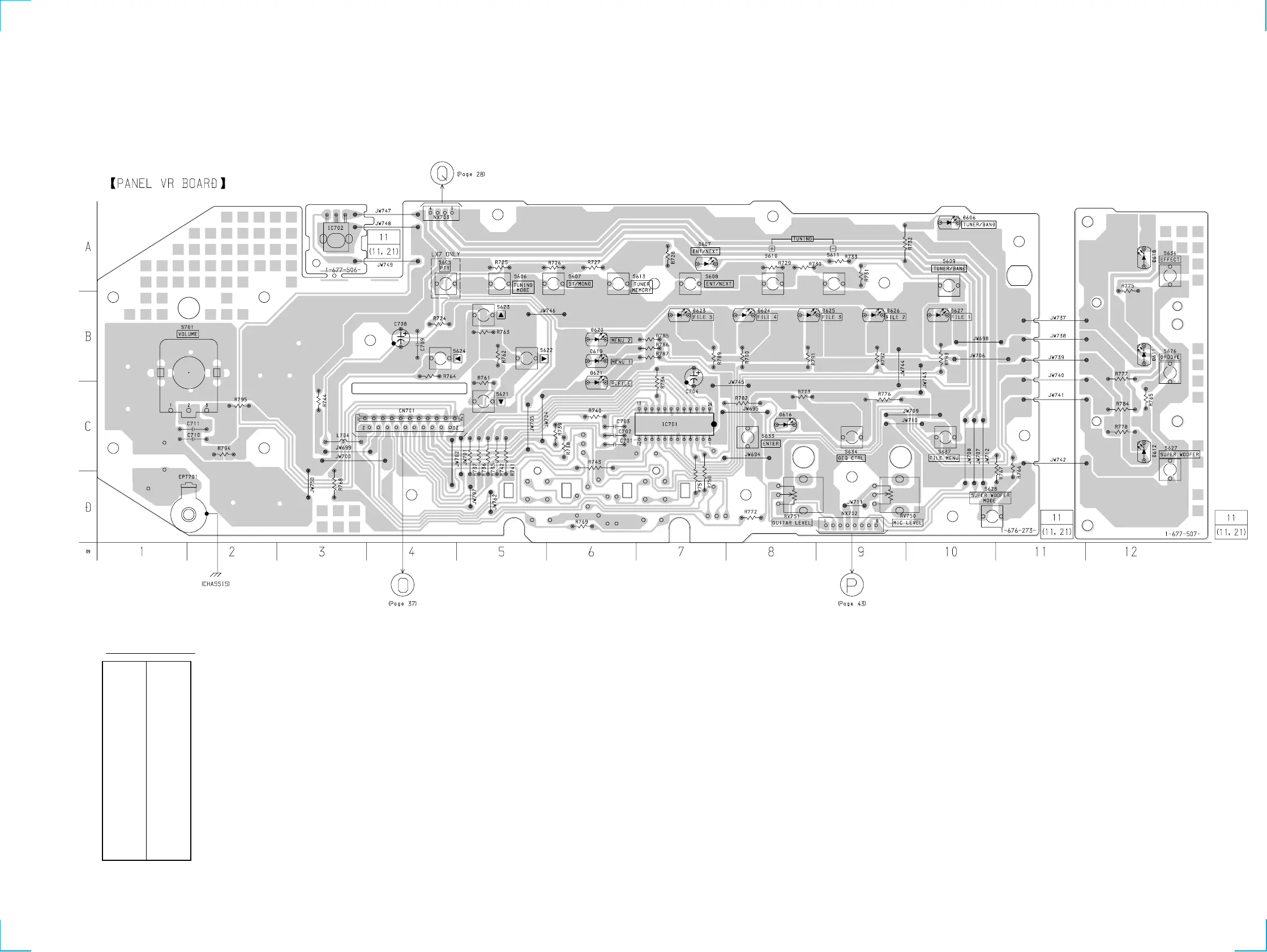

6-16.
PRINTED WIRING
BO
ARD
–
P
ANEL
VR SECTION
–
•
See page 17 for Cir
cuit Boards Location.
•
Semiconductor
Location
D606
A-10
D607
A-7
D611
B-11
D612
C-12
D616
C-8
D618
A-12
D619
B-6
D620
B-6
D621
B-6
D623
B-7
D624
B-8
D625
B-8
D626
B-9
D627
B-10
IC701
C-7
IC702
A-3
Ref. No.
Location
39
41
Table of Contents
Default Chapter
5
Table of Contents
5
1 Servicing Note
6
2 General
10
3 Disassembly
12
Front Panel
12
Main Board
12
Sub Panel
13
CD LID Assembly
13
Tape Mechanism Deck and Cassette LID
13
CD Mechanism Deck
14
Base Unit
14
Disc Table
14
4 Mechanical Adjustments
15
5 Electrical Adjustments
15
6 Diagrams
18
Circuit Boards Location
18
Block Diagrams
19
BD (CD) Section
19
Deck Section
20
Main (1/2) Section
21
Main (2/2) Section
22
Power Section (LX8 Model)
23
Power Section (LX7 Model)
24
Display Section
25
Printed Wiring Board - BD (CD) Section
27
Schematic Diagram - BD (CD) Section
28
Printed Wiring Board - Main Section
29
Schematic Diagram - Main (1/3) Section
30
Schematic Diagram - Main (2/3) Section
31
Schematic Diagram - Main (3/3) Section
32
Schematic Diagram - Deck Section
33
Printed Wiring Board - Deck Section
34
Schematic Diagram - Power Section
35
Printed Wiring Board - Power Section
36
Schematic Diagram - Panel FL Section
37
Printed Wiring Board - Panel FL Section
38
Schematic Diagram - Panel VR Section
39
Printed Wiring Board - Panel VR Section
40
Schematic Diagram - TC Panel Section
41
Printed Wiring Board - TC Panel Section
42
Schematic Diagram - CD Panel Section
43
Printed Wiring Board - CD Panel Section
44
Schematic Diagram - CD Motor Section
45
Printed Wiring Board - CD Motor Section
46
Schematic Diagram - Trans Section - (LX7 Model)
47
Printed Wiring Board - Trans Section - (LX7 Model)
48
Schematic Diagram - Trans Section - (LX8 Model)
49
Printed Wiring Board - Trans Section - (LX8 Model)
50
Schematic Diagram - Leaf SW Section
50
Printed Wiring Board - Leaf SW Section
50
IC Block Diagrams
51
IC Pin Functions
51
7 Exploded Views
54
Case and Back Panel Section
54
Front Panel Section 1
55
Front Panel Section 2
56
Chassis Section
57
TC Mechanism Section 1 (TCM230PWR1)
58
TC Mechanism Section 2 (TCM230PWR1)
59
CD Mechanism Section (CDM37M-5BD32L)
60
Base Unit Section (BU-5BD32L)
61
8 Electrical Parts List
62
