53
3 4-225-529-31 PANEL,BACK (LX8:SP,MY)
3 4-225-529-41 PANEL,BACK (LX8:MX)
3 4-225-529-51 PANEL,BACK (LX8:AUS)
3 4-225-529-61 PANEL,BACK (LX8:EA)
4 3-363-099-01 SCREW (CASE 3 TP2)
5 4-214-777-51 CASE
6 4-956-370-12 BAND,PLUG FIXED (LX7:UK/LX8:AUS)
M901 1-763-072-11 FAN,D.C.
1 1-769-977-11 WIRE (FLAT TYPE)(13 CORE)(LX8)
1 1-773-009-11 WIRE (FLAT TYPE)(15 CORE)(LX7)
2 1-693-484-11 TUNER (FM/AM)(LX8:E)
2 1-693-488-11 TUNER (FM/AM)(LX8:AR,MX,EA,SP,MY,AUS)
2 1-693-490-11 TUNER (FM/AM)(LX7)
3 4-225-529-11 PANEL,BACK (LX7)
3 4-225-529-21 PANEL,BACK (LX8:E,AR)

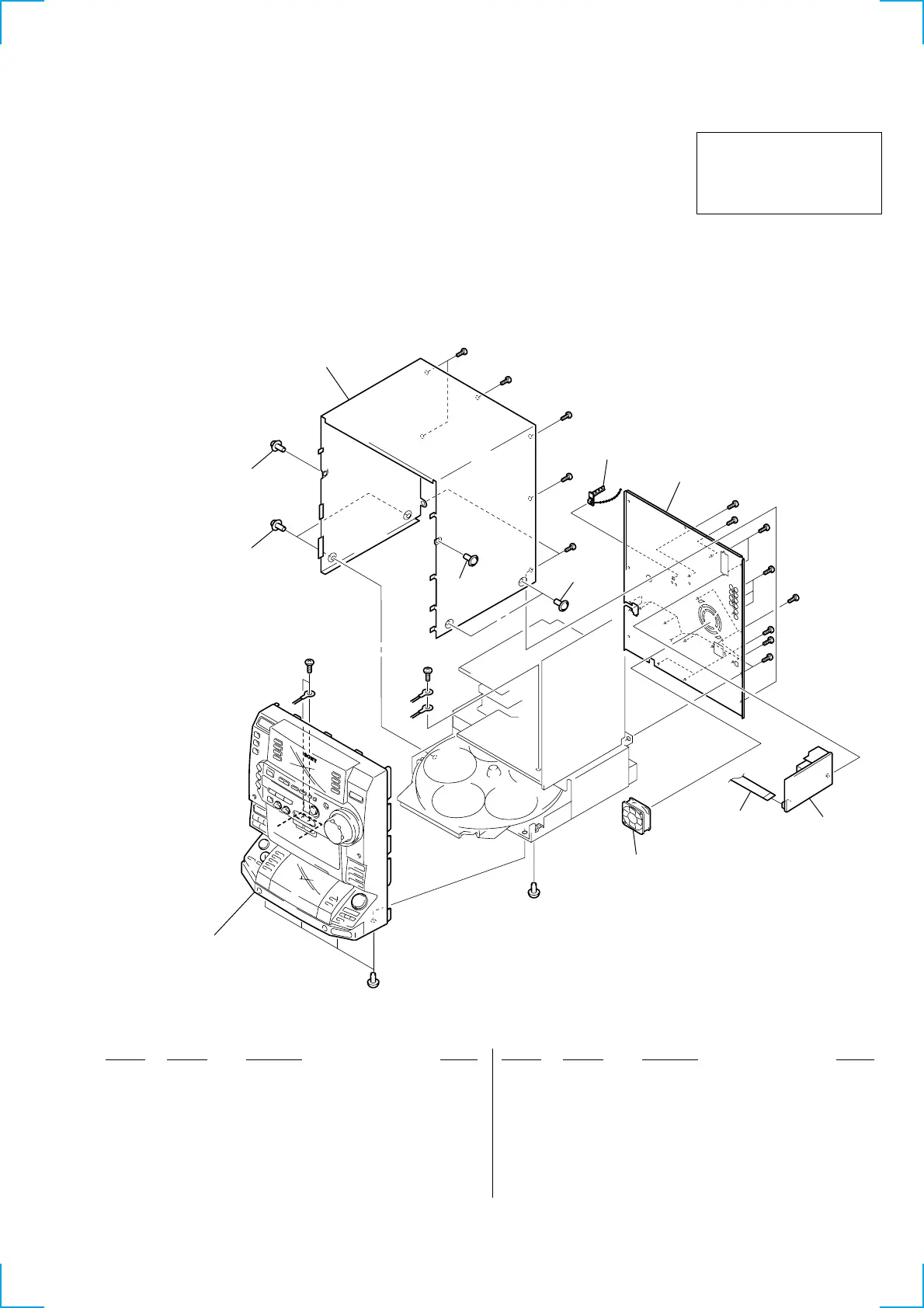

SECTION 7
EXPLODED VIEWS
7-1. CASE AND BACK PANEL SECTION
NOTE:
Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
The mechanical parts with no reference number in
the exploded views are not supplied.
Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
#3
#3
#3
#3
#3
#2
#3
#3
#1
#1
#1
#1
#3
#3
#3
#3
#3
M901
1
2
FRONT PANEL
4
4
4
4
5
6
3
Abbreviation
SP : Singapore model
MX : Mexican model
AUS : Australian model
EA : Saudi Arabia model
AR : Argentine model
MY : Malaysia model
