Sony MDR-1000X Service Manual

MDR-1000X
3

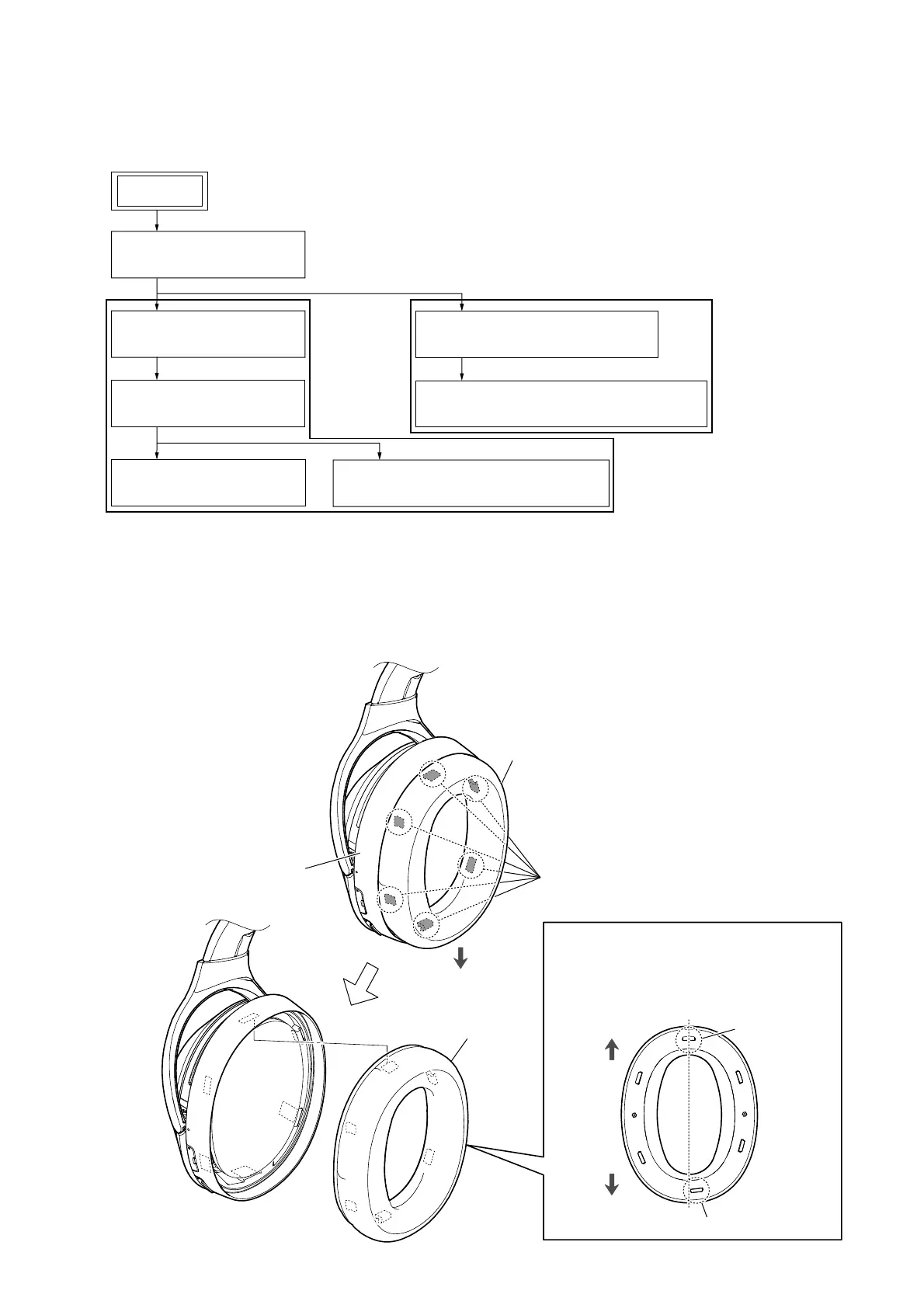

SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. EARPAD
Note 1: L-ch and R-ch can be similarly disassembled.
The illustration of L-ch is used for explanation.
SET
2-6. BUTTON ASSY, L KEY ASSY (KEY1)
(Page 5)
2-4. LOWER COVER (L)
(Page 4)
2-5. INPUT JACK (J1)
(Page 5)
L-ch R-ch
2-3. ORNAMENT (L) ASSY
(Page 4)
2-2. EARPAD
(Page 3)
2-7. ORNAMENT (R) ASSY (TPS1)
(Page 6)
2-8. LITHIUM ION BATTERY PACK (BAT1)
(Page 7)
2
earpad
– L-ch –
front plate (L)
earpad
Note 2:
Confirm the positions of the top and lower
claws before installing the earpad.
top side
lower side
lower side
The position of the claw is off-center.
1
six claws
Installation direction for the earpad
guide line
(center)
claw
Ver. 1.1

Sony MDR-1000X Specifications

General

Battery recharge time	4 h
Continuous audio playback time	20 h
Manual	Yes
Voice coil type	CCAW
Connectivity technology	Wired & Wireless
Connector contacts plating	Gold
Impedance	46 Ω
Driver type	Dynamic
Driver unit	40 mm
Magnet type	Neodymium
Ear coupling	Circumaural
Headphone frequency	4 - 40000 Hz
Headphone sensitivity	103 dB
Cable length	1.5 m
Headset type	Binaural
Product type	Headset
Product color	Beige
Wearing style	Head-band
Recommended usage	Calls/Music
Quantity	1
Microphone type	Built-in

Weight and Dimensions

Weight	275 g
