8
MDR-1000X
SECTION 3
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color

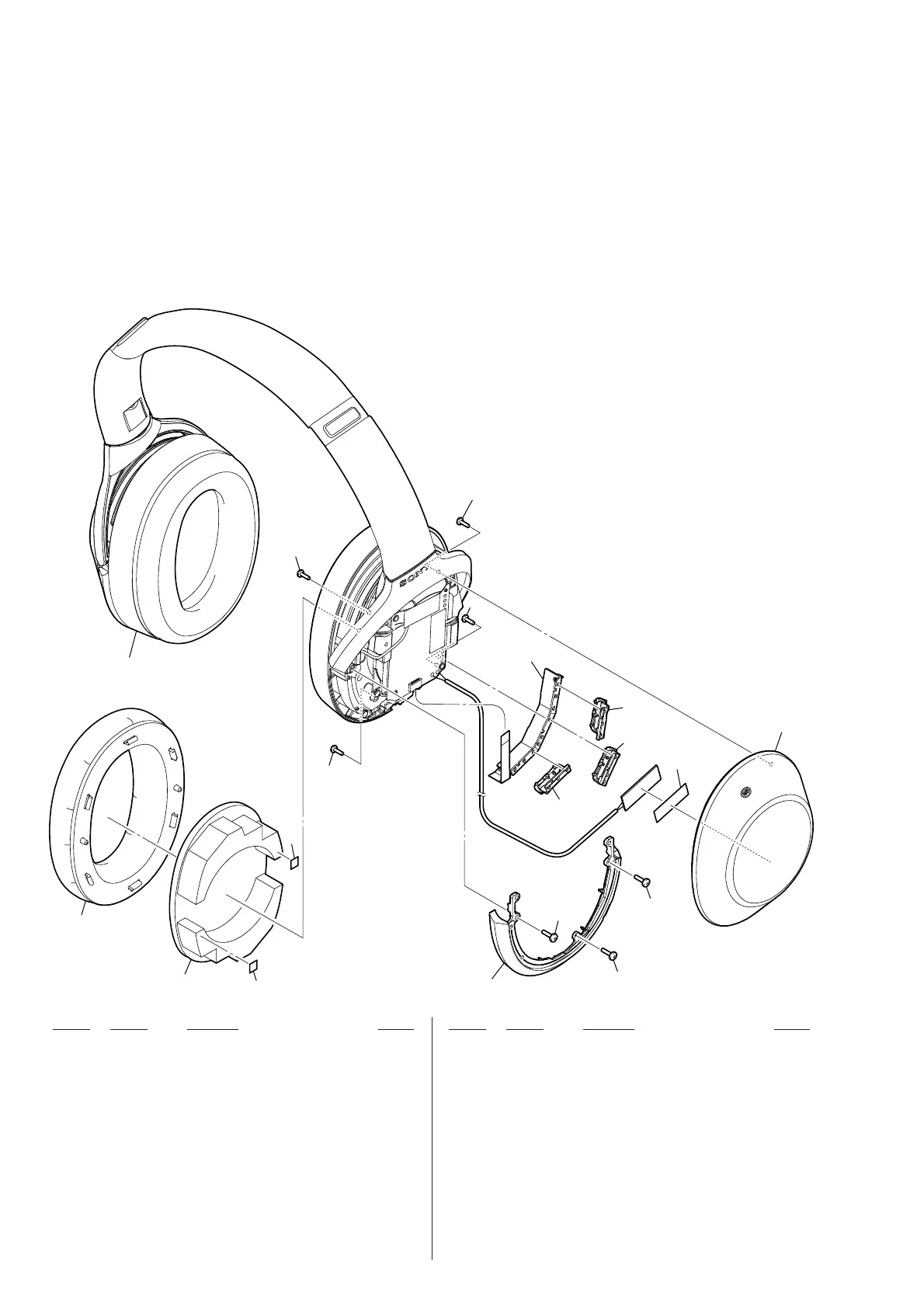

3-1. L-ch SECTION
R-ch, headband section
– L-ch –
– R-ch –
1
2
3
4
5
6
7
8
8
9
9
9
10
11
8
3
KEY1
9
1 X-2593-517-1 EARPAD, BLACK (for BLACK)
1 X-2593-518-1 EARPAD, BROWN (for GRAY BEIGE)
2 4-594-808-01 SCREEN (for BLACK)
2 4-594-808-11 SCREEN (for GRAY BEIGE)
3 4-590-623-01 ADHESIVE, COVER STOPPER
4 X-2593-519-1 BUTTON POWER ASSY (1) (for BLACK)
4 X-2593-520-1 BUTTON POWER ASSY (1) (for GRAY BEIGE)
5 X-2593-525-1 BUTTON NC ASSY (NC) (for BLACK)
5 X-2593-526-1 BUTTON NC ASSY (NC) (for GRAY BEIGE)
6 X-2593-523-1 BUTTON AMBIENT ASSY (AMBIENT SOUND)
(for BLACK)
6 X-2593-524-1 BUTTON AMBIENT ASSY (AMBIENT SOUND)
(for GRAY BEIGE)
7 4-590-568-02 COVER, LOWER (L) (for BLACK)
7 4-590-568-11 COVER, LOWER (L) (for GRAY BEIGE)
8 3-080-206-21 SCREW, TAPPING, P2 (L = 5.0 mm)
9 3-254-081-11 SCREW (2X8 mm)
10 A-2143-456-A ORNAMENT (L) ASSY, SVX (Including MIC bracket)
(for BLACK)
10 A-2143-458-A ORNAMENT (L) ASSY, SVX (Including MIC bracket)
(for GRAY BEIGE)
11 4-590-577-01 ADHESIVE, NFC
KEY1 A-2143-454-A L KEY ASSY, SVX (Including L KEY board,
KEY PWB holder)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Refer to “COLOR VARIATIONS” on page 2
about color variation of the unit.
To Next Page
