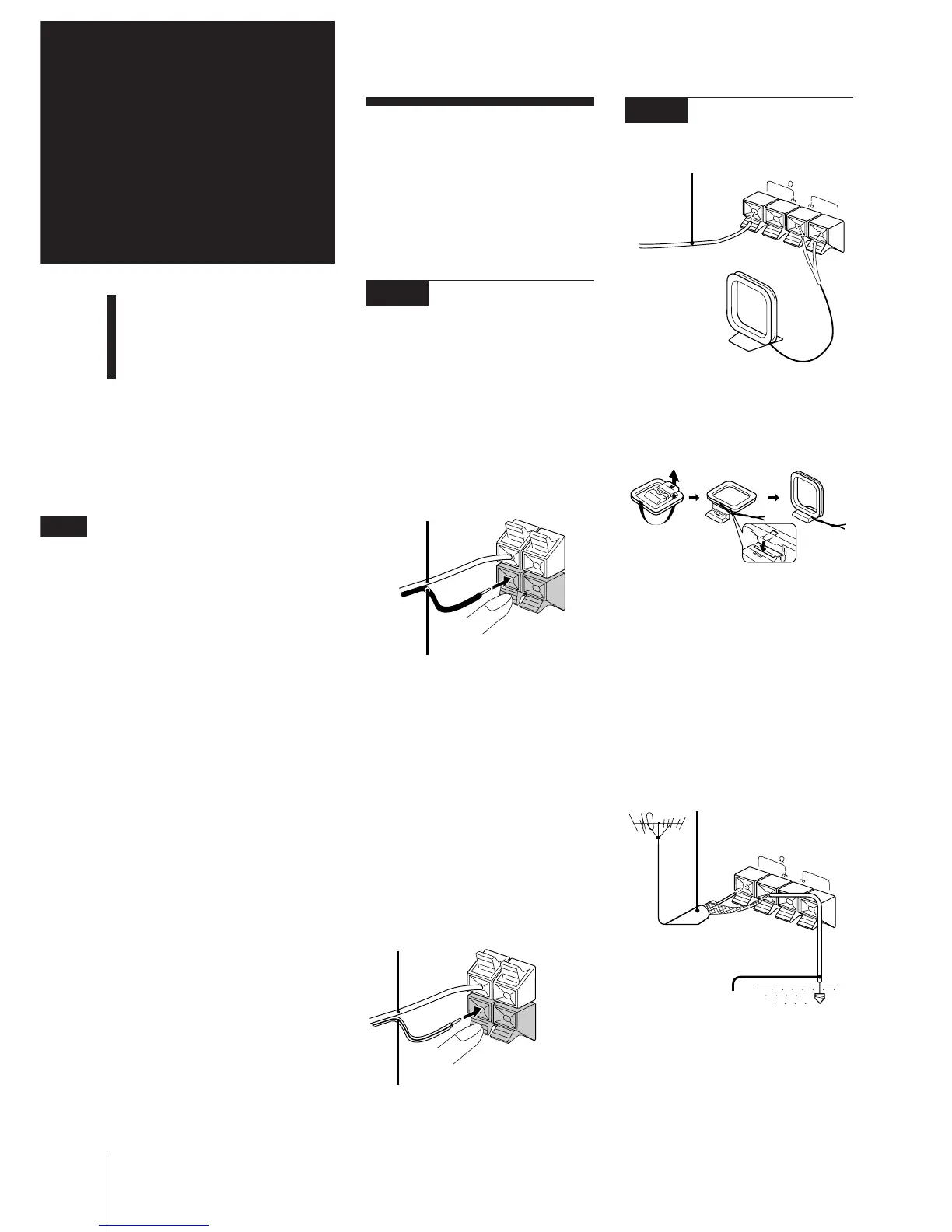

Chapter 1: Setting Up
EN
4
Connecting the
Antennas
AM loop antenna connection
Connect the supplied loop antenna to the
AM and the y terminals.
To improve the FM reception
Connect an external FM antenna to the
FM 75 Ω and y terminals, using a 75-ohm
coaxial cable.
Important
Ground the external antenna from y
terminal against lightning with the screw
clamp. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Connecting the
Stereo
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Equipment” in Chapter 7.
Connecting the
Speakers
After arranging both ends of the speaker
cables, connect all speakers to the unit.
To connect the front speakers
Connect the right front speaker to the
SPEAKER R connectors and the left front
speaker to the SPEAKER L connectors with
the red cords to ‘ and the black cords to
’ .
To connect the surround/sub
speakers
Connect the right rear speaker to the
SURROUND/SUB SPEAKER R connectors
and the left rear speaker to the
SURROUND/SUB SPEAKER L connectors
with the gray cords to ‘ and the gray with
black stripes cords to ’.
Note
Do not place the surround speakers on top
of a TV. This may cause distortion of the
colors in the TV screen.
Chapter 1:
Setting
Up
Connecting the Stereo
Inserting the Batteries
Setting the Clock
STEP 1
FM lead antenna* (supplied)
AM loop antenna (supplied)
* Note: Extend it horizontally
R
L
SPEAKER
Red cord to ‘ (red)
Black cord to ’ (black)
STEP 2
FM 75
AM
FM 75
AM
75-ohm coaxial cable
(not supplied)
Ground wire
(not supplied)
Gray cord
to ‘ (Gray)
Black-lined cord to ’ (black)
R
L
SURROUND/SUB SPEAKER
To Next Page
