Sony MZ-R37 Service Manual

– 7 –

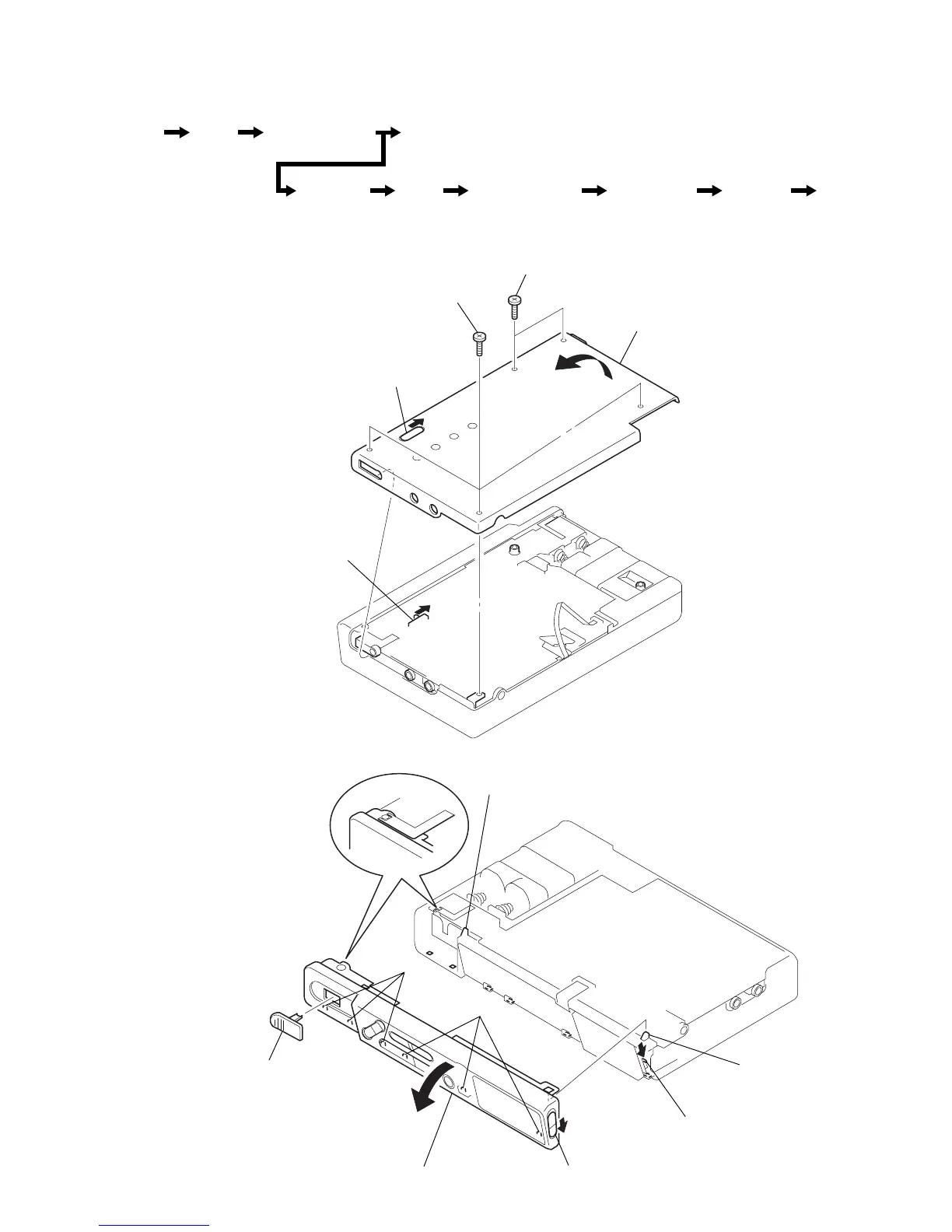

Note : This set can be disassemble according to the following sequence.
SECTION 3
DISASSEMBLY
3-1. PANEL, BOTTOM
3-2. PANEL (SV) ASSY, FRONT
Note : Follow the disassembly procedure in the numerical order given.
Set Panel,
Bottom
Panel (SV) Assy,
Front
Panel (SV) Assy,
Upper
LCD Module
Connector Main
Board
Cabinet (SV)
Ass
y
OP Block
Ass
y
Holder
Ass
y
1 1.7x4.5, tapping
2 1.7x4.5, tapping
3 panel, bottom
knob
switch
1 knob (OPEN)
2 claw
5 panel (SV) assy, front
3 claw
4
claws
claws
knob
switch
