Sony NEX-FS100C User Manual

NEX-FS100C/FS100CK/FS100E/FS100EK/FS100J/FS100JK/FS100N/FS100NK/FS100P/FS100PK/FS100U/FS100UK
2-19
801 A-1826-126-A HANDLE BLOCK ASSY
802 X-2342-570-1 HOLDER (93000) ASSY,MICROPHONE
803 3-284-621-11 CUSHION, MICROPHONE HOLDER
804 3-284-080-01 RUBBER, MICROPHONE
805 3-284-081-11 SHEET, RUBBER ADHESIVE
806 4-119-861-01 RUBBER (93000), HOLDER
807 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER
808 X-2581-582-1 BAR ASSY, MIC
809 X-2581-581-1 BAR ASSY, HANDLE
810 3-069-286-03 SHOE, ACCESSORY
Ref. No. Part No. DescriptionRef. No. Part No. Description
811 X-2581-580-1 BASE ASSY, HANDLE
812 4-284-192-01 CAP, HANDLE BAR
813 4-284-190-01 KNOB, HN LOCK
814 3-288-615-02 SPRING, SHOE
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#119 7-627-556-58 SCREW +P 2.6X5

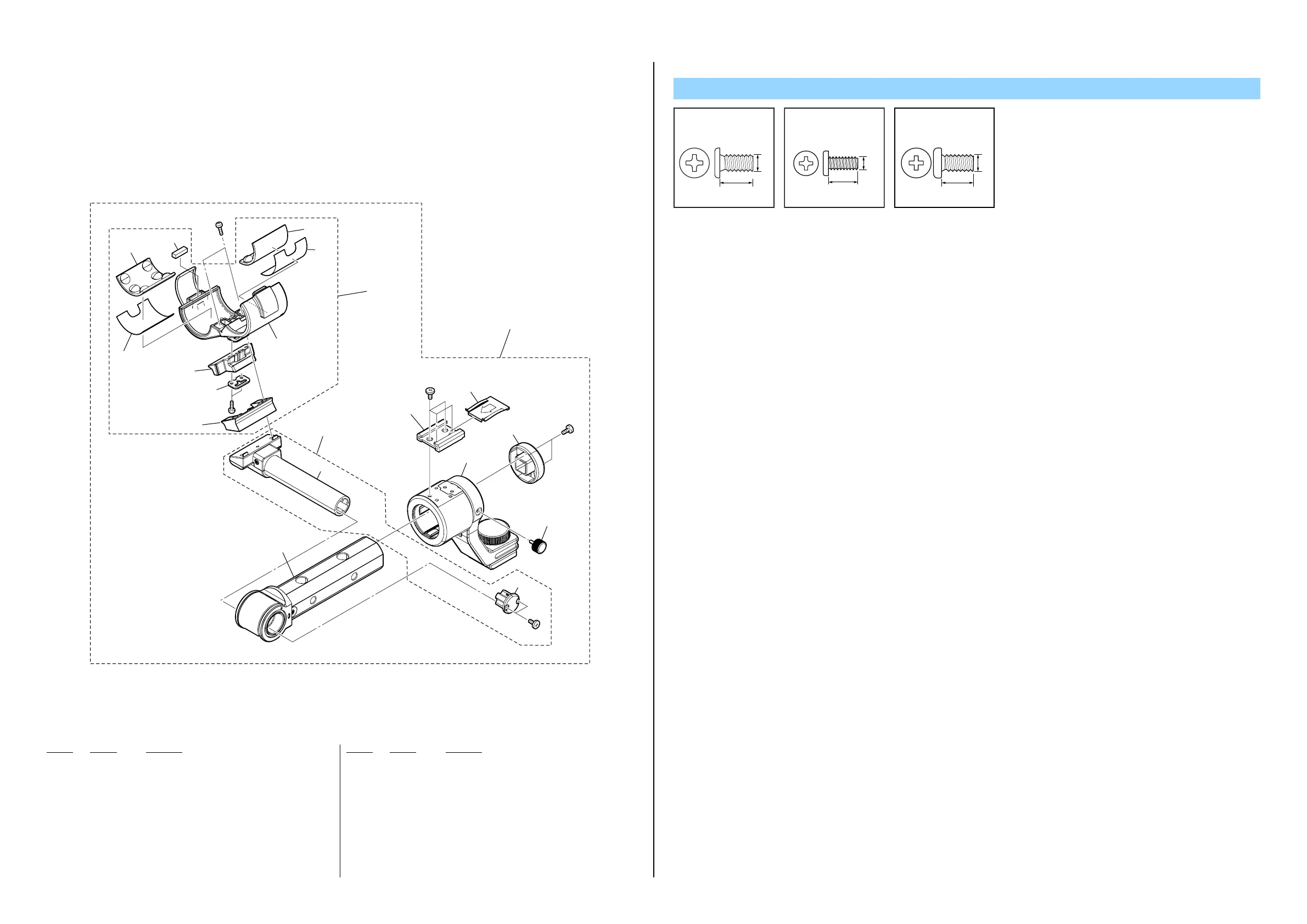

2-1-17. HANDLE SECTION
ns : not supplied
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119
805
802
804
805
804
803
ns
806
#53
#49
#49
ns
807
#49
810
801
812
808
809
811
813
ns
ns
814
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
Ver. 1.1 2012.05
