NW-A1000
5
Note: Follow the disassembly procedure in the numerical order given.
3-2. CABINET (LOWER)
• This set can be disassembled in the order shown below.

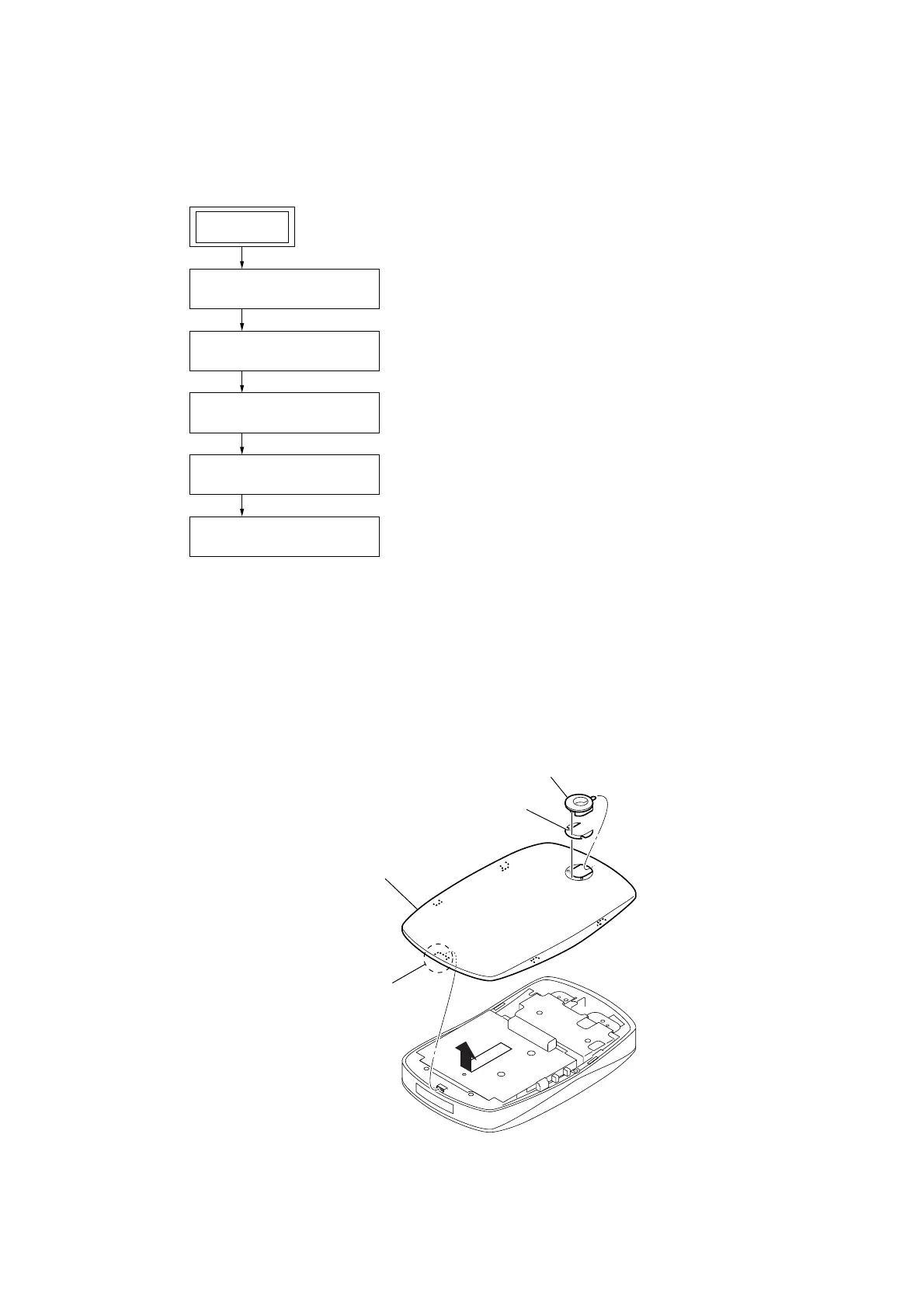

3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
3
claw
1
ornament (strap)
2
adhesive sheet (strap)
4
Remove the cabinet (lower)
in the direction of the arrow.
Note: Execute the confirmation and the inspection of the correct repair of all parts after it repairs.
And, install ornament (strap) and adhesive sheet (strap) after confirming the repair ended completely.
3-2. CASE (LOWER)
(Page 5)
3-3. LITHIUM ION BATTERY
(Page 6)
3-4. CABINET (INNER)
(Page 6)
3-5. EL BLOCK SUB ASSY
(Page 7)
3-6. MAIN BOARD
(Page 7)
SET
To Next Page
