9

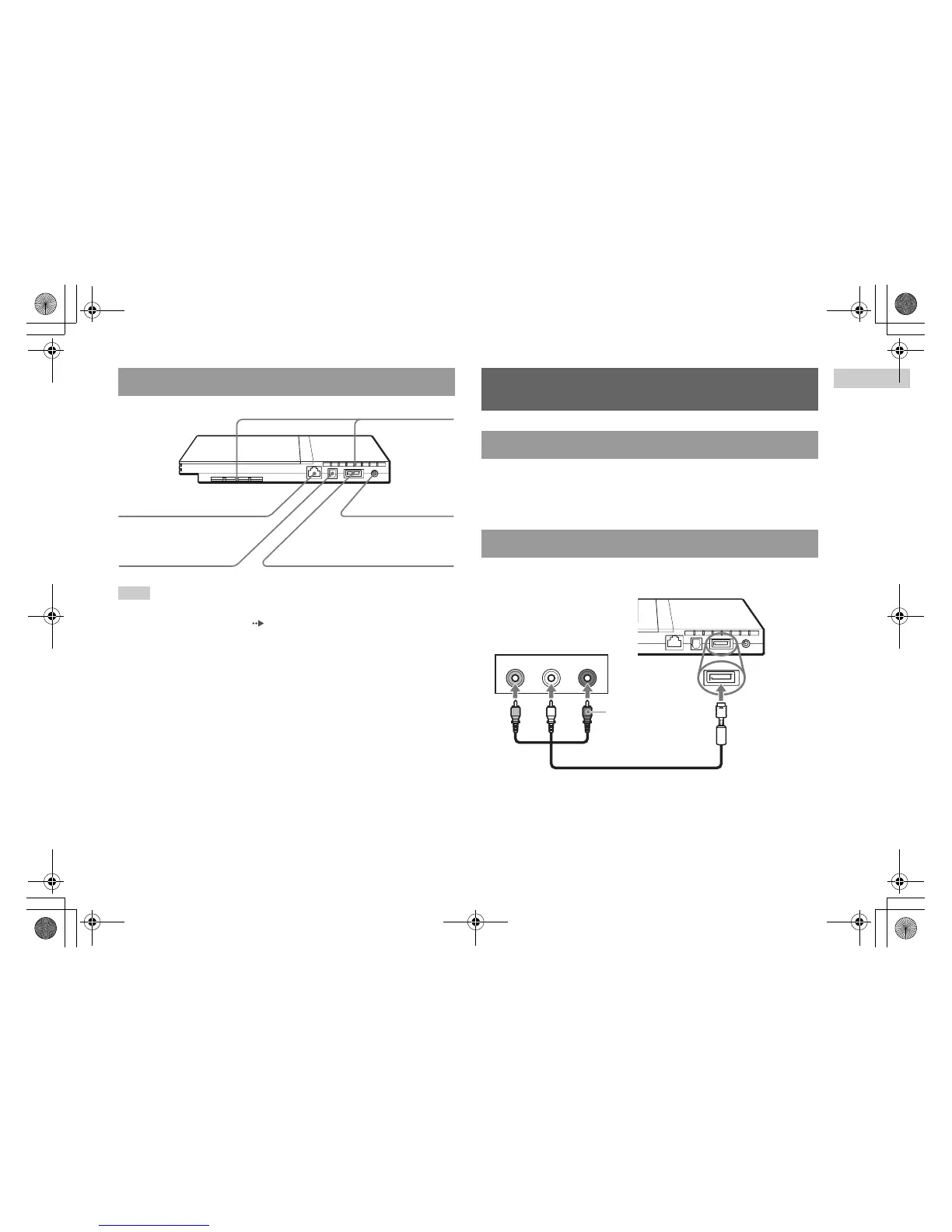

Connecting to a TV
Preparation
Note
For part names of the Analog Controller (DUALSHOCK®2), see "Using the Analog
Controller (DUALSHOCK®2)" ( page 17).
• Do not plug the AC power cord for the console into the electrical outlet
until you have made all other connections.
• Check that the TV is turned off.
Connect the console to the TV as shown below.
PlayStation®2 console rear
Rear vent
! DC IN 8.5V
connector
AV MULTI OUT connector
DIGITAL OUT (OPTICAL)
connector
NETWORK connector
Connecting to a TV
Before connecting
Connecting to a TV using the supplied AV Cable
VIDEO L-AUDIO-R
Audio and video inputs of the TV
Do not use when
connecting to a
monaural TV.
AV Cable (integrated audio/video)
Console rear
White RedYellow
To the AV MULTI
OUT connector
01GB01COV.book Page 9 Wednesday, July 7, 2004 3:28 PM

Sony Playstation 2 Specifications

General

Product color	Black
Optical drive type	CD
Card reader integrated	Yes
Built-in display	No
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	152 mm
Width	230 mm
Height	28 mm
Weight	720 g
