SA-WP16
SECTION 2
EXPLODED VIEWS
14-874-614-02 SCREW (1) (3.5X14), TAPPING
2 A-1223-235-A WOOFER RING ASSY
SP901 1-826-607-11 LOUD SPEAKER (25cm)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
•Abbreviation
AR : Argentina model
AUS: Australian model
E51 : Chilean and Peruvian model
MX : Mexican model
MY : Malaysia model
SP : Singapore model
TH : Thai model

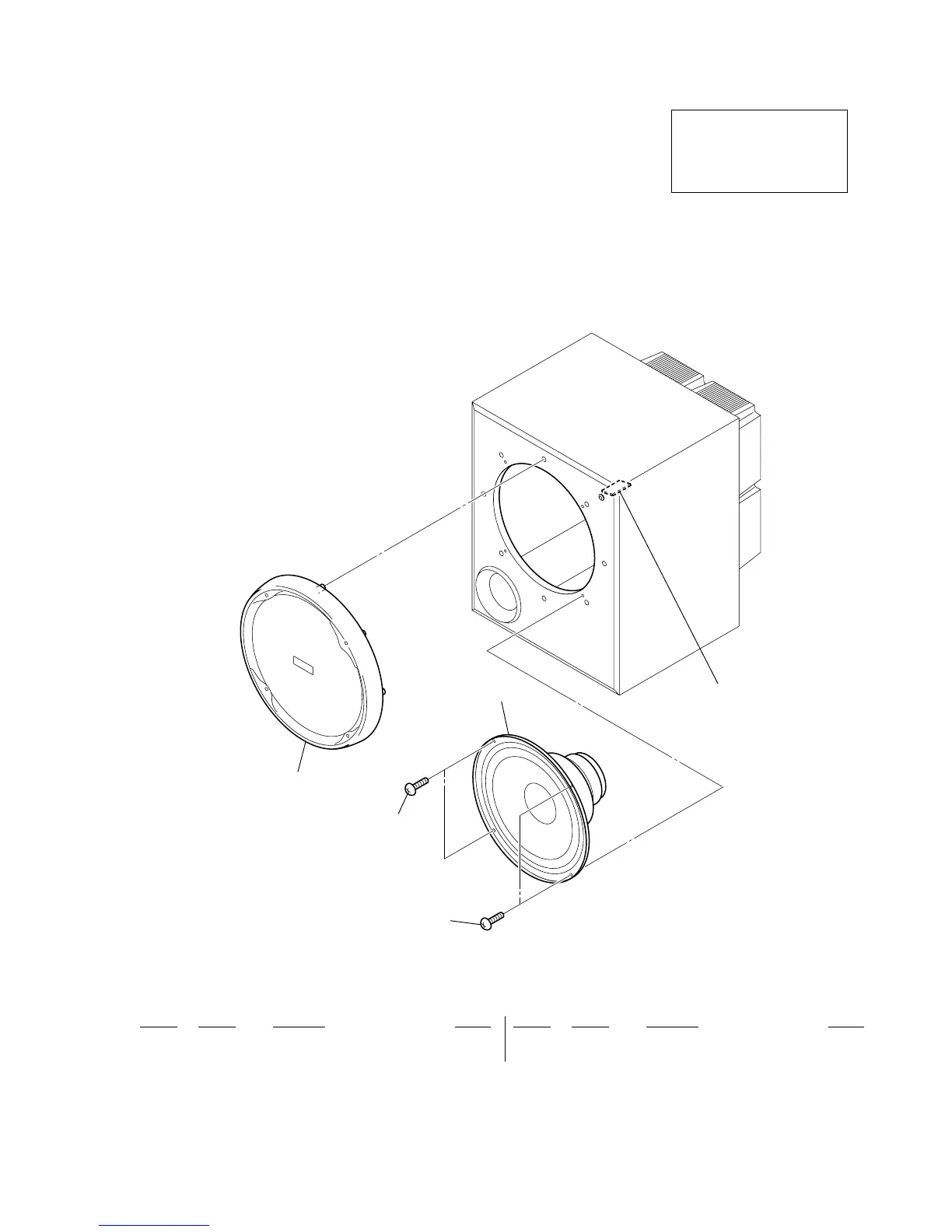

2-1. FRONT SECTION
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
SP901
not supplied
(LED board
To Next Page
