SA-WP16
51 4-999-482-91 KNOB (VOL)
0 52 1-777-071-23 CORD, POWER (E51,MY,SP,TH)
0 52 1-783-941-12 CORD, POWER (AR)
0 52 1-696-848-81 CORD, POWER (AUS)
0 52 1-829-627-11 POWER-SUPPLY CORD (MX)
53 2-580-637-01 SCREW, +BVST 4X12
54 4-874-614-02 SCREW (1) (3.5X14), TAPPING
55 4-986-971-02 SCREW (3.5)
* 56 3-703-244-00 BUSHING (2104), CORD
57 4-244-832-51 KNOB (POWER)
58 3-905-609-31 SCREW (TRANSISTOR)
59 A-1237-508-A MAIN BOARD, COMPLETE (MX)
59 A-1242-431-A MAIN BOARD, COMPLETE (E51)
59 A-1243-233-A MAIN BOARD, COMPLETE (MY,SP,TH)
59 A-1243-236-A MAIN BOARD, COMPLETE (AUS)
59 A-1243-242-A MAIN BOARD, COMPLETE (AR)
0 60 1-569-008-22 ADAPTOR, CONVERSION 2P (E51)
0 F900 1-532-463-33 FUSE (1A/250V) (E51)
0 F901 1-532-463-33 FUSE (1A/250V) (EXCEPT E51)
0 F901 1-533-690-12 FUSE, GLASS CYLINDRICAL (DIA5)
(3.15A/125V) (E51)
0 F902 1-532-463-33 FUSE (1A/250V) (E51)
Q307 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q308 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 T1 1-443-883-11 TRANSFORMER, POWER (E51)
0 T1 1-443-886-21 TRANSFORMER, POWER (AUS,AR,MY,SP,TH)
0 T1 1-445-016-11 TRANSFORMER, POWER (MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

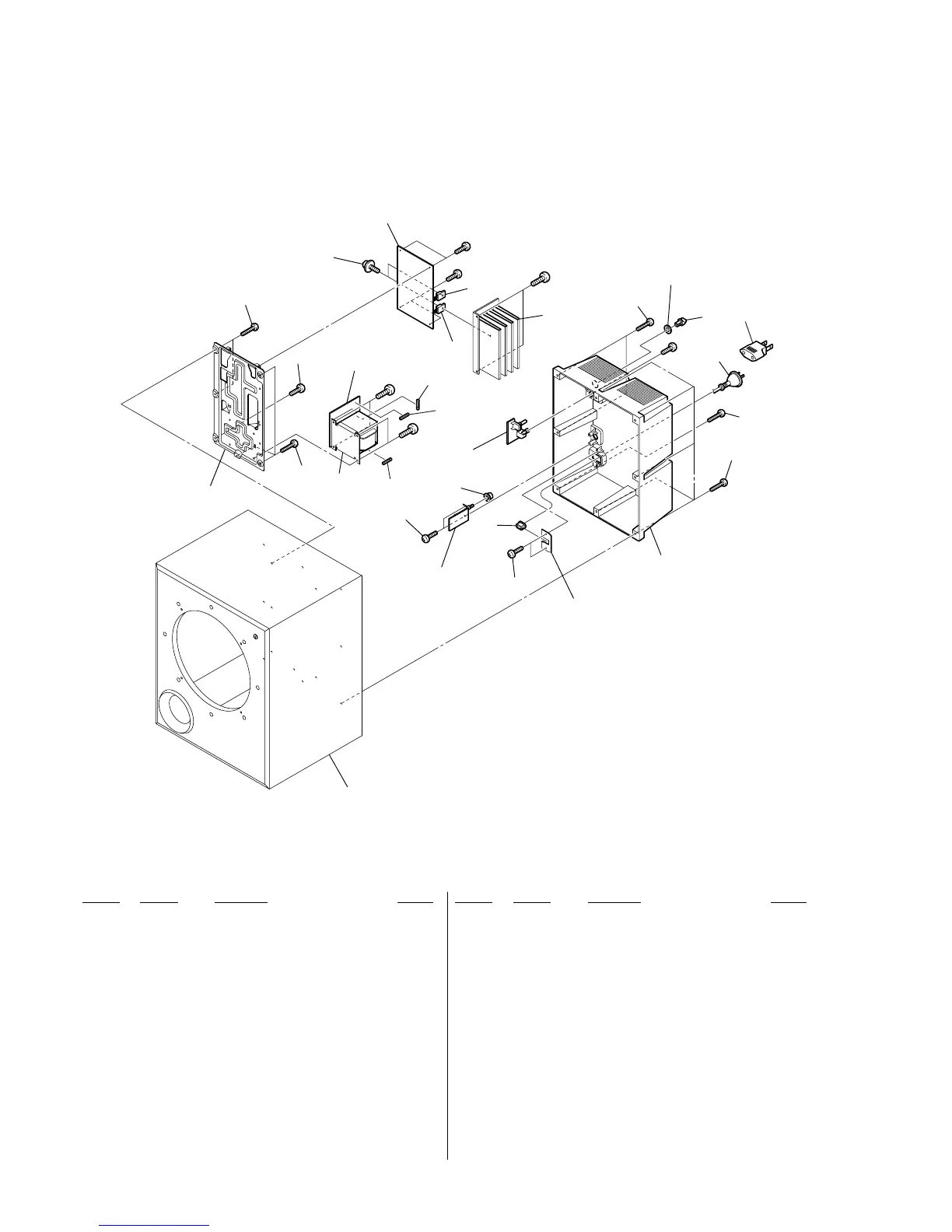

2-2. REAR SECTION
F901
Q307
Q308
T1
not supplied
51
52
53
53
54
54
54
54
55
55
57
58
59
56
supplied with RV801
not supplied
not supplied
not supplied
not supplied
not supplied
(SWITCH board)
not supplied
(INPUT CONTROL board)
not supplied
(TRANS board)
#1
#1
#1
#2
#2
#2
F900
F902
60
Ver. 1.1
