61
HCD-F200/F500

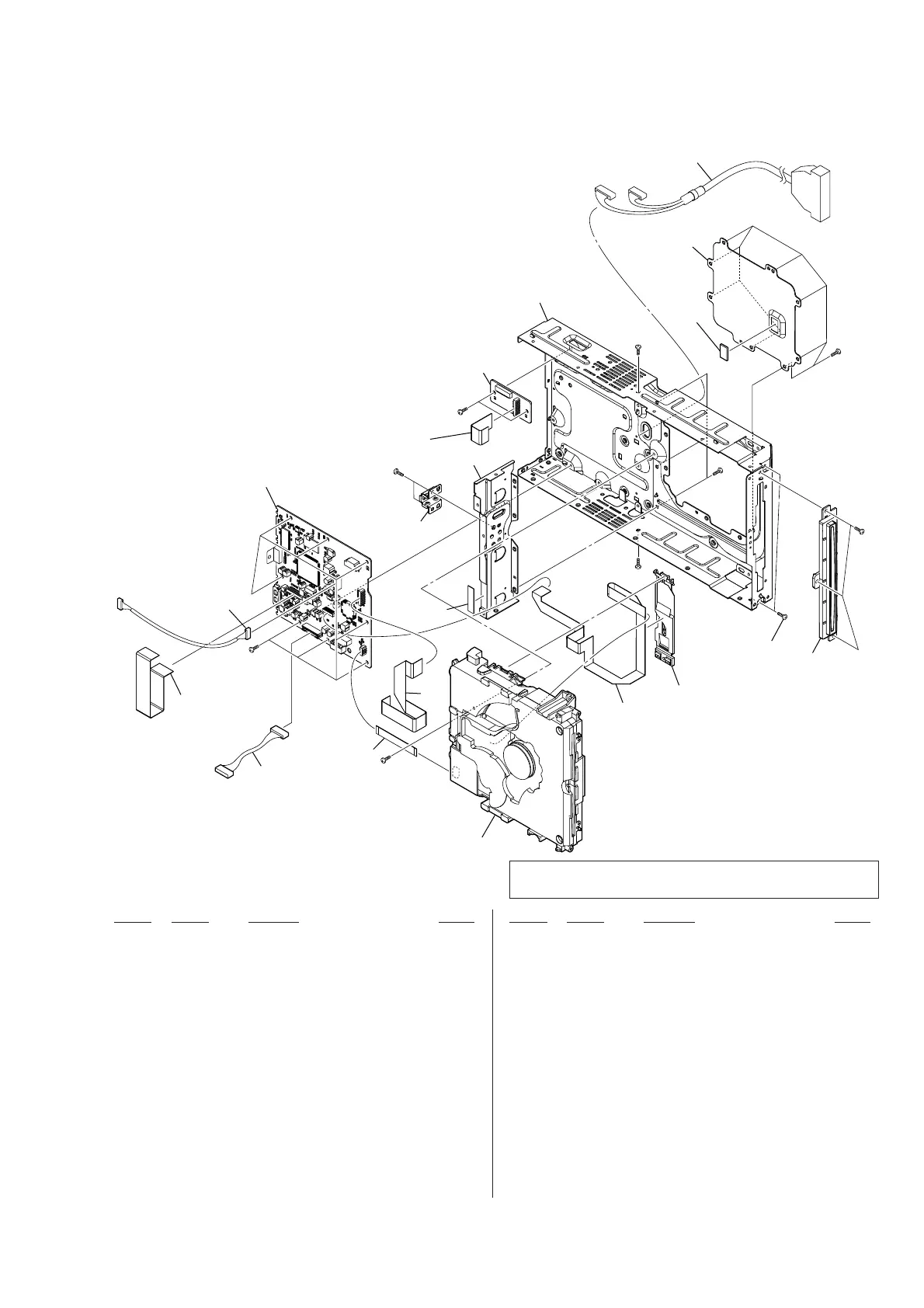

7-4. CHASSIS SECTION
151 1-828-298-11 WIRE (FLAT TYPE) (7 CORE)
152 1-828-341-11 WIRE (FLAT TYPE) (15 CORE)
153 1-828-360-11 WIRE (FLAT TYPE) (19 CORE)
9 154 A-1545-114-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F200: AEP, UK)
9 154 A-1545-115-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F200: SP, TH)
9 154 A-1545-116-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: RU)
9 154 A-1545-117-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: CND)
9 154 A-1545-118-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: SP, TW, TH)
9 154 A-1545-120-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: KR)
9 154 A-1545-121-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: E3, E15, EA)
9 154 A-1545-122-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: AUS)
9 154 A-1545-123-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: E32)
9 154 A-1545-124-A DMB-FIT BOARD, COMPLETE (for SERVICE)
(F500: MX)
155 1-828-347-11 WIRE (FLAT TYPE) (17 CORE)
156 1-833-994-21 CABLE, SYSTEM
157 4-225-252-01 CUSHION (FOOT)
158 3-087-053-01 +BVTP2.6 (3CR)
159 1-828-253-51 WIRE (FLAT TYPE) (24 CORE)
160 A-1547-636-A PANEL (SLOT) ASSY (SERVICE)
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
156
158
157
160
159
151
153
154
155
152
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#2
#3
#2
#2
#2
#2
#
3
#2
not supplied
(CENTER board)
DVD mechanism deck section-1
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
Ver. 1.1
