10
SA-WX700
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

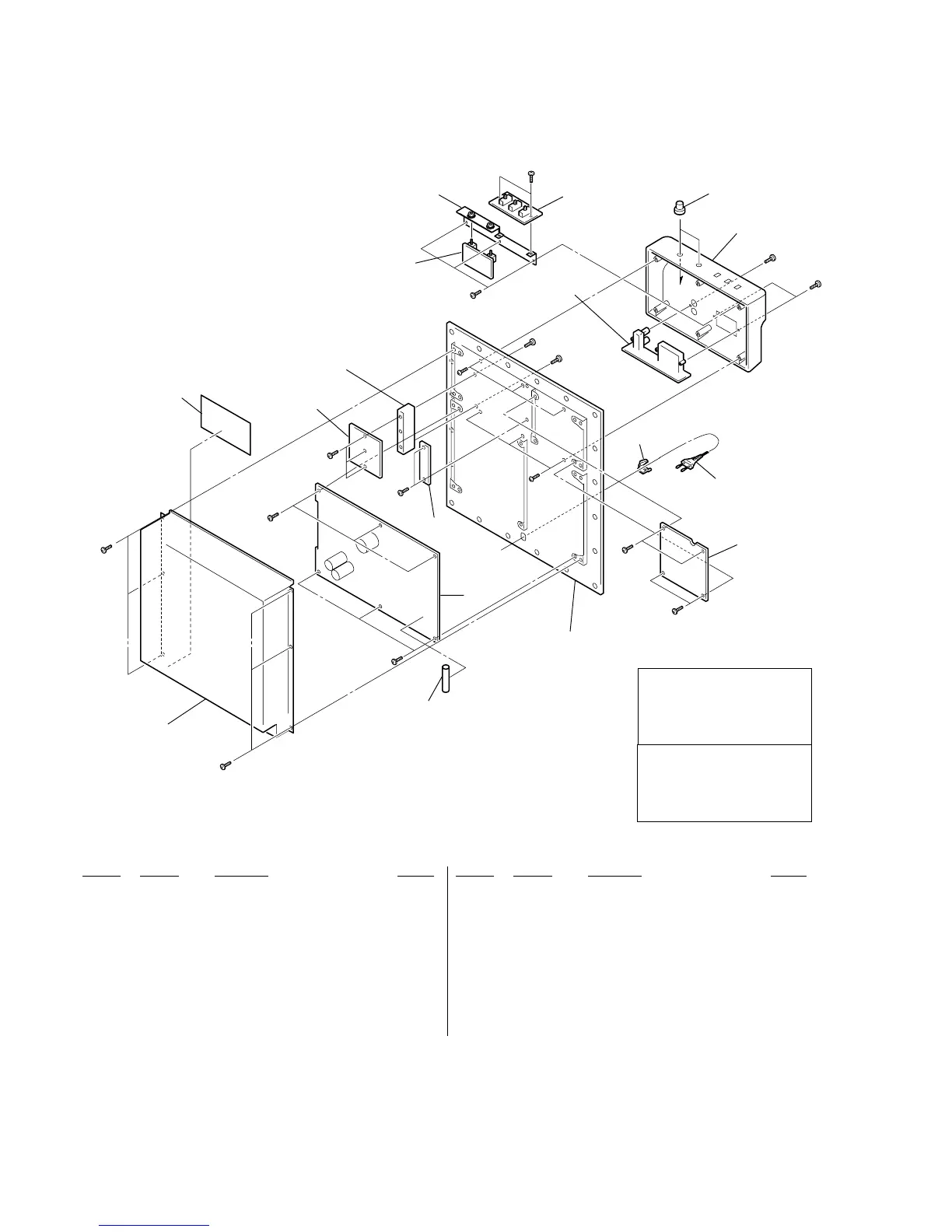

3-2. REAR PANEL SECTION
51 A-4734-240-A POWER BOARD, COMPLETE (US,CND)
51 A-4734-251-A POWER BOARD, COMPLETE (AEP,UK)
54 4-228-138-01 KNOB (VOL)
56 4-246-152-01 PANEL, CONTROL
* 57 3-703-244-00 BUSHING (2104), CORD
0 58 1-696-570-21 CORD, POWER (UK)
0 58 1-769-744-52 CORD, POWER (AEP)
0 58 1-783-531-11 CORD, POWER (US,CND)
59 1-688-703-11 FILTER BOARD
60 6-700-752-01 ICE250A-SW
61 2-148-650-01 INSULATOR PLATE
0 F801 1-532-504-31 FUSE (4A/250V)(AEP,UK)
0 F801 1-532-594-11 FUSE, GLASS TUBE (6.3A/125V)(US,CND)
#1 4-229-966-11 SCREW (4X16), +BV TAPPING
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#5 4-229-966-01 SCREW (4X16), +BV TAPPING
#6 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
60
54
56
57
58
59
51
#3
#3
#1
#6
#
To Next Page
