Sony STR-DE545 Service Manual

STR-DE445/DE545/SE501
12 12

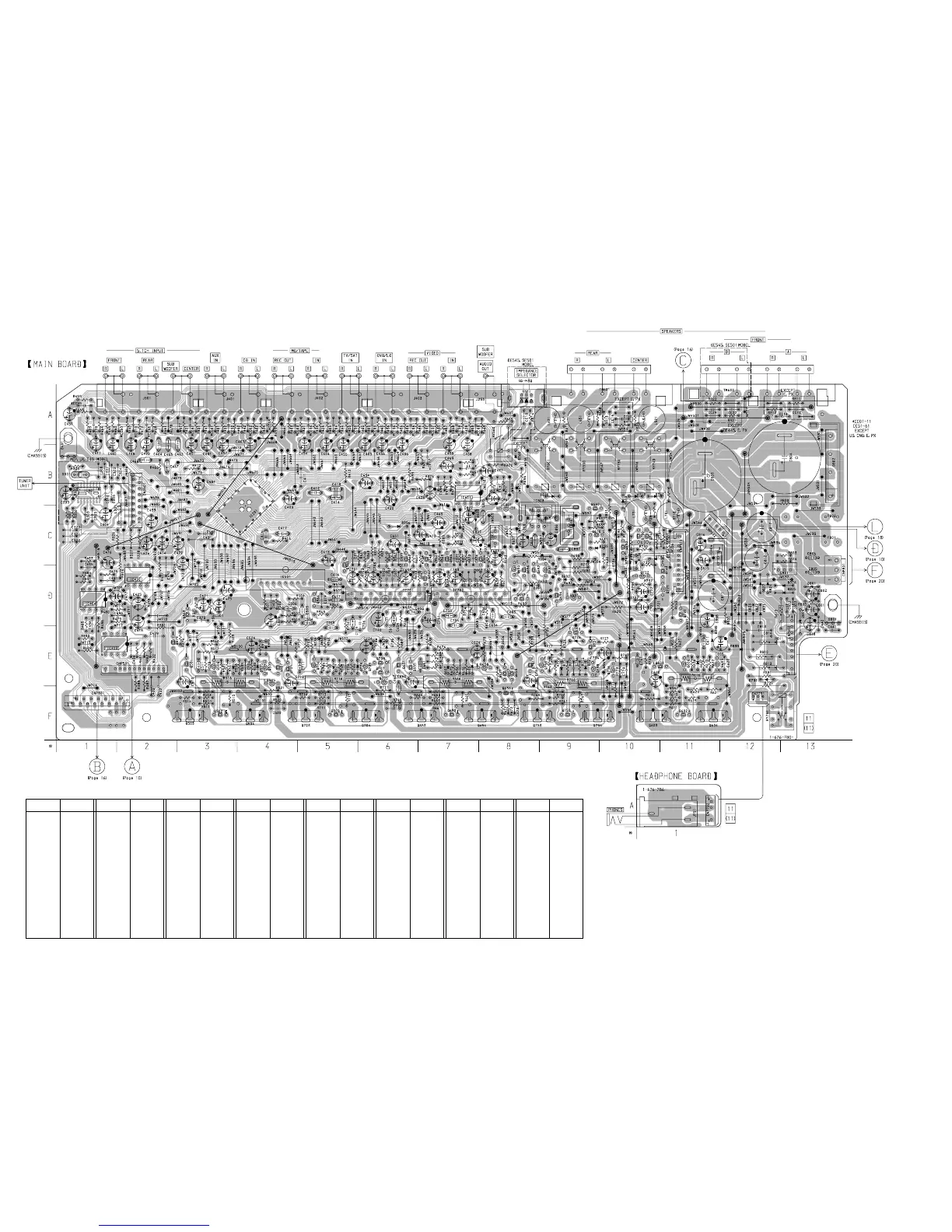

3-5. PRINTED WIRING BOARD — MAIN SECTION —
• See page 7 for Circuit Boards Location.
D505 E-4
D506 E-4
D508 E-3
D510 B-10
D560 B-8
D605 E-7
D606 E-8
D607 E-7
D610 B-9
D617 E-8
D627 E-11
D691 D-8
D692 D-9
D706 E-6
D710 B-10
D721 D-10
D722 D-10
D725 E-9
D726 E-9
D727 E-5
D728 E-5
D731 C-10
D732 C-11
D734 D-10
D735 C-9
D736 C-10
D740 B-10
D757 E-9
D791 E-12
D801 D-13
D802 B-13
D804 D-13
Ref. No. Location
• Semiconductor Location
Ref. No. Location Ref. No. Location Ref. No. Location
D820 D-12
D821 D-12
D822 D-12
D823 D-12
D824 D-12
D825 D-13
D826 D-13
D827 D-12
D833 C-7
D896 C-6
D898 E-11
D899 E-12
IC201 C-4
IC301 B-1
IC401 B-7
IC402 D-2
IC403 E-1
IC404 D-1
IC501 D-4
IC701 D-6
IC702 D-7
IC801 C-8
IC802 C-9
IC803 C-9
IC804 C-11
IC806 C-9
IC807 C-8
Q361 C-5
Q362 C-6
Q363 D-3
Q364 D-5
Q365 C-7
Q366 C-8
Q379 E-2
Q501 E-3
Q502 F-3
Q503 F-3
Q504 F-4
Q505 E-4
Q506 E-3
Q507 E-4
Q509 E-4
Q550 C-10
Q560 C-9
Q601 E-11
Q602 F-11
Q603 F-10
Q604 F-11
Q605 E-11
Q606 E-11
Q610 C-9
Q651 E-6
Q652 F-7
Q653 F-7
Q654 F-8
Q655 E-6
Q656 F-8
Q657 E-8
Q658 E-8
Q659 E-8
Q691 D-9
Q692 D-8
Q693 D-9
Q694 D-9
Q695 D-8
Q696 D-8
Q697 D-8
Q701 E-4
Q702 F-5
Q703 F-5
Q704 F-6
Q705 E-6
Q706 E-5
Q707 E-6
Q708 E-6
Q709 E-6
Q722 D-10
Q723 D-11
Q725 D-11
Q730 C-10
Q740 C-10
Q747 D-7
Q748 C-7
Q751 E-8
Q752 E-9
Q753 F-8
Q754 F-9
Q755 E-9
Q756 E-10
Q757 E-9
Q758 E-9
Q759 E-9
Q791 D-11
Q801 D-13
Ref. No. Location
Ref. No. Location
Ref. No. Location
Ref. No. Location
