STR-DE445/DE545/SE501
20 20

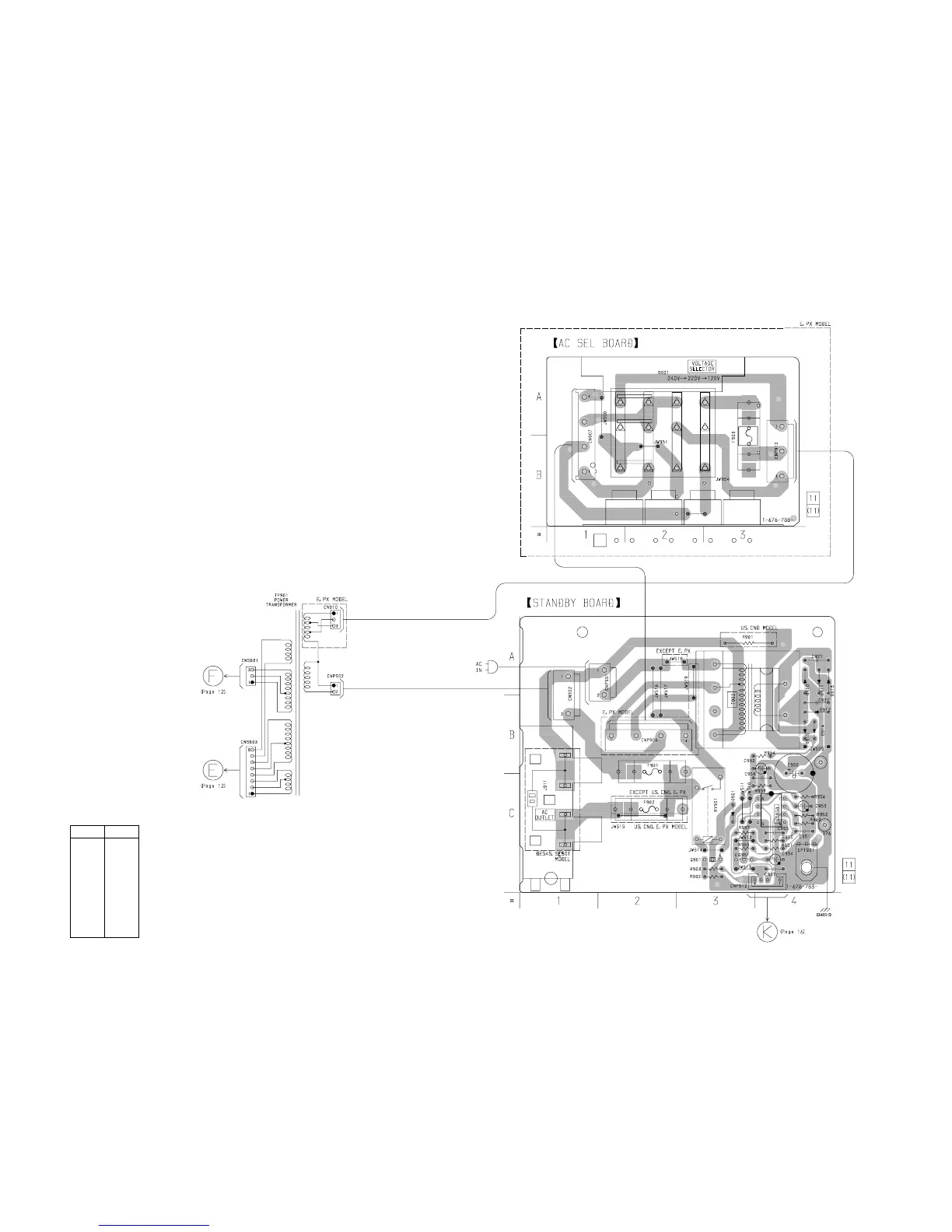

3-13. PRINTED WIRING BOARD — POWER SUPPLY SECTION —
• See page 7 for Circuit Boards Location.
Ref. No. Location
D901 C-3
D910 A-4
D911 A-4
D912 B-4
D913 A-4
D914 B-4
D915 B-4
IC950 C-4
Q901 C-3
Q951 C-3
• Semiconductor
Location
