Sony STR-DE635 Service Manual

STR-DE635
— 23 — — 24 —

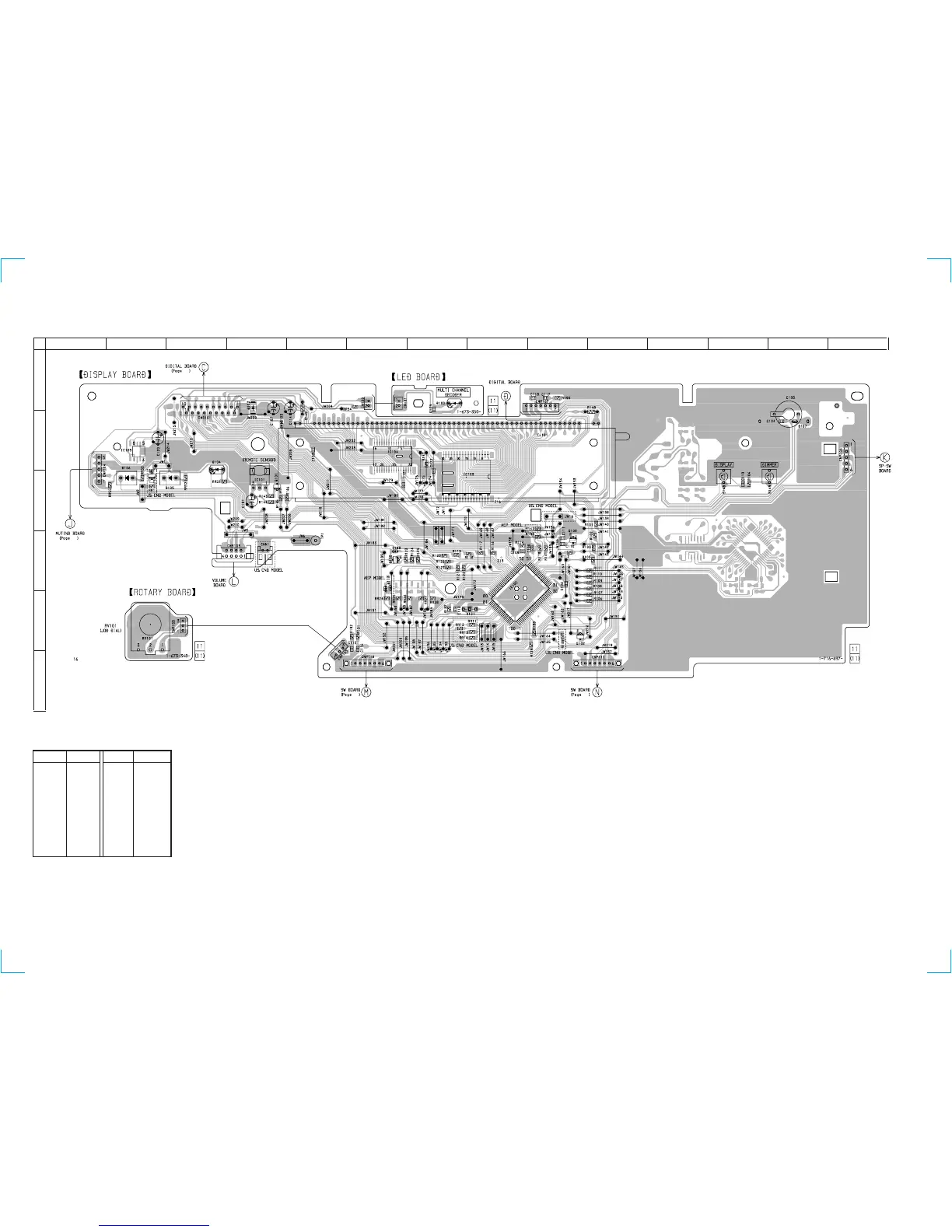

4-9. PRINTED WIRING BOARD DISPLAY SECTION • See page 11 for Circuit Boards Location.
(Page 40)
(Page 28)
(Page 22)
27
21
27
28
D108
12
A
B
C
D
E
F
34567891011121314
Ref. No. Location
D102 A-4
D103 B-4
D104 B-3
D105 C-3
D106 C-2
D107 B-13
D108 D-6
D113 D-6
D180 D-6
• Semiconductor
Location
Ref. No. Location
IC101 C-4
IC102 E-8
IC103 C-7
IC104 B-6
IC105 B-2
Q101 C-4
Q102 E-9
Q108 D-9
Q109 D-6
QQ1 C-2

Sony STR-DE635 Specifications

General

Impedance	8 ohms
Total Harmonic Distortion	0.09%
Speaker Load Impedance	8 ohms
Video Connections	Composite
Power Output	100W + 100W (8 ohms, 20Hz-20kHz, THD 0.09%)
Inputs	Video 1, Video 2, Video 3
Dimensions	430 x 157.5 x 295 mm
Tuning Range	FM
Input Sensitivity	2.5mV (MM), 150mV (line)
Digital Inputs	Optical x 1, Coaxial x 1
