Sony STR-DE635 Service Manual

STR-DE635
— 25 — — 26 —

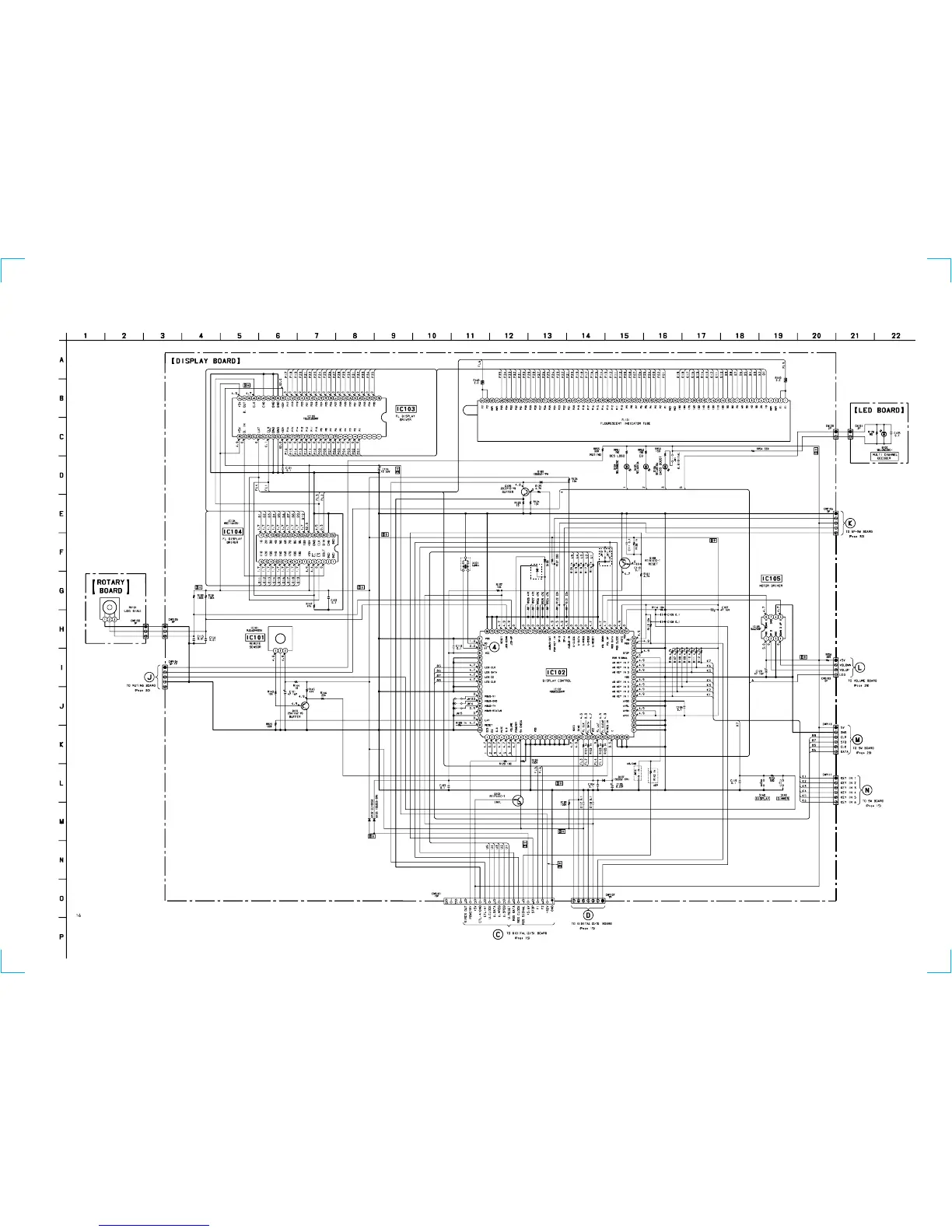

4-10. SCHEMATIC DIAGRAM DISPLAY SECTION • See page 12 for Waveforms. • See page 56 for IC Pin Functions. • See page 59 for IC Block Diagrams.
D113
AEP MODEL
EXCEPT AEP

Sony STR-DE635 Specifications

General

Impedance	8 ohms
Total Harmonic Distortion	0.09%
Speaker Load Impedance	8 ohms
Video Connections	Composite
Power Output	100W + 100W (8 ohms, 20Hz-20kHz, THD 0.09%)
Inputs	Video 1, Video 2, Video 3
Dimensions	430 x 157.5 x 295 mm
Tuning Range	FM
Input Sensitivity	2.5mV (MM), 150mV (line)
Digital Inputs	Optical x 1, Coaxial x 1
