99
STR-DE675
SECTION 3
DIAGRAMS

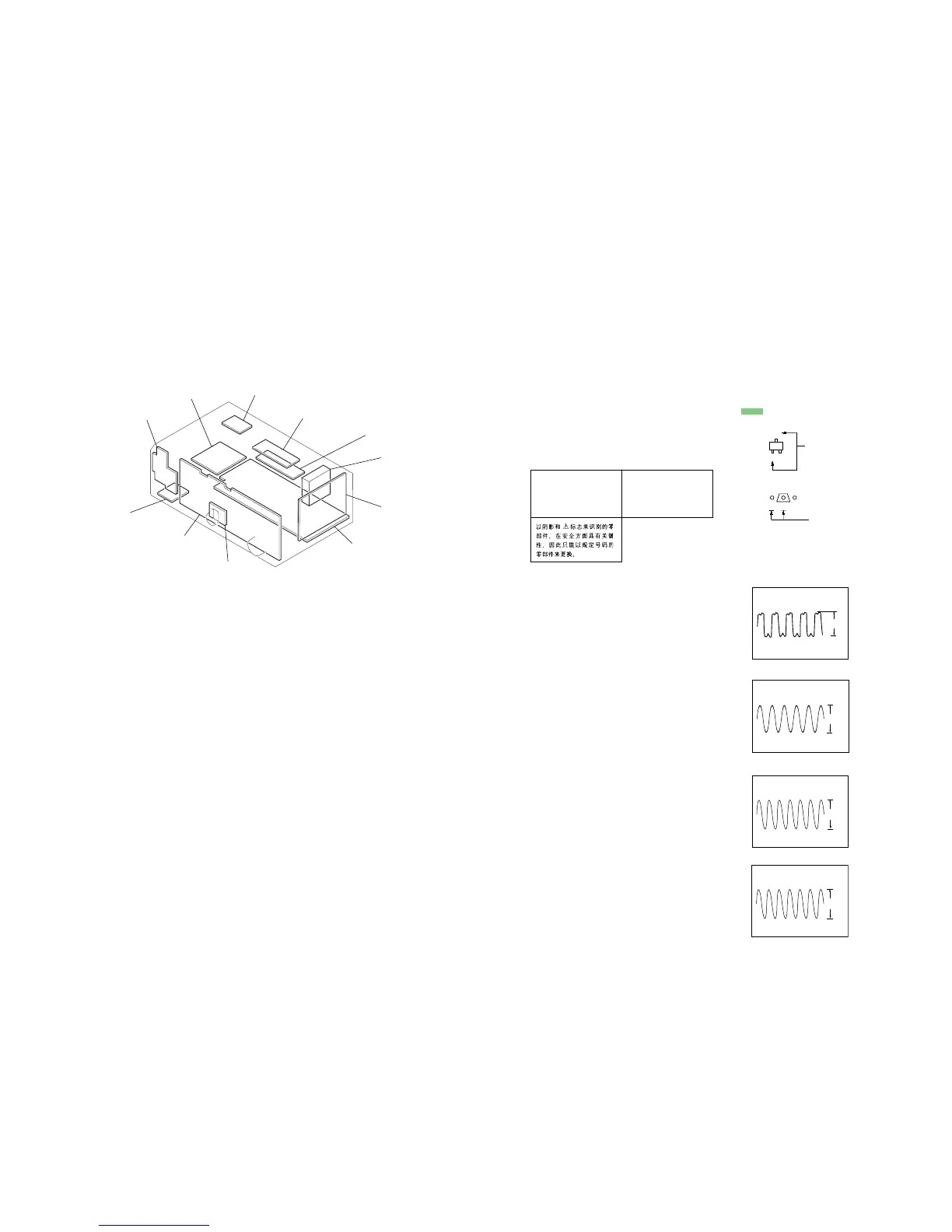

3-1. CIRCUIT BOARDS LOCATION
For schematic diagrams.
Note:
All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
% : indicates tolerance.
f
: internal component.
2 : nonflammable resistor.
1 : fusible resistor.
C : panel designation.
A : B+ Line.
B : B– Line.
H : adjustment for repair.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
No mark : FM
Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal produc-
tion tolerances.
Waveforms are taken with a oscilloscope.
Circled numbers refer to waveforms.
Signal path.
F : FM
J : CD (ANALOG)
c : DVD (DIGITAL)
Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
TW : Taiwan model
KR : Korea model
MX : Mexican model
AR : Argentina model
CH : Chinese model
AUS : Australian model
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in each
block.)
Note:
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
• Waveform
DIGITAL Board
C
B
These are omitted.
E
Q
B
These are omitted.
CE
1 IC1101 wa (XOUT)
4.4Vp-p
12.288MHz
2 IC1201 9 (MCLK)
3.3Vp-p
13.3MHz
3 IC1301 qf (XO)
2.2Vp-p
4.3MHz
AC SEL board (E model)
IMPEDANCE SELECT board (US, Canadian model)
VIDEO board
DIGITAL board
TUNER UNIT
MAIN board
JOG board
DISPLAY board
HEADPHONE board
POWER SWITCH board
STBY board
S-VIDEO board
For printed wiring boards.
Note:
X : parts extracted from the component side.
a
: Through hole.
f
: internal component.
: Pattern from the side which enables seeing.
4 IC1601 id (XI)
2.8Vp-p
20MHz
