STR-DE835/DE935/SE591/V828
— 17 — — 18 —

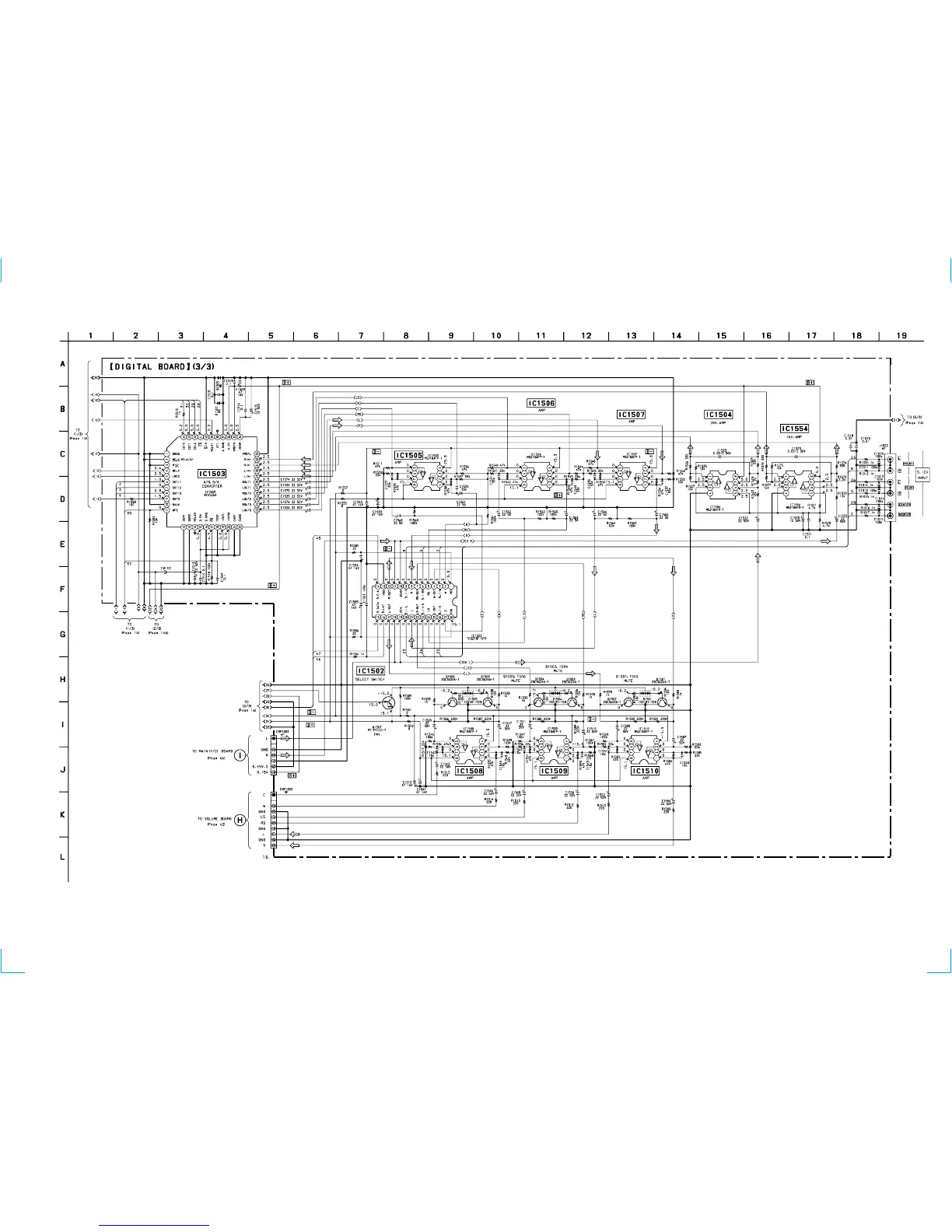

4-6. SCHEMATIC DIAGRAM DIGITAL SECTION(3/3) • See page 19 for printed wirig board. • See page 54 for IC Pin Functions. • See page 59 for IC Block Diagrams.
