9
STR-K7000

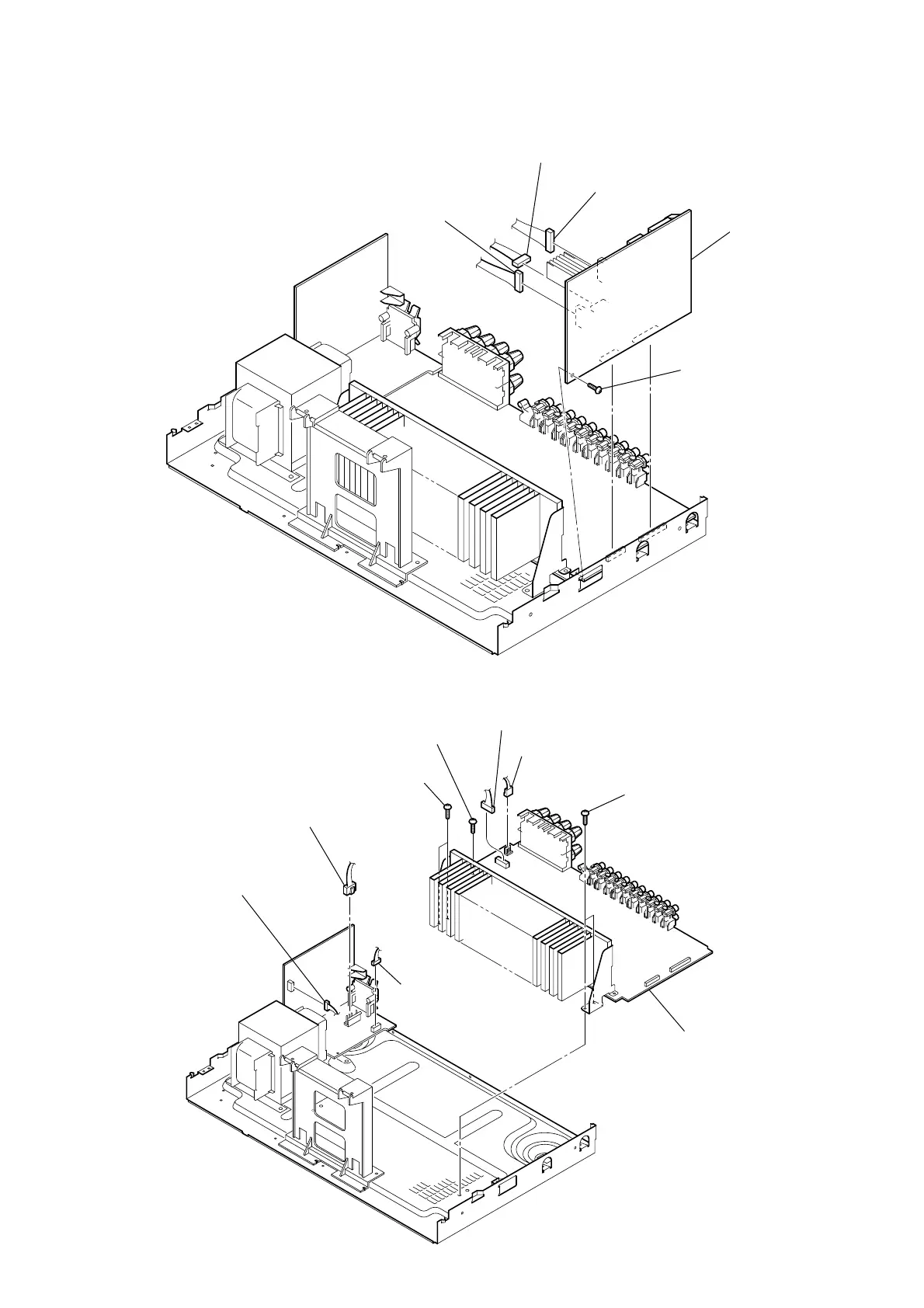

2-4. DIGITAL BOARD
2-5. MAIN BOARD SECTION
4
screw
(+BVTP 3
×
8)
5
DIGITAL boar
d
1
CNP505 (10P)
2
CNP503 (5P)
3
CNP504 (7P)
6
two
screws
(+BV3 (3
-CR)
)
9
MAIN board section
7
two
screws
(+BV3 (3
-CR)
)
8
screw
(+BV3 (3
-CR)
)
1
CNP600 (5P)
5
CNP801 (3P)
4
CNP802 (5P)
2
CNP601 (4P)
3
CNP801 (5P)
