5
US

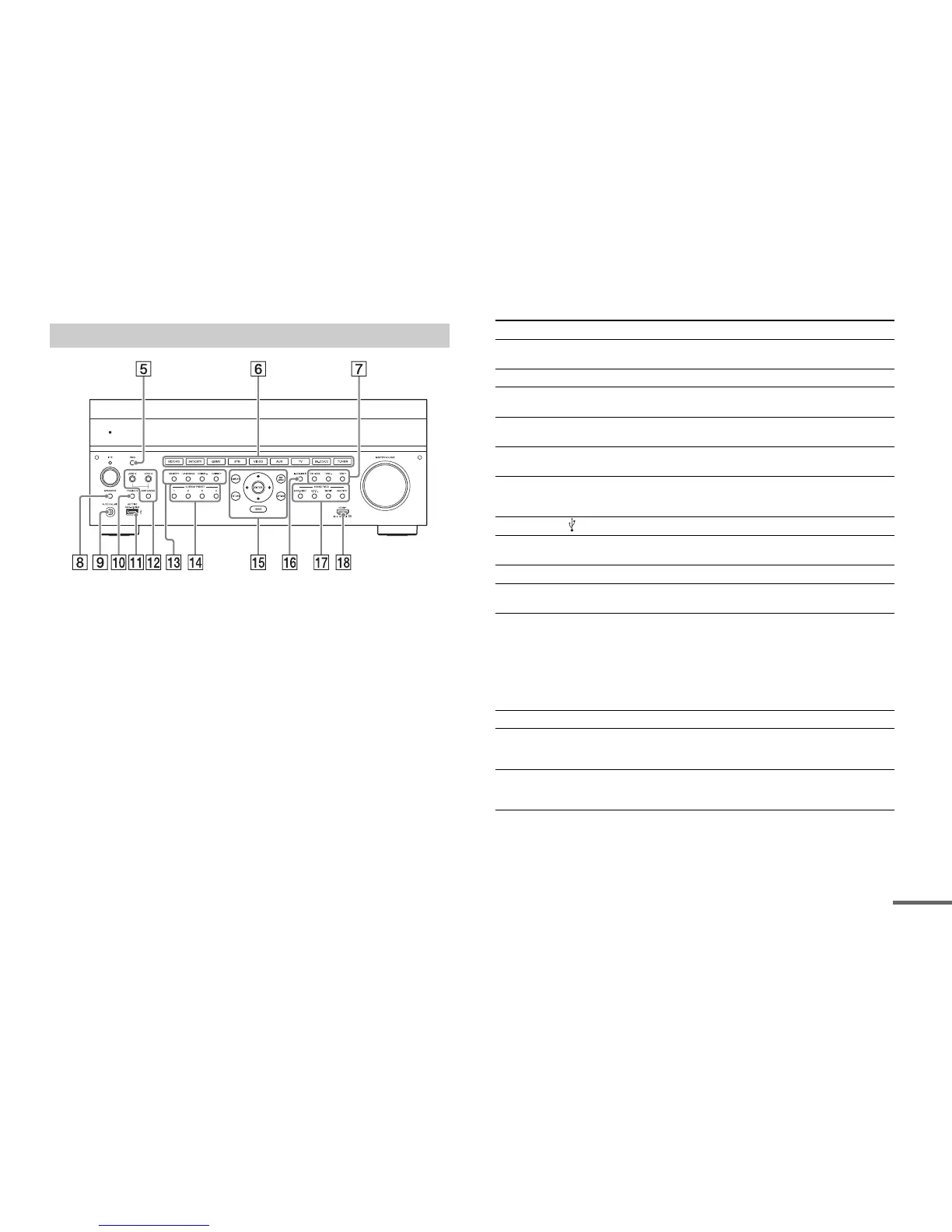

Front panel
Parts Functions
PING Displays the IP address and MAC address on
the display panel.
Input buttons Selects the device you want to use.
TONE MODE, TONE+/– Press to adjust the bass/treble level of the
speaker.
SPEAKERS Switches the front speakers to OFF, A, B or
A+B.
AUTO CAL MIC jack Connect the supplied optimizer microphone
for “Auto Calibration” to this jack.
HDMI OUT Switches the output for two monitors
connected to the HDMI OUT A and HDMI OUT
B jacks.
SETTING ( (USB) port) Used for maintenance and service.
ZONE CONTROL (ZONE2,
ZONE3)
Selects the location to be controlled.
Tuner control buttons Used for tuner operations.
CUSTOM PRESET (1, 2, 3,
4)
Saves and recalls various settings for the
receiver.
Menu operation buttons Used for menu operations displayed on the
TV screen and the display panel of the
receiver.
HOME
Displays the home menu on the TV screen.
AMP MENU
Displays the menu on the display panel of the
receiver to operate the receiver.
IN-CEILING SP Activates the In-Ceiling Speaker Mode.
SOUND FIELD (2CH/
A.DIRECT, A.F.D., MOVIE,
MULTI ST.)
Selects the sound field you want.
HDMI IN 6 (GAME) jack
(for STR-ZA3000ES/STR-
ZA2000ES only)
Connect to a video game console. The video
and sound from your video game console is
input.
