Sony TA-F419R Service Manual

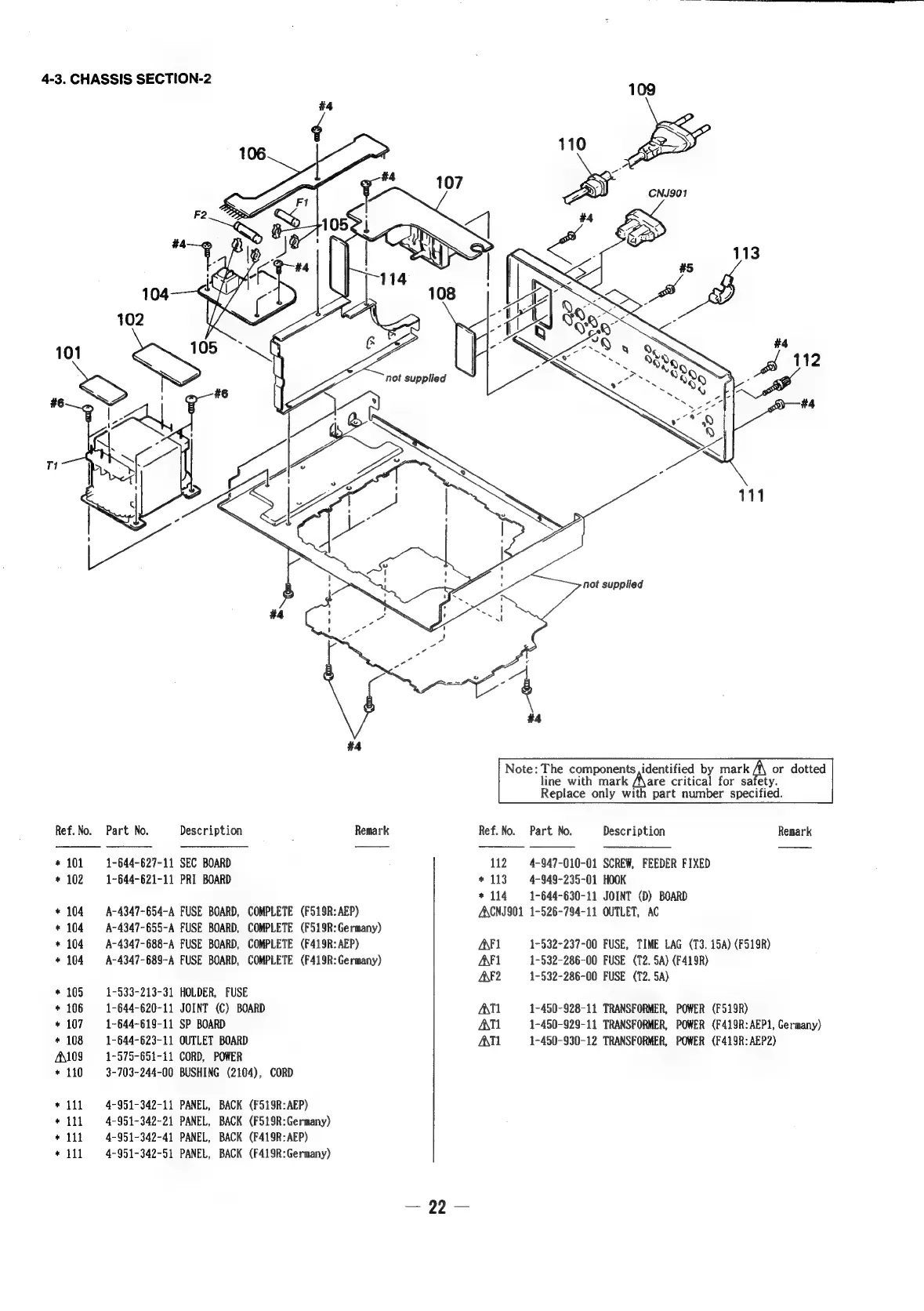

4-3. CHASSIS SECTION-2
Ref. No.
* 101
* 102
104
104
104
104
* + & &
105
106
107
108
A109
* 110
+ *£ & €
111
111
11th
111
> * © &
Part No. Description Remark
1-644-627-11 SEC BOARD
1~644-621-11 PRI BOARD
A-4347-654-A FUSE BOARD, COMPLETE (F519R: AEP)
A-4347-655-A FUSE BOARD, COMPLETE (F519R:Germany)
A-4347-688-A FUSE BOARD, COMPLETE (F419R:AEP)
A-4347-689-A FUSE BOARD, COMPLETE (F419R: Germany)
1-533-213-31 HOLDER, FUSE
1-644-620-11 JOINT (C) BOARD
1-644-619-11 SP BOARD
1-644-623-11 OUTLET BOARD
1-575-651-11 CORD, POWER
3-703-244-00 BUSHING (2104), CORD
4-951-342-11 PANEL, BACK (F519R:AEP)
4-951-342-21 PANEL, BACK (F519R:Germany)
4-951-342-41 PANEL, BACK (F419R:AEP)
4-951-342-51 PANEL, BACK (F419R:Germany)
fo]
CNJ901
Note: The components identified by mark A\ or dotted
line with mark Aare critical for safety.
Replace only with part number specified.
Ref. No.
112
* 113
* 114
ANCNJ901
AFI
AFI
Ak2
ANTI
AT
AT
Part No. Description Remark
4-947-010-01 SCREW, FEEDER FIXED
4-949-235-01 HOOK
1-644-630-11 JOINT (D) BOARD
1-526-794-11 OUTLET, AC
1-532-237-00 FUSE, TIME LAG (T3. 15A) (F519R)
1-532-286-00 FUSE (T2. 5A) (F419R)
1-532-286-00 FUSE (T2. 5A)
1-450-928-11 TRANSFORMER, POWER (F519R)
1-450-929-11 TRANSFORMER, POWER (F419R:AEP1, Germany)
1-450-930-12 TRANSFORMER, POWER (F419R:AEP2)
