Sony TA-F419R Service Manual

NOTE:
@ Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
@ -XX and -X mean standardized parts, so
they may have some difference from the

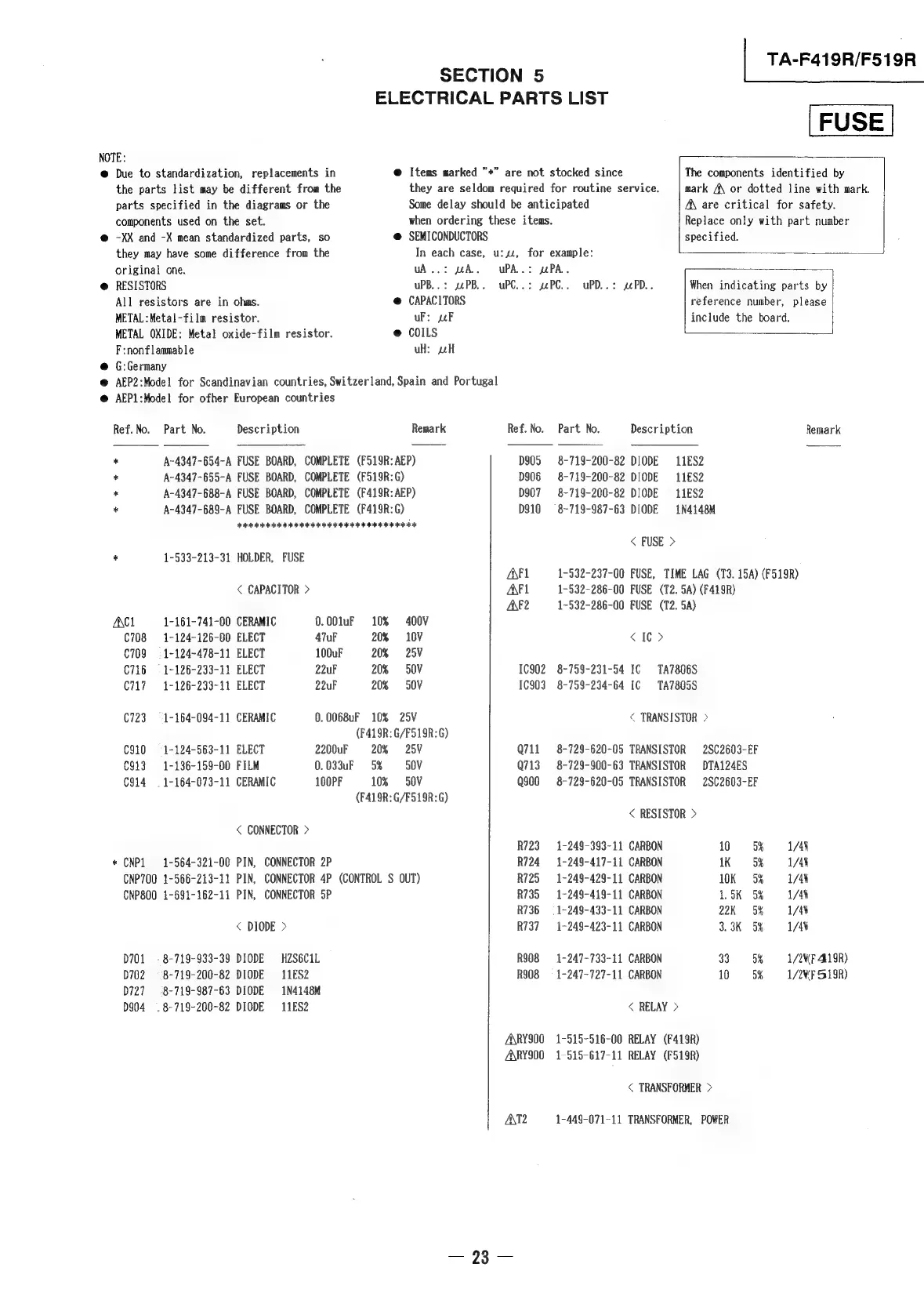

SECTION 5
ELECTRICAL PARTS LIST
@ Items marked "*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
@ SEMICONDUCTORS
In each case, u:zz, for example:
| TA-F419R/F519R
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.
original one. uA..: uA. uPA.: uPA.
@ RESISTORS uPB..: PB... uPC..: gePC.. uPD..: xPD.. When indicating parts by
All resistors are in ohms. @ CAPACITORS reference number, please
METAL: Metal-film resistor. uF: uF include the board.
METAL OXIDE: Metal oxide-film resistor. e@ COILS
F:nonflammable uH: xH
@ G:Germany
@ AEP2:Mode! for Scandinavian countries, Switzerland, Spain and Portugal
@ AEP1:Model for ofher European countries
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* A~4347-654-A FUSE BOARD, COMPLETE (F519R: AEP) D905 ~=8-719-200-82 DIODE 11ES2
* A-4347-655-A FUSE BOARD, COMPLETE (F519R:G) D906 §=8-719-200-82 DIODE 11ES2
* A-4347-688-A FUSE BOARD, COMPLETE (F419R:AEP) D907 +=8-719-200-82 DIODE 11ES2
* A-4347-689-A FUSE BOARD, COMPLETE (F419R:G) D810 «= 8-719-987-63 DIODE 1N4148M
2 bb Oki igo kkk doko tok tok tobiojokotok
< FUSE >
* 1-533-213-31 HOLDER, FUSE
AFI 1-532-237-00 FUSE, TIME LAG (T3. 15A) (F519R)
< CAPACITOR > AF1 1-532-286-00 FUSE (T2. 5A) (F419R)
Af2 1-532-286-00 FUSE (12. 5A)
Atl 1-161-741-00 CERAMIC 0.001uF 10% 400V
C708 = =©1-124-126-00 ELECT 47uF 20% 10V < IC >
C709 = 1-124~478-11 ELECT 100uF 20% 25V
C716 = 1-126-233-11 ELECT 22uF 20% 50V 1€902 8-759-231-54 IC TA7806S
C717) 1-126-233~11 ELECT 22uF 20% 50V 1C903 8-759-234-64 IC TA7805S
C723 =: 1-164-094-11 CERAMIC 0.0068uF 10% 25V < TRANSISTOR >
(F419R:G/F519R: 6)
C910 =: 1-124-563-11 ELECT 2200uF 20% 25V Q711 8-729-620-05 TRANSISTOR 2SC2603-EF
0913 1-136-159-00 FILM 0.033uF 5% 50V Q713 8-729-900-63 TRANSISTOR DTA124ES
C914 = 1-164-073-11 CERAMIC 100PF 10% 50V Q900 8-729-620-05 TRANSISTOR 2SC2603-EF
(F419R:G/F519R:G)
< RESISTOR >
< CONNECTOR >
R723. 1-249-393-11 CARBON 10 5% 1/44
* (NPL 1-564-321-00 PIN, CONNECTOR 2P R724 1-249-417-11 CARBON 1K 5% 1/4¥
CNP700 1-566-213-11 PIN, CONNECTOR 4P (CONTROL S OUT) R725 1-249-429-11 CARBON 10K 5% 1/4¥
CNP800 1-691-162-11 PIN, CONNECTOR 5P R735 1-249-419-11 CARBON 1.5K 5% 1/4K
R736 = 1-249-433-11 CARBON 22K 5% 1/4s
< DIODE > R737: 1-249-423-11 CARBON 3.3K 5% 1/4¥
D701 = 8-719-933-39 DIODE HZS6C1L R908 1-247-733-11 CARBON 33 3% 1/24 F 4.19R)
D702 »=- 8-719-200-82 DIODE 11ES2 R908 = 1-247-727-11 CARBON 10 5% 1/24(F S19R)
D727. ~=—- 8-719-987-63 DIODE 1N4148M
D904 = 8-719-200-82 DIODE 11ES2 < RELAY >
ANRY900 §=1-515-516-00 RELAY (F419R)
ANRY900 =1-515-617-11 RELAY (F519R)
< TRANSFORMER >
ANT2 1-449-071-11 TRANSFORMER, POWER
