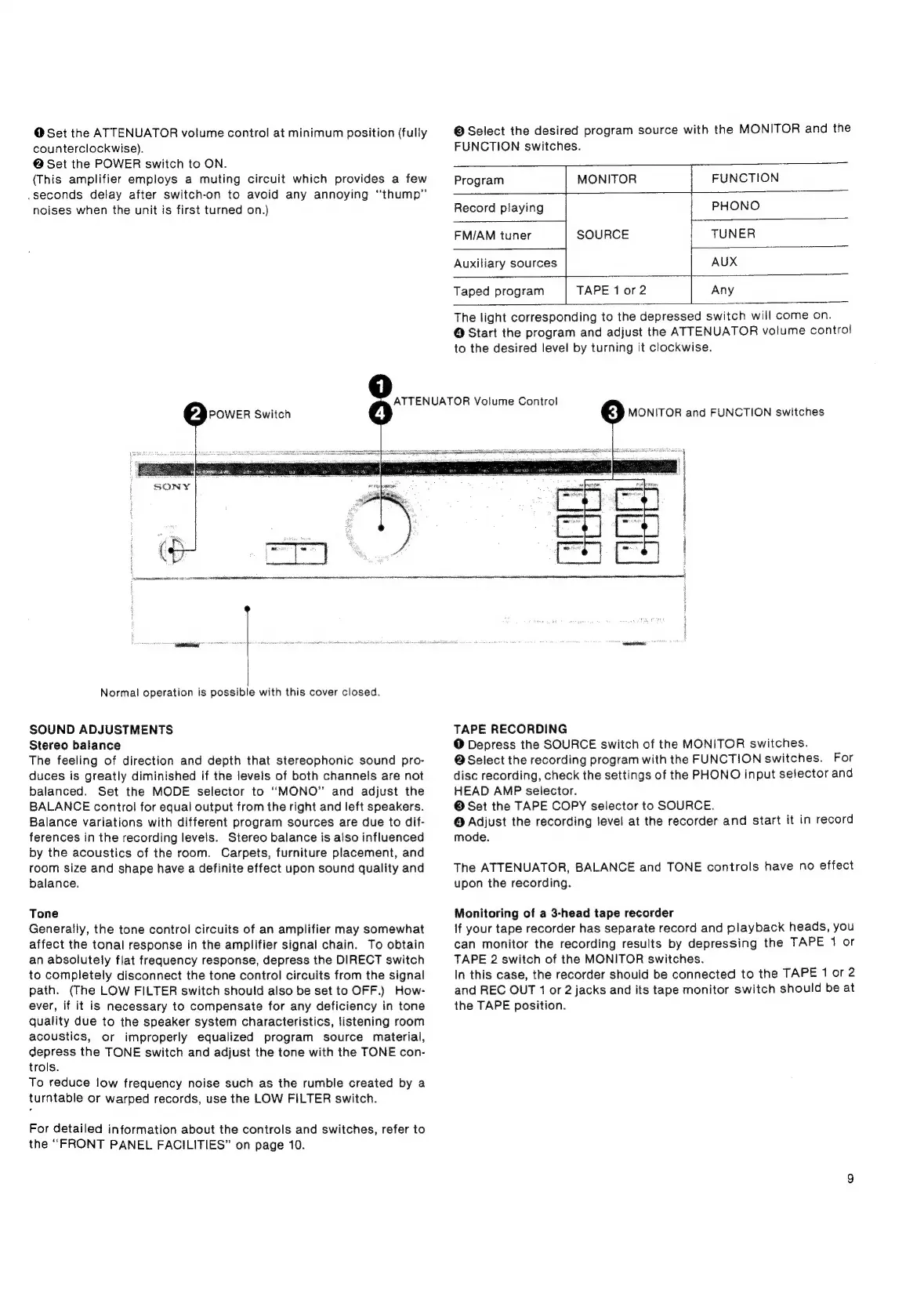

@Set the ATTENUATOR volume control at minimum position (fully
counterclockwise).
@ Set the POWER switch to ON.
(This amplifier employs a muting circuit which provides a few
.seconds delay after switch-on to avoid any annoying “thump”
noises when the unit is first turned on.)
2) POWER Switch
@
Select
the
desired
program
source
with
the
MONITOR
and
the
FUNCTION
switches.
Program MONITOR FUNCTION
Record playing | PHONO
FM/AM tuner SOURCE TUNER
Auxiliary sources AUX
Taped program TAPE 1 or 2 Any
The
light
corresponding
to
the
depressed
switch
will
come
on.
@
Start
the
program
and
adjust
the
ATTENUATOR
volume
control
to
the
desired
level
by
turning
it
clockwise.
ATTENUATOR Volume Control
MONITOR and FUNCTION switches
Normal! operation is possible with this cover closed.
SOUND ADJUSTMENTS
Stereo balance
The feeling of direction and depth that stereophonic sound pro-
duces is greatly diminished if the levels of both channels are not
balanced. Set the MODE selector to “MONO” and adjust the
BALANCE control for equal output from the right and left speakers.
Balance variations with different program sources are due to dif-
ferences in the recording levels. Stereo balance is also influenced
by the acoustics of the room. Carpets, furniture placement, and
room size and shape have a definite effect upon sound quality and
balance.
Tone
Generally, the tone control circuits of an amplifier may somewhat
affect the tonal response in the amplifier signal chain. To obtain
an absolutely flat frequency response, depress the DIRECT switch
to completely disconnect the tone control circuits from the signal
path. (The LOW FILTER switch should also be set to OFF.) How-
ever, if it is necessary to compensate for any deficiency in tone
quality due to the speaker system characteristics, listening room
acoustics, or improperly equalized program source material,
depress the TONE switch and adjust the tone with the TONE con-
trols.
To reduce low frequency noise such as the rumble created by a
turntable or warped records, use the LOW FILTER switch.
For detailed information about the controls and switches, refer to
the “FRONT PANEL FACILITIES” on page 10.
TAPE RECORDING
@ Depress the SOURCE switch of the MONITOR switches.
@
Select
the
recording
program
with
the
FUNCTION
switches.
For
disc
recording,
check
the
settings
of
the
PHONO
input
selector
and
HEAD
AMP
selector.
© Set the TAPE COPY selector to SOURCE.
@
Adjust
the
recording
level
at
the
recorder
and
start
it
in
record
mode.
The ATTENUATOR, BALANCE and TONE controls have no effect
upon the recording.
Monitoring of a 3-head tape recorder
If
your
tape
recorder
has
separate
record
and
playback
heads,
you
can
monitor
the
recording
results
by
depressing
the
TAPE
1
or
TAPE
2
switch
of
the
MONITOR
switches.
In
this
case,
the
recorder
should
be
connected
to
the
TAPE
1
or
2
and
REC
OUT
1
or
2
jacks
and
its
tape
monitor
switch
should
be
at
the
TAPE
position.
