– 13 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearrance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4946-800-1 KNOB (VOL) ASSY
2 X-4947-336-1 KNOB (DIA. 47) ASSY
3 4-980-204-01 KNOB (DIA. 24)
4 X-4946-799-3 PANEL ASSY, FRONT
5 4-963-404-21 EMBLEM (5-A), SONY
6 4-951-620-01 SCREW (2.6X8), +BVTP
* 7 1-659-952-11 AC SW BOARD
8 4-980-199-01 BUTTON (POWER)
* 9 1-659-953-11 HEADPHONE BOARD
* 10 4-980-777-41 CASE (409526)
11 3-704-366-01 SCREW (CASE)(M3X8)
* 12 A-4389-375-A CONTROL BOARD, COMPLETE
13 4-980-189-01 KNOB (DIA. 6)
14 1-773-154-11 WIRE (FLAT TYPE)(21 CORE)

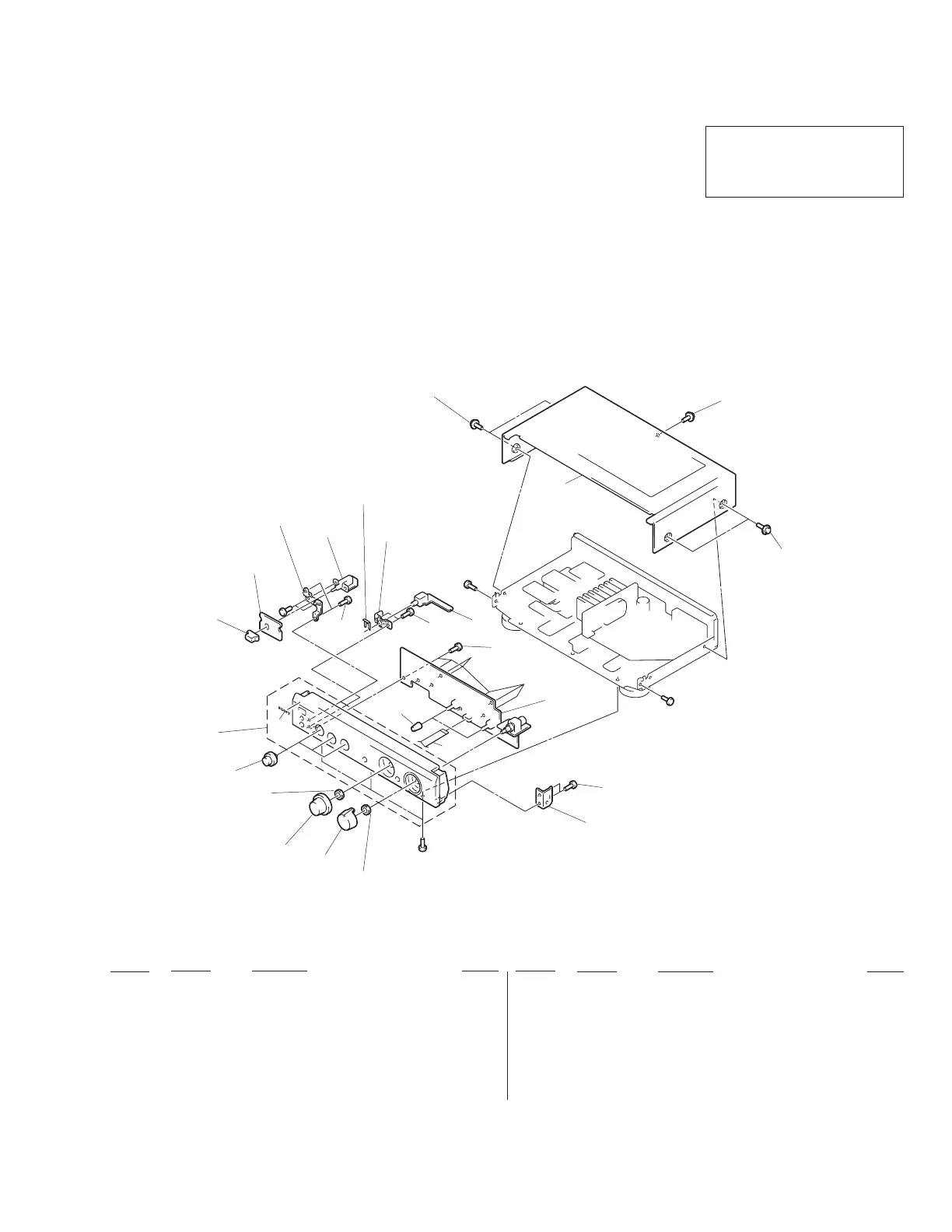

(1) CASE, FRONT PANEL SECTION
11
11
11
8
4
3
2
1
6
12
14
13
6
6
9
10
5
supplied with
S801
supplied with
RV202
not supplied
#1
not supplied
supplied with
J501
#1
#1
7
6
#2
r
A
not supplied
not supplied
SECTION 3
EXPLODED VIEWS
