9 (GB)
Transport and storage conditions
Temperature –10 to +40°C
Humidity 0 to 90%
Pressure 700 to 1060 hPa
Dimensions Approx. 217 × 217 × 352.5 mm (w/
h/d) (8
5
/8 × 8
5
/8 × 14 inches)
(not incl. projecting parts and
controls)
Mass Approx. 8.5 kg (18 lb 12 oz) (not
incl. battery packs)
Accessory supplied
AC power cord (1)
Cable with an 8-pin connector (1)
Operation Manual (1)
Tally plate (1)
AC plug holders (1)

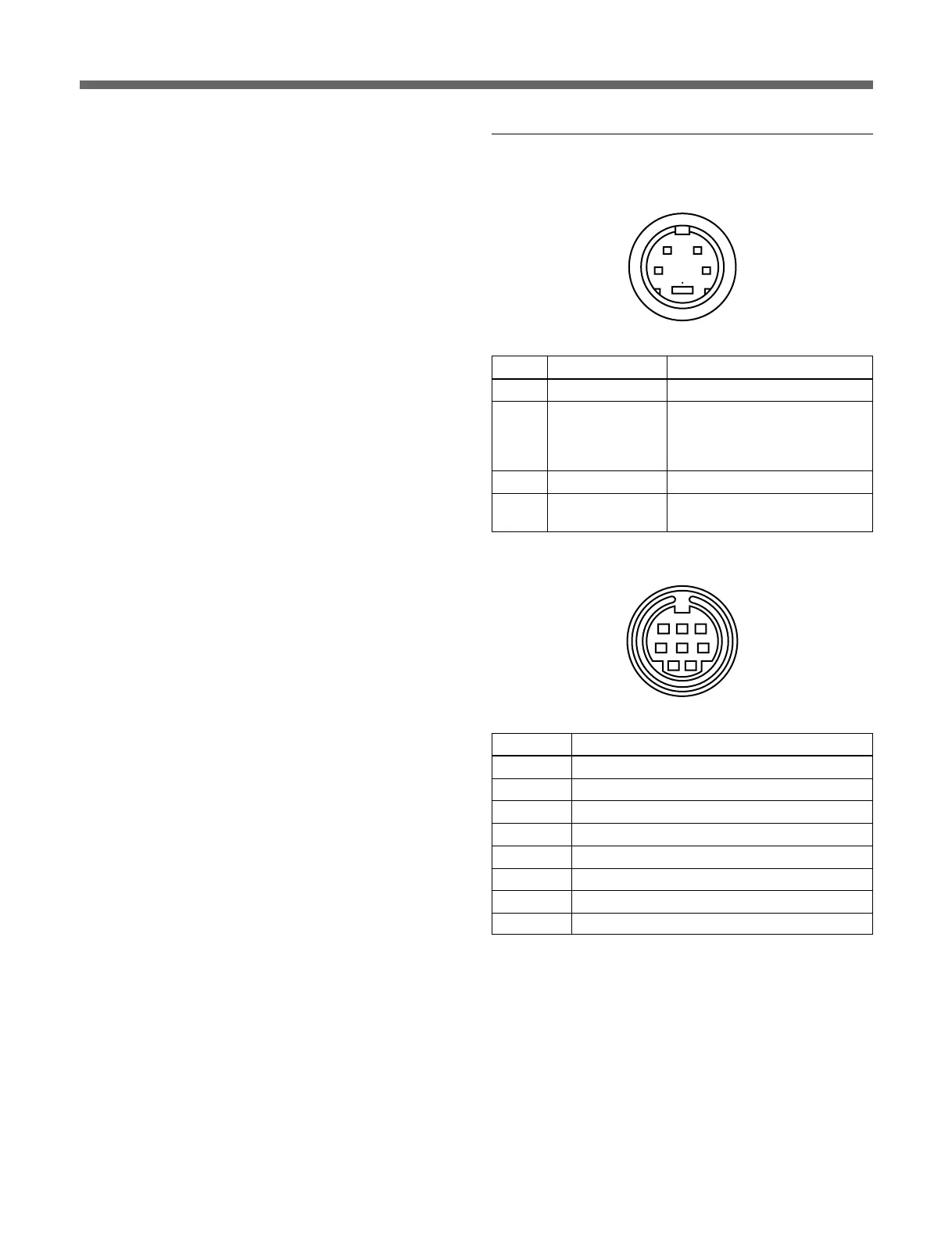

Pin Assignment
Y/C IN connector (4-pin mini DIN)
12
43
Pin No. Signal Description
1 Y-input 1 Vp-p, sync negative, 75 ohms
2 CHROMA 286 mVp-p (NTSC)
sub-carrier-input 300 mVp-p (PAL), burst
Delay time between Y and C:
within 0 ±100 nsec., 75 ohms
3 GND for Y-input GND
4 GND for
GND
CHROMA-input
REMOTE connector (8-pin mini DIN)
12
3
678
45
Pin No. Signal
14 : 3/16 : 9
2 H/V delay
3 GND
4 INT/EXT SYNC
5 Tally
6 Underscan/normal scan
7 A/B or SDI/LINE
8 LINE/RGB
For remote control, connect the pin of the desired
function to pin 3 (GND).
Design and specifications are subject to change
without notice.
