NOTE:
e Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
* Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)... (RED)
t ‘i
Parts color Cabinet’s color
SECTION 6
EXPLODED VIEWS
e The mechanical parts with no reference number
in the exploded views are not supplied.
¢ Accessories and packing materials are given in
the last of this parts list.

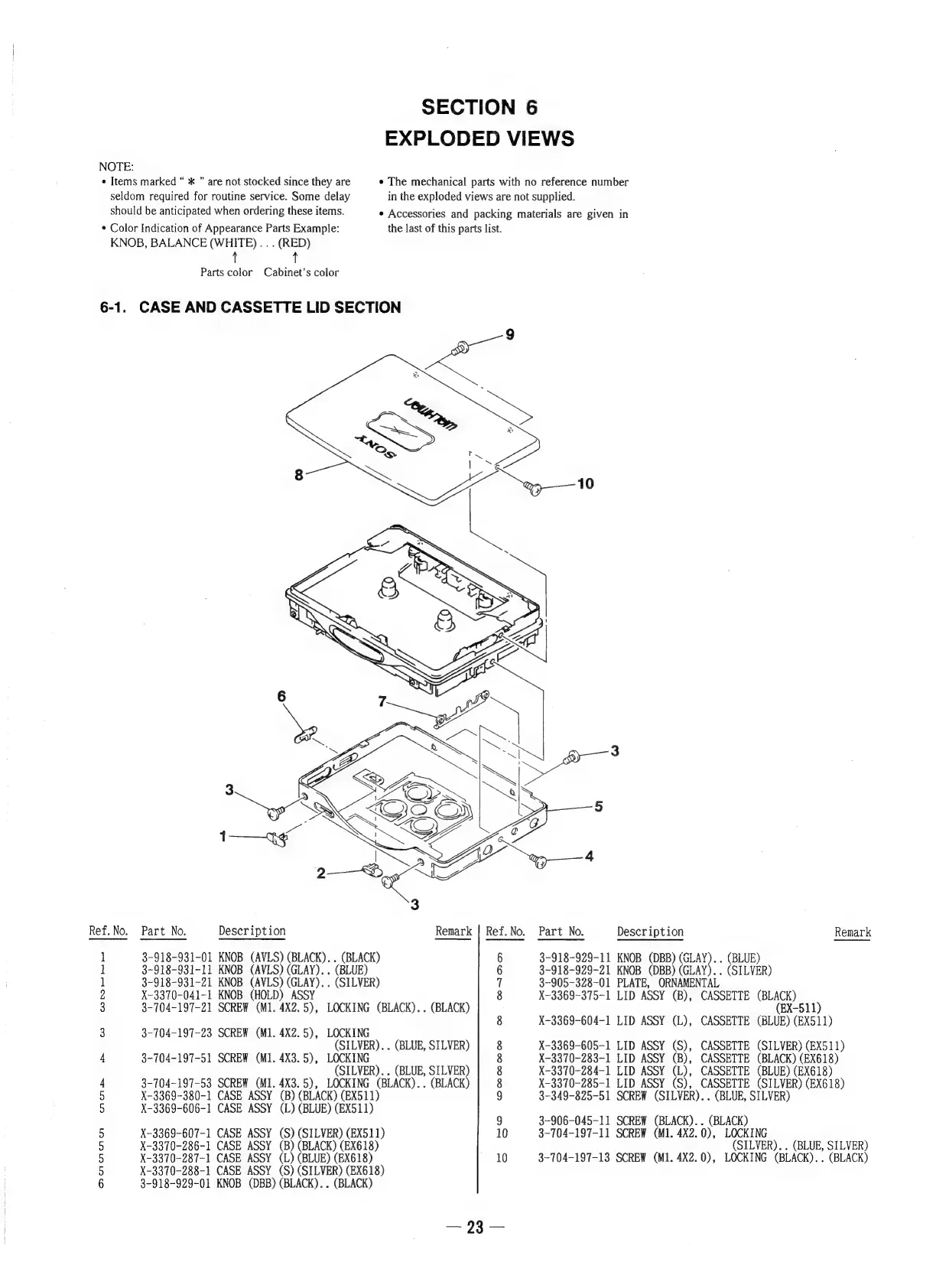

6-1. CASE AND CASSETTE LID SECTION
Ref.No. Part No. Description
X-3370-041-1 KNOB (HOLD) ASSY
Ouwniu1n O10 rc ow (SCR Noe ae oe
3-918-931-01 KNOB (AVLS) (BLACK). . (BLACK)
3-918-931-11 KNOB (AVLS) (GLAY).. (BLUE)
3-918-931-21 KNOB (AVLS) (GLAY).. (SILVER)
3-704-197-21 SCREW (Ml. 4X2.5), LOCKING (BLACK).. (BLACK)
3-704-197-23 SCREW (M1. 4X2.5), LOCKING
(SILVER). . (BLUE, SILVER)
3-704-197-51 SCREW (M1. 4X3.5), LOCKING
(SILVER). . (BLUE, SILVER)
3-704-197-53 SCREW (M1. 4X3.5), LOCKING (BLACK). . (BLACK)
X-3369-380-1 CASE ASSY (B) (BLACK) (EX511)
X-3369-606-1 CASE ASSY (L) (BLUE) (EX511)
X-3369-607-1 CASE ASSY (S) (SILVER) (EX511)
X-3370-286-1 CASE ASSY (B) (BLACK) (EX618)
X-3370-287-1 CASE ASSY (L) (BLUE) (EX618)
X-3370-288-1 CASE ASSY (S) (SILVER) (EX618)
3-918-929-01 KNOB (DBB) (BLACK). . (BLACK)
Remark | Ref.No. Part No.
hm CO <O OO CO 00 OO [oe] Co SIO >
ra
mo ©
Description
Remark
3-918-929-11 KNOB (DBB) (GLAY).. (BLUE)
3-918-929-21 KNOB (DBB) (GLAY).. (SILVER)
3-905-328-01 PLATE, ORNAMENTAL
X-3369-375-1 LID ASSY (B),
X-3369-604-1 LID ASSY (L),
X-3369-605-1 LID ASSY (S),
X-3370-283-1 LID ASSY (B),
X-3370-284-1 LID ASSY (L),
X-3370-285-1 LID ASSY (S),
3-349-825-51 SCREW (SILVER). . (BLUE, SILVER)
3-906-045-11 SCREW (BLACK). . (BLACK)
3-704-197-11 SCREW (M1. 4X2. 0), LOCKING
CASSETTE (BLACK)
_ (EX-511)
CASSETTE (BLUE) (EX511)
CASSETTE (SILVER) (EX511)
CASSETTE (BLACK) (EX618)
CASSETTE (BLUE) (EX618)
CASSETTE (SILVER) (EX618)
(SILVER). . (BLUE, SILVER)
3-704-197-13 SCREW (M1. 4X2.0), LOCKING (BLACK). . (BLACK)
