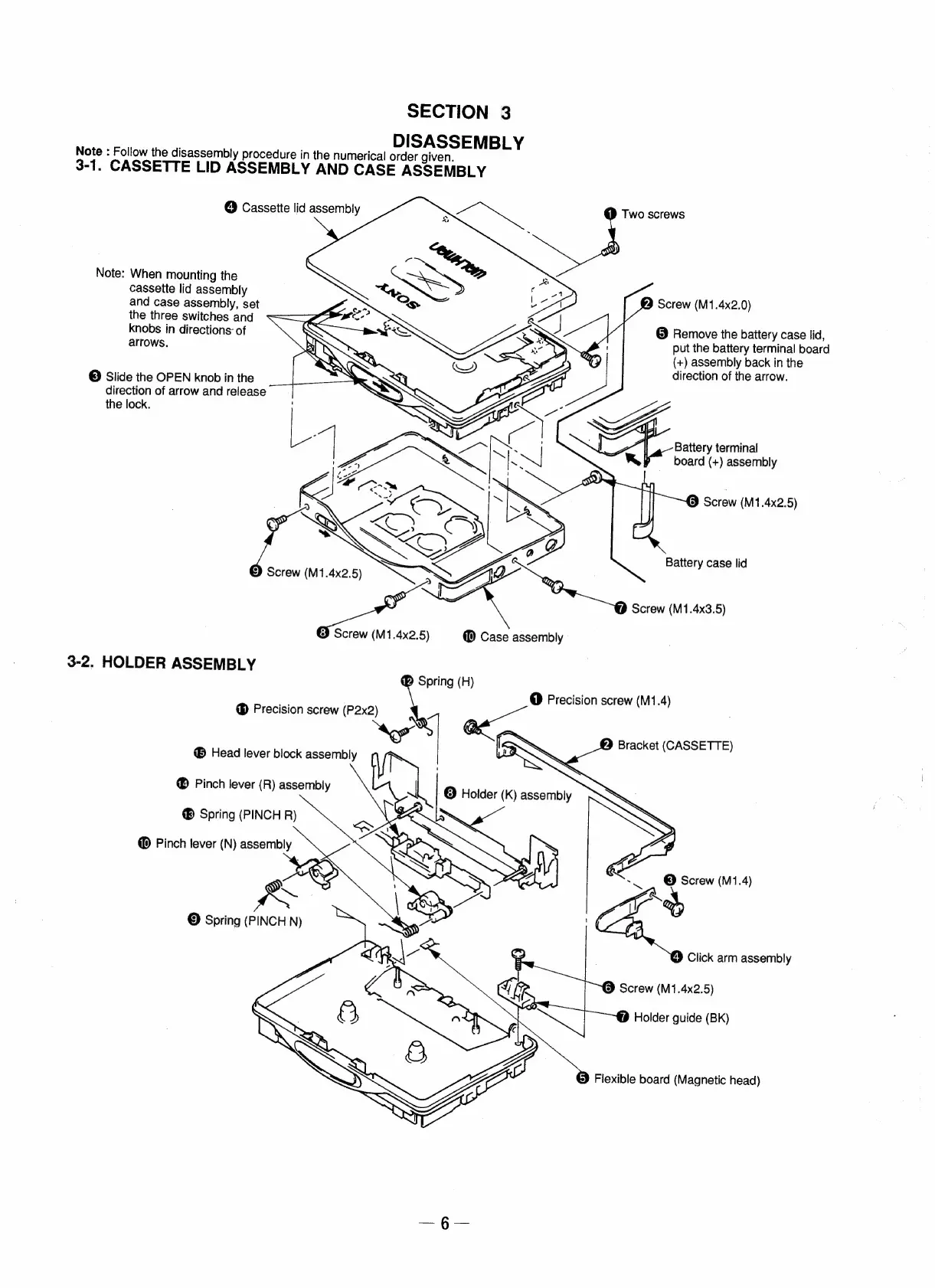

SECTION 3
DISASSEMBLY
Note
:
Follow
the
disassembly
procedure
in
the
numerical
order
given.
3-1.
CASSETTE
LID
ASSEMBLY
AND
CASE
ASSEMBLY
. Gi Two screws
va ea
—
=
a
© Cassette lid assembly
Note:
When
mounting
the
cassette
lid
assembly
and
case
assembly,
set
the
three
switches
and
knobs
in
directions:
of
arrows.
Screw (M1.4x2.0)
@ Remove the battery case lid,
put the battery terminal board
(+) assembly back in the
direction of the arrow.
@ Slide the OPEN knob in the
direction of arrow and release
the
lock.
|
;
Cs
Battery terminal
board (+) assembly
Screw (M1.4x2.5)
Battery case lid
Screw (M1.4x3.5)
Screw
(M1.4x2.5)
@®
Case
assembly
3-2.
HOLDER
ASSEMBLY
Spring (H)
© Precision screw (M1.4)
@® Precision screw (P2x2)
Bracket (CASSETTE)
® Head lever block assembly
®
Pinch
lever
(R)
assembly
(K)
assembly
|
Re Holder
® Spring (PINCH R) ~
@ Pinch lever (N) assembly
© Screw (M1.4)
Cee
© Spring (PINCH N)
Click arm assembly
Screw (M1.4x2.5)
Holder guide (BK)
Flexible board (Magnetic head)
