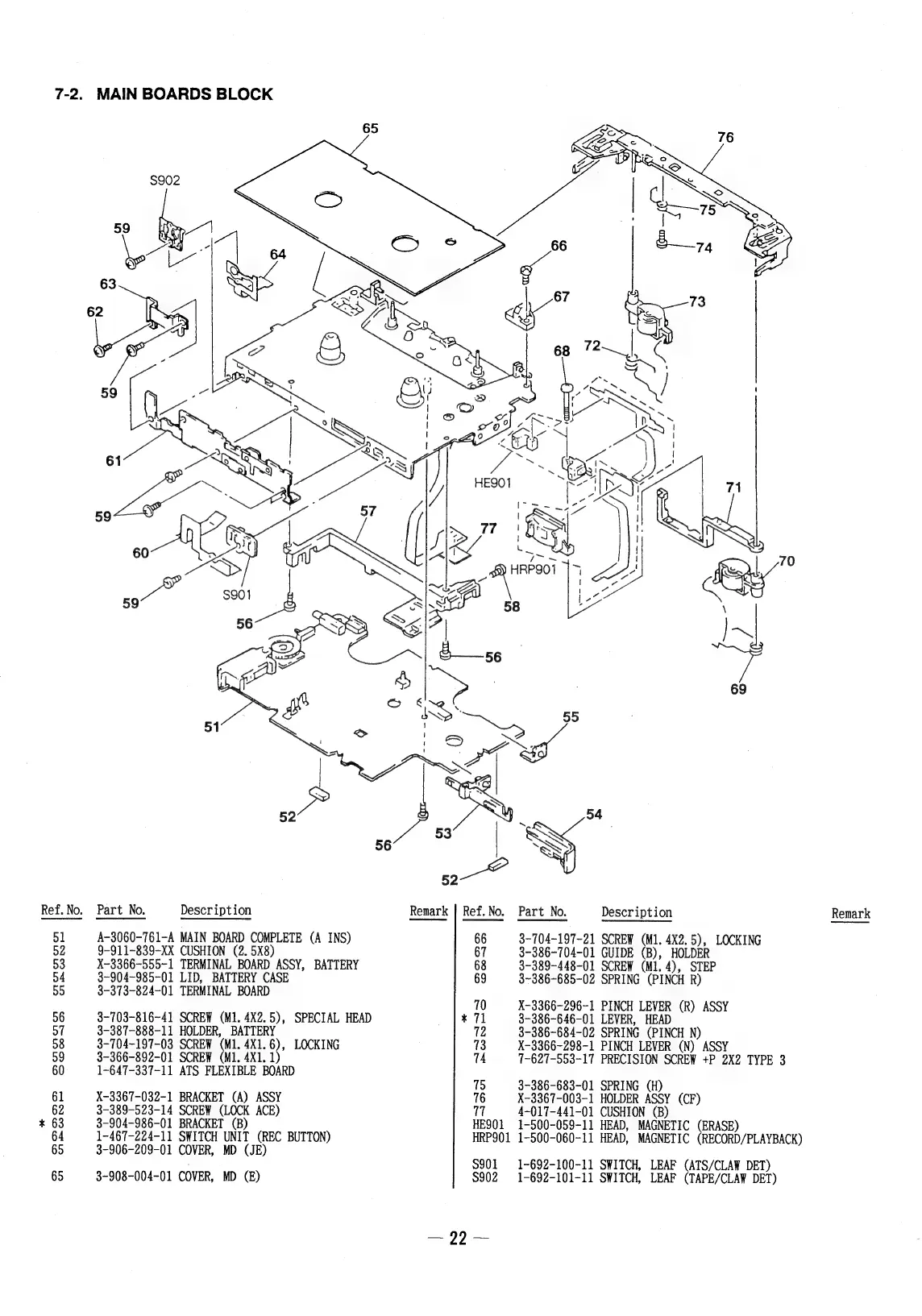

7-2. MAIN BOARDS BLOCK
Ref. No. Part No.
Description
A-3060-761-A MAIN BOARD COMPLETE (A INS)
9-911-839-XX CUSHION (2. 5X8)
X-3366-555-1 TERMINAL BOARD ASSY, BATTERY
3-904-985-01 LID, BATTERY CASE
3-373-824-01 TERMINAL BOARD
3-703-816-41 SCREW (M1. 4X2.5), SPECIAL HEAD
3-387-888-11 HOLDER, BATTERY
3-704-197-03 SCREW (M1. 4X1.6), LOCKING
3-366-892-01 SCREW (M1. 4X1. 1)
1-647-337-11 ATS FLEXIBLE BOARD
X-3367-032-1 BRACKET (A) ASSY
3-389-523-14 SCREW (LOCK ACE)
3-904-986-01 BRACKET (B)
1-467-224-11 SWITCH UNIT (REC BUTTON)
3-906-209-01 COVER, MD (JE)
3-908-004-01 COVER, MD (E)
52
Remark | Ref. No.
67
HE901
HRP901
9901
9902
Part No.
Description Remark
3-704-197-21 SCREW (M1. 4X2.5), LOCKING
3-386-704-01 GUIDE (B), HOLDER
3-389-448-01 SCREW (M1. 4), STEP
3-386-685-02 SPRING (PINCH R)
X-3366-296-1 PINCH LEVER (R) ASSY
3-386-646-01 LEVER, HEAD
3-386-684-02 SPRING (PINCH N)
X-3366-298-1 PINCH LEVER (N) ASSY
1-627-553-17 PRECISION SCREW +P 2X2 TYPE 3
3-386-683-01 SPRING (H)
X-3367-003-1 HOLDER ASSY (CF)
4-017-441-01 CUSHION (B)
1-500-059-11 HEAD, MAGNETIC (ERASE)
1-500-060-11 HEAD, MAGNETIC (RECORD/PLAYBACK)
1-692-100-11 SWITCH, LEAF (ATS/CLAW DET)
1-692-101-11 SWITCH, LEAF (TAPE/CLAW DET)
