Sony XR-55A80K - Wire Dressing

15
INFORMATION

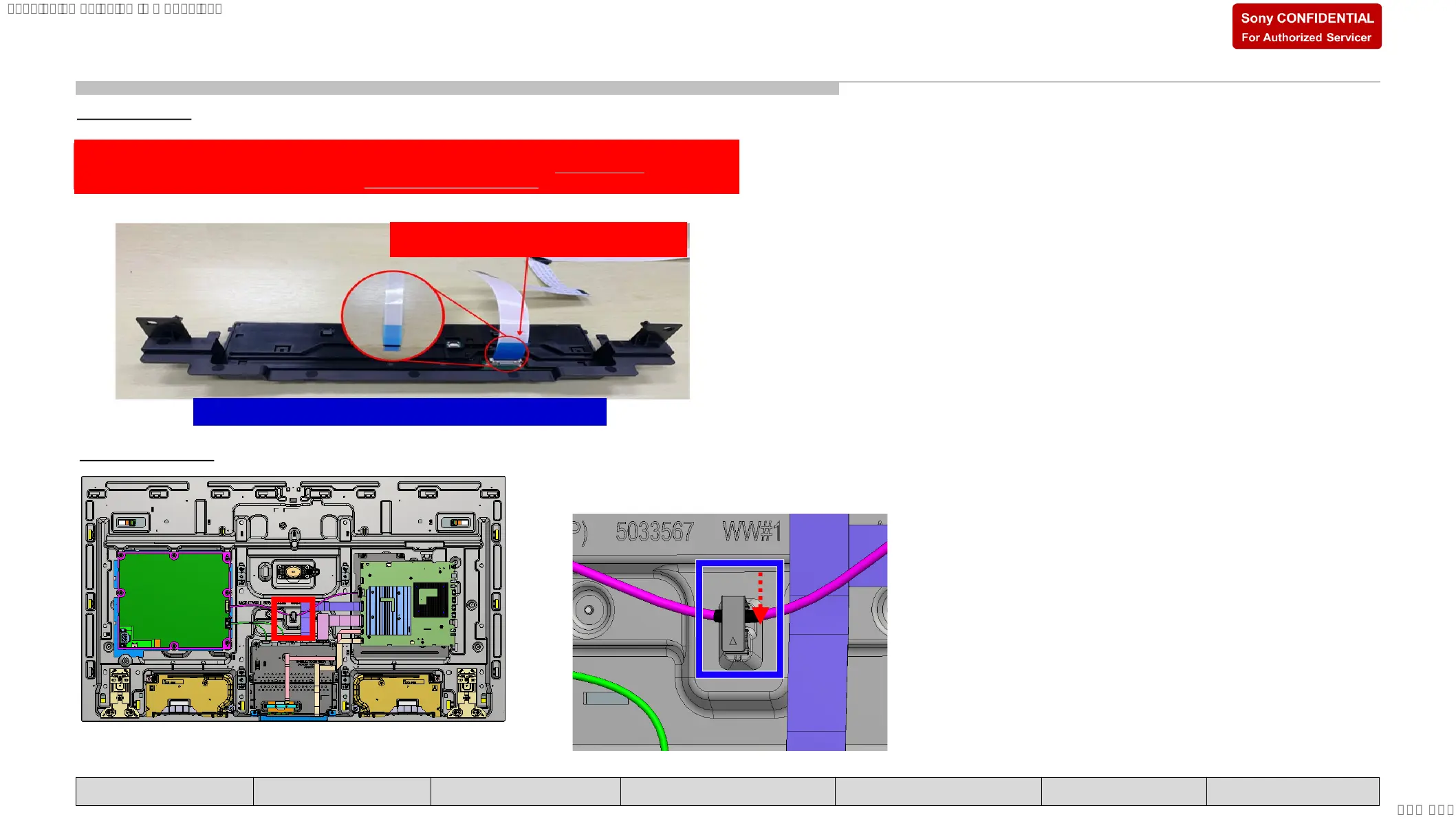

WIRE DRESSING
FFC side with blue supporting tape face connector
with locking during insertion.
Caution:
1. Operator need to fix Smart Core on FLAT surface before FFC insertion to ensure FFC STRAIGHT insertion.
2. FFC side with blue supporting tape, must face CONNECTOR WITH LOCKING during FFC insertion.
After assemble Receiver board to Smart Core, operator need to insert Receiver board FFC in straight condition.
Smart Core is placed on FLAT surface during FFC insertion.
15
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SMART CORE APPENDIX
1-3. WIRE DRESSING
SECTION 1: XR-55A8*K
