Sony XR-55A80K - Smart Core; Disassembly and Removal Caution

64

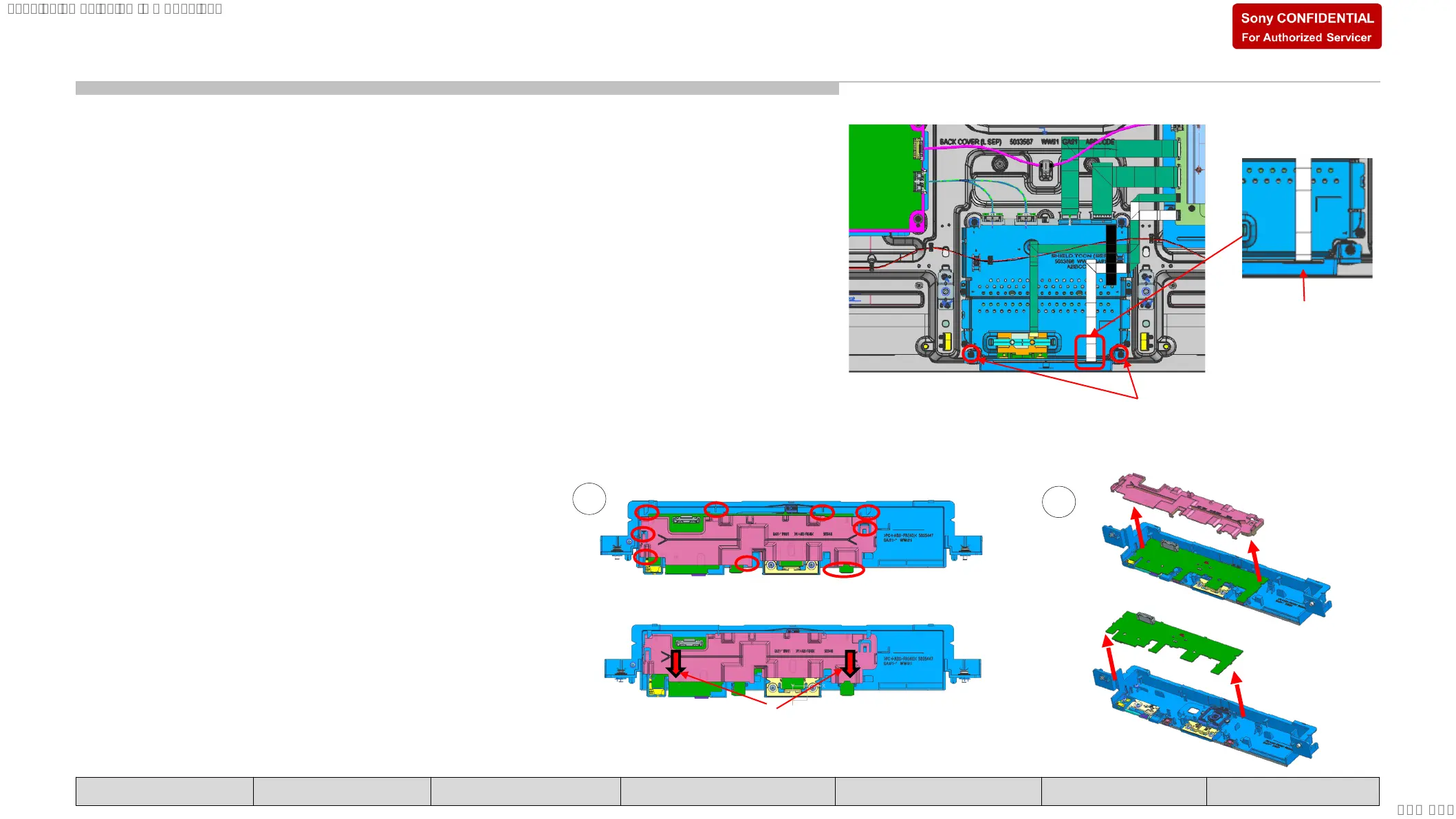

1. Remove harness in red circles.
2. Release FFC in red box.
3. Remove the smart core.
DISASSEMBLE COVER TOP
Remove the hooks in the following order.
① Lift the hook in red circle and slide it.
② Hold the area in the red box and lift the receiver board.
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SMART CORE APPENDIX
Remove screws
Remove FFC
Slide Cover Top
Confirm all hooks area released
1
2
DISASSEMBLY AND REMOVAL CAUTION
SMART CORE
