XR-C5110R/C5120R
– 29 –
– 30 –
• Semiconductor
Location
Ref. No. Location
D362 H-2
D601 C-1
D651 F-2
D671 C-4
D672 E-2
D673 E-2
D674 D-4
IC611 A-9
IC671 E-2
Q631 J-2

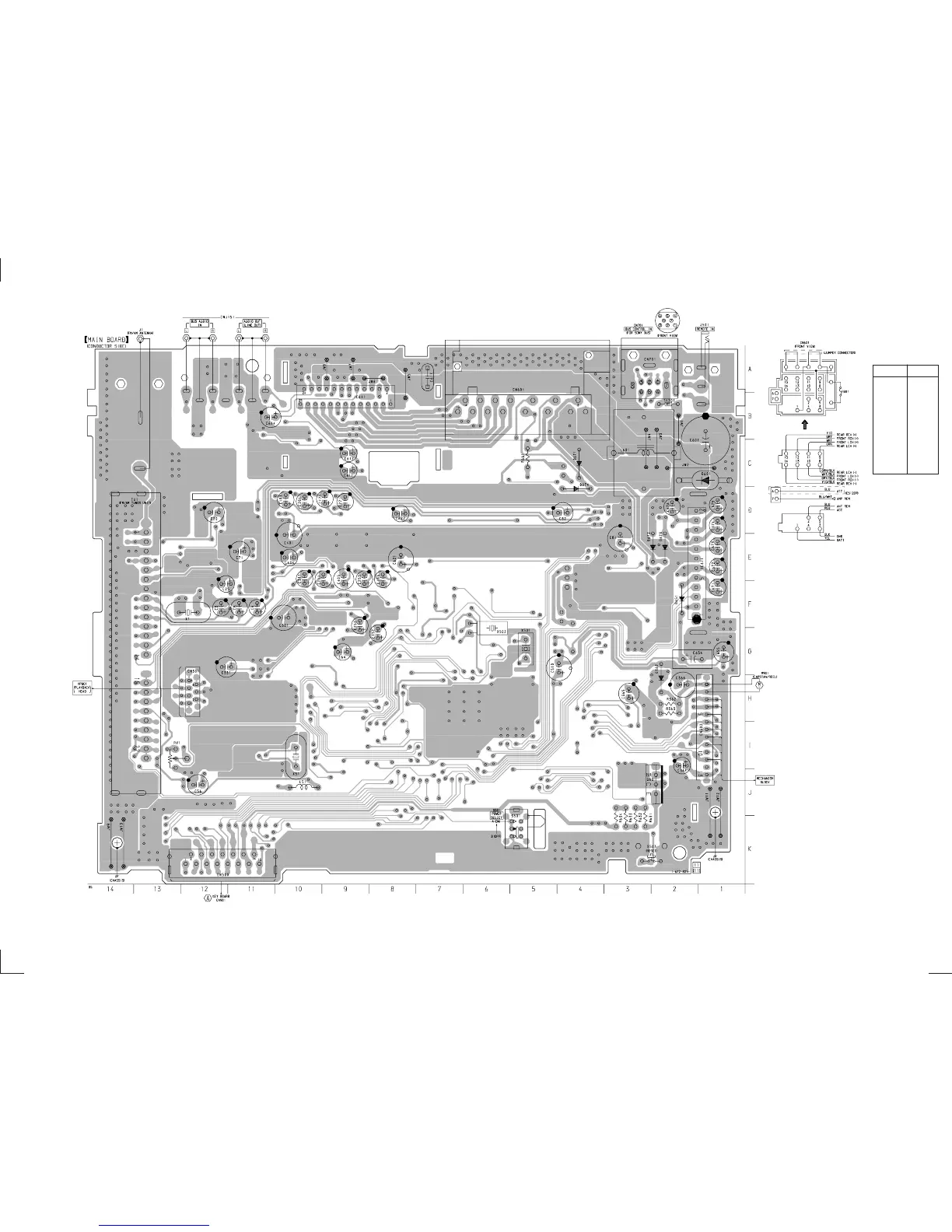

6-6. PRINTED WIRING BOARD – MAIN Board (Conductor Side) –
(Page 36)
