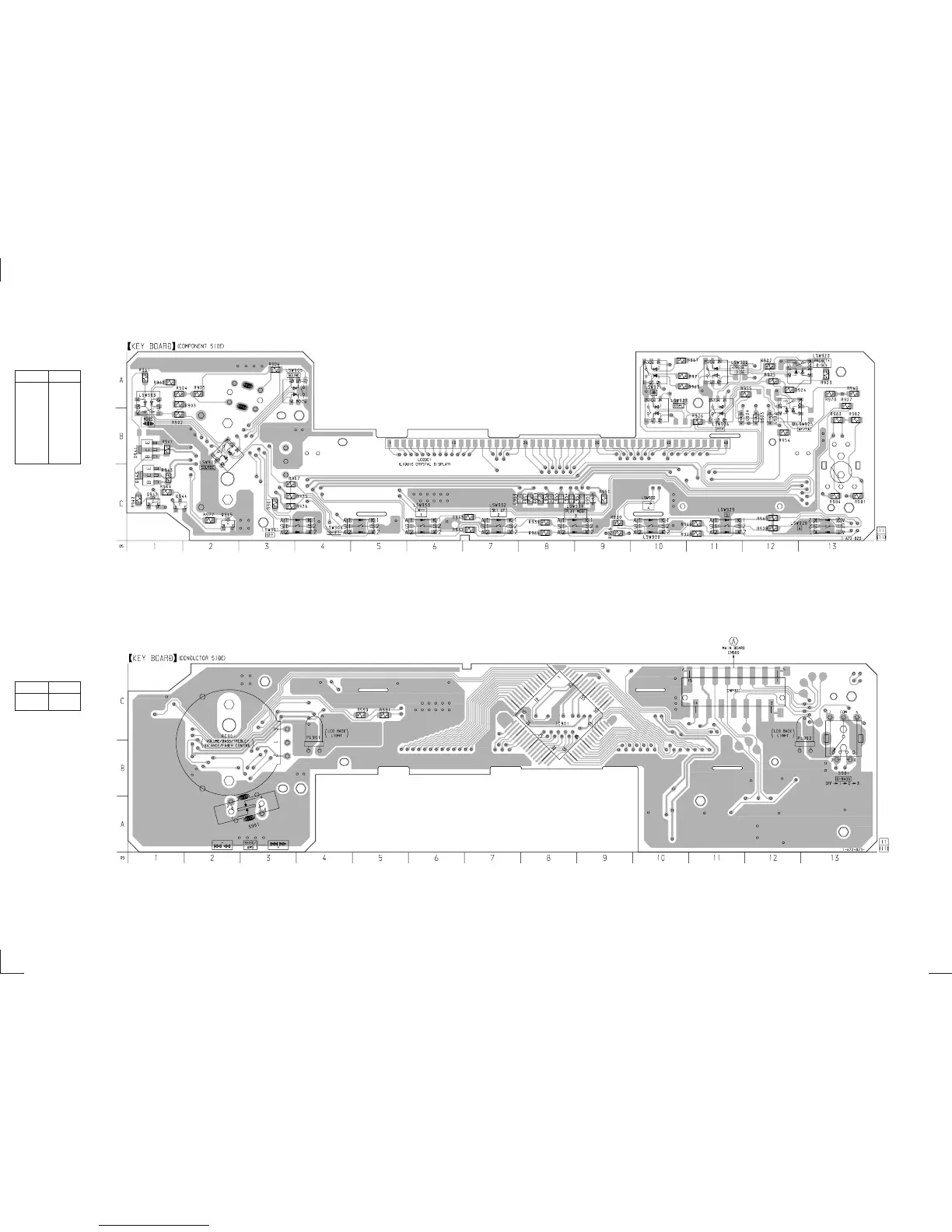

XR-C5110R/C5120R
– 35 –
– 36 –
•
Semiconductor
Location
(Component Side)
Ref. No.
Location
D902
B-12
D903
B-12
D904
B-11
D951
C-9
Q941
B-1
Q942
C-1
Q943
C-1
Q944
C-1
Q945
C-2
•
Semiconductor
Location
(Conductor Side)
Ref. No.
Location
IC901
C-8
6-9.
PRINTED
WIRING BO
ARD – P
ANEL Section –
(Page 29)
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
2 Disassembly
10
3 Assembly of Mechanism Deck
11
4 Mechanical Adjustments
14
5 Electrical Adjustments
14
6 Diagrams
18
Block Diagram - TUNER Section
18
Block Diagram - TAPE/MAIN Section
19
BLOCK DIAGRAM - DISPLAY/KEY CONTROL/BUS CONTROL/POWER SUPPLY Section
20
Note for Printed Wiring Boards and Schematic Diagrams
21
MAIN Board (Component Side)
21
Printed Wiring Board - MAIN Board (Conductor Side)
23
Schematic Diagram - MAIN Section (1/2)
24
Schematic Diagram - MAIN Section (2/2)
25
Printed Wiring Board - PANEL Section
26
Schematic Diagram - PANEL Section
27
IC Pin Function Description
30
7 Exploded Views
34
8 Electrical Parts List
37
