Sony XVS-9000 Technical Guide

13

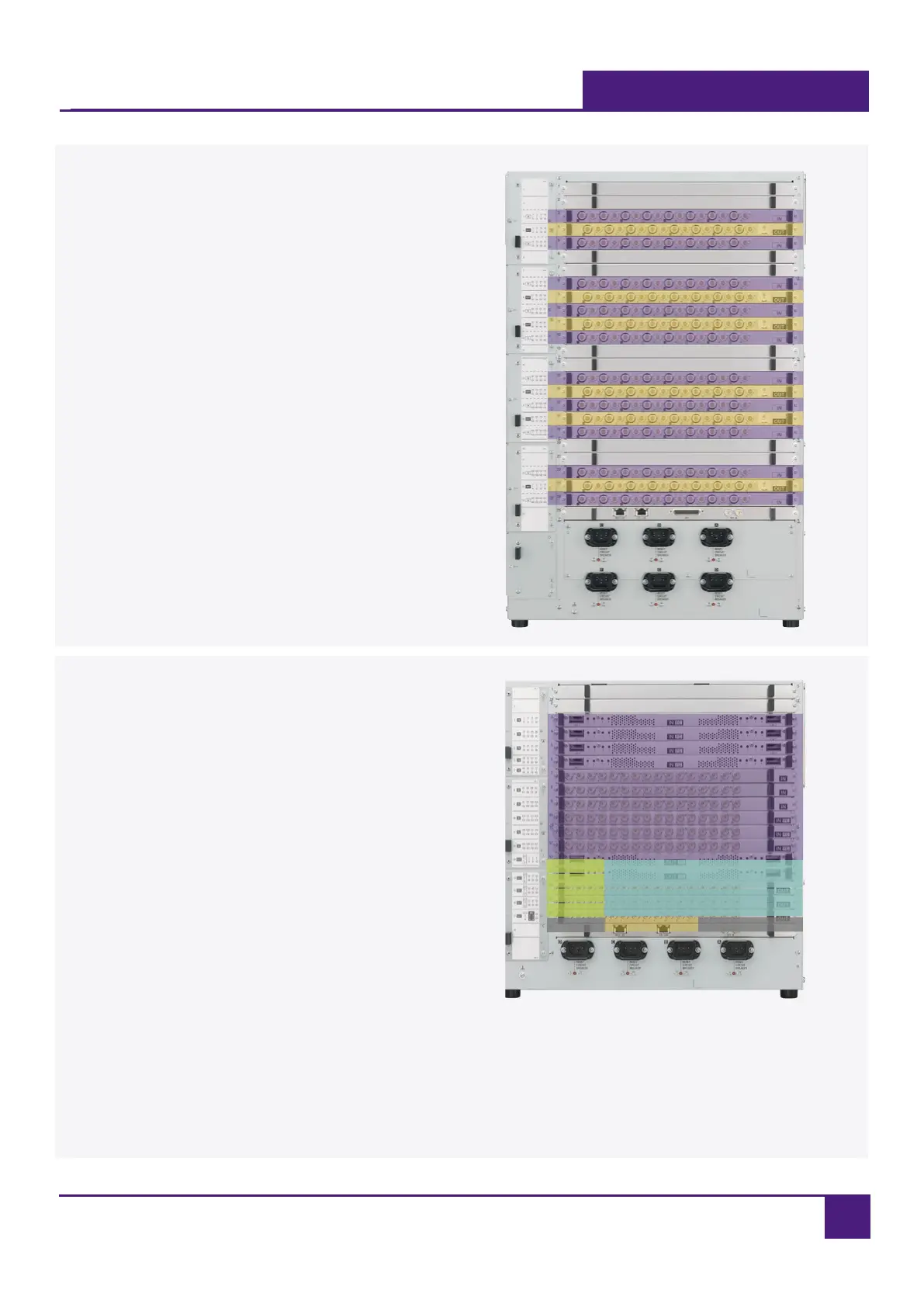

Configuration Options
XVS-9000
The XVS-9000 can be configured as follows:
• Up to 10 I/P boards – max 160 (HD) or
80 (UHD) inputs
• Up to 6 O/P boards – max 80 (HD) or
40 (UHD) outputs
• The final board provides four multiviewer outputs
in HD or UHD
IP Mode
• Up to four ST 2110 IP cards
• Up to six ST2110 Bi directional IP cards
XVS-8000
The XVS-8000 can be configured as follows:
• Up to 10 I/P boards – max 160 (HD) or
40 (UHD) inputs
• Up to 5 O/P boards – max 48 (HD) or
12 (UHD) outputs
• In addition to the boards above, the two
dedicated I/O slots at the top of the frame allow
4 UHD direct inputs to the M/E subkeyers,
plus 4 UHD dedicated outputs for internally
generated M/E output signals
• Each of the four O/P cards provides 12 (HD) or
3 (UHD) outputs plus 4 (HD) or 1 (UHD) format
convertor outputs
• The final board provides two multiviewer outputs
in HD or UHD
PRIMARY INPUTS
(1-160)
FC O/P 1-4
FC O/P 5-8
FC O/P 9-12
FC O/P 13-16
Assignable O/P 1-12
Assignable O/P 13-24
Assignable O/P 25-36
Assignable O/P 37-48
Spare
Spare
MV OUT (1-2)
PRIMARY INPUTS
PRIMARY INPUTS
PRIMARY INPUTS
PRIMARY INPUTS
OUTPUTS
OUTPUTS
OUTPUTS
OUTPUTS (MULTI VIEWER)
OUTPUTS
OUTPUTS
PRIMARY INPUTS
PRIMARY INPUTS
PRIMARY INPUTS
PRIMARY INPUTS
PRIMARY INPUTS
PRIMARY INPUTS
When configuring XVS-9000 I/O please refer
to your local Sony product specialist.
