NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Abbreviation
CND : Canadian
IT : Italian
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
SECTION 8
EXPLODED VIEWS
— 64 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
4
3
2
9
8
1
5
6
7
11
12
16
5
13
19
10
14
17
18
15
#1
#3
#5
#4
#5
#5
#5
#2
#2
#1
#1
20

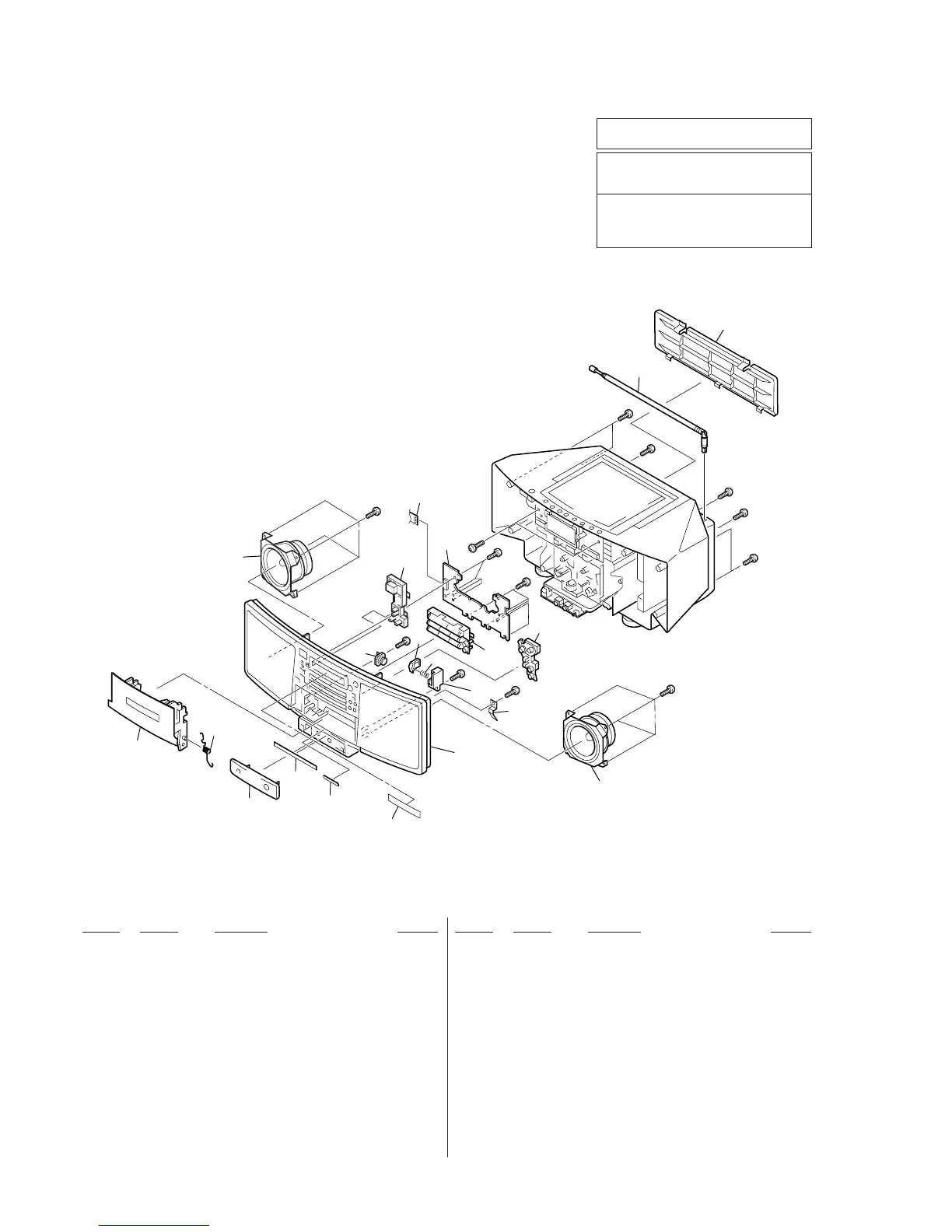

8-1. FRONT CABINET SECTION
1 X-3376-357-1 CABINET SUB ASSY, FRONT
2 X-3376-361-1 HOLDER SUB ASSY, JACK
3 3-017-465-01 SPRING, CASSETTE OPEN
4 X-3375-359-1 HOLDER SUB ASSY, CASSETTE
5 1-505-742-11 SPEAKER (8CM)
6 1-501-480-11 ANTENNA, TELESCOPIC
7 3-017-470-01 LID, BATTERY CASE
8 3-017-473-01 WINDOW, AZIMUTH
9 3-017-877-11 PLATE (P), JACK
* 10 A-3321-154-A SWITCH BOARD, COMPLETE (US,CND,E)
* 10 A-3321-191-A SWITCH BOARD, COMPLETE (AEP,IT,UK)
* 11 3-017-462-01 BRACKET, JACK
12 3-351-377-11 GEAR, DAMPER
13 3-017-456-41 BUTTON, POWER (US,E)
13 3-017-456-51 BUTTON, POWER (AEP,UK)
14 X-3376-363-1 BUTTON SUB ASSY, CONTROL
15 3-017-457-11 BUTTON, VOLUME
* 16 3-017-461-01 BRACKET, OP/CLOSE
17 3-939-030-01 CATCHER, PUSH
18 3-939-031-01 SPRING, PUSH CATCHER RETURN
19 1-782-632-11 WIRE, PARALLEL (FFC) (12 CORE)
20 X-3374-296-1 WINDOW SUB ASSY, LCD
3-014-503-01 FOOT
* 3-703-044-26 LABEL, CAUTION (US,CND)
3-839-640-00 CUSHION
Ver 1.2 1999.10
To Next Page
